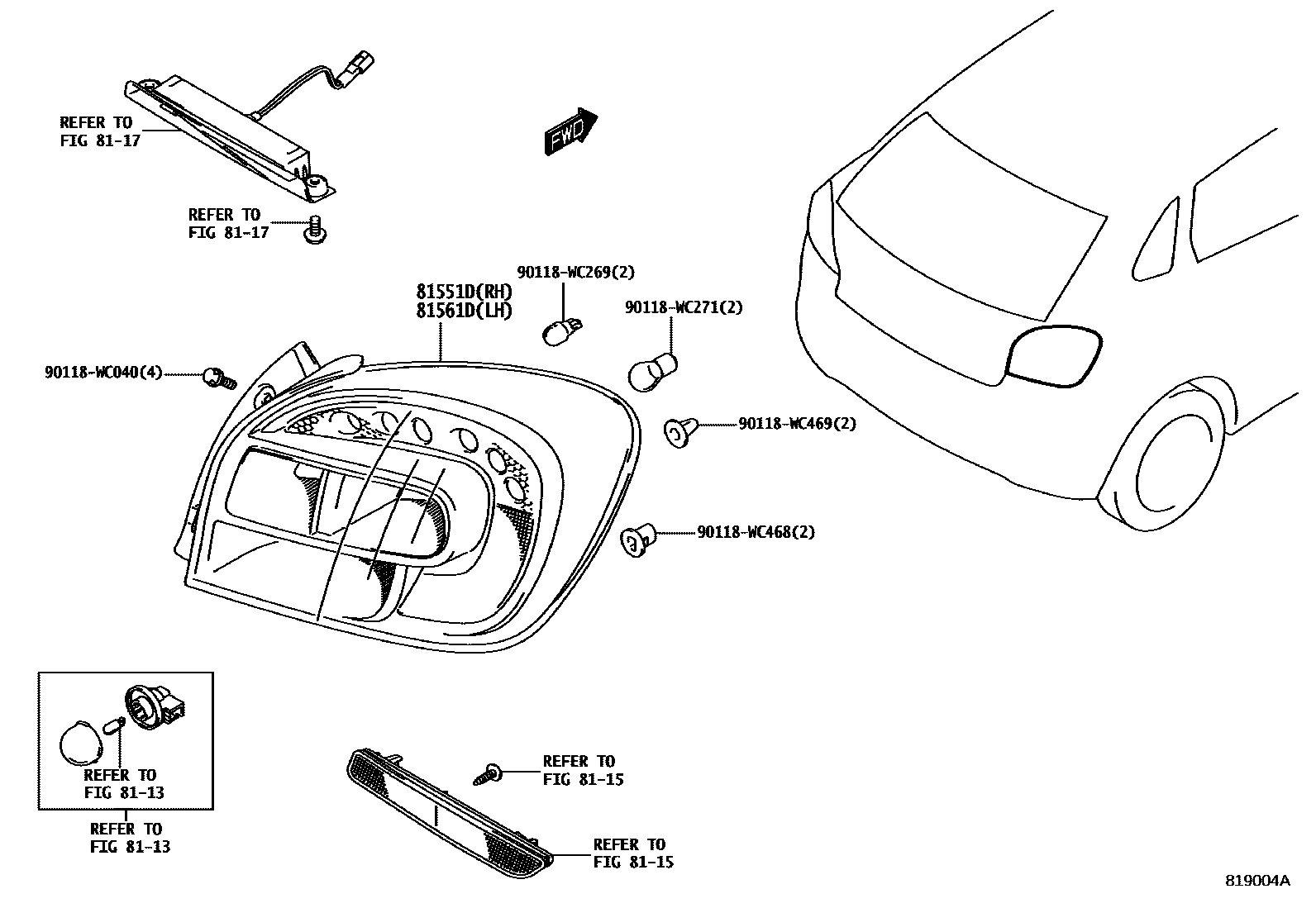

REAR COMBINATION LAMP

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8117CENTER STOP LAMP

→ Go to FIG 81-17

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-WC001iK12M..5F..G201909

POS.2

main81551-WC002iK12M..5F..V; K12M..CVT..V201904

POS.3; POS.5

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-WC001iK12M..5F..G201909

POS.2

main81561-WC002iK12M..5F..V; K12M..CVT..V201904

POS.3; POS.5

90118WC040

main90118-WC040

90118WC269

main90118-WC269

90118WC271

main90118-WC271

90118WC468

main90118-WC468

90118WC469

main90118-WC469

10 parts on this diagram · 1 diagram in section
