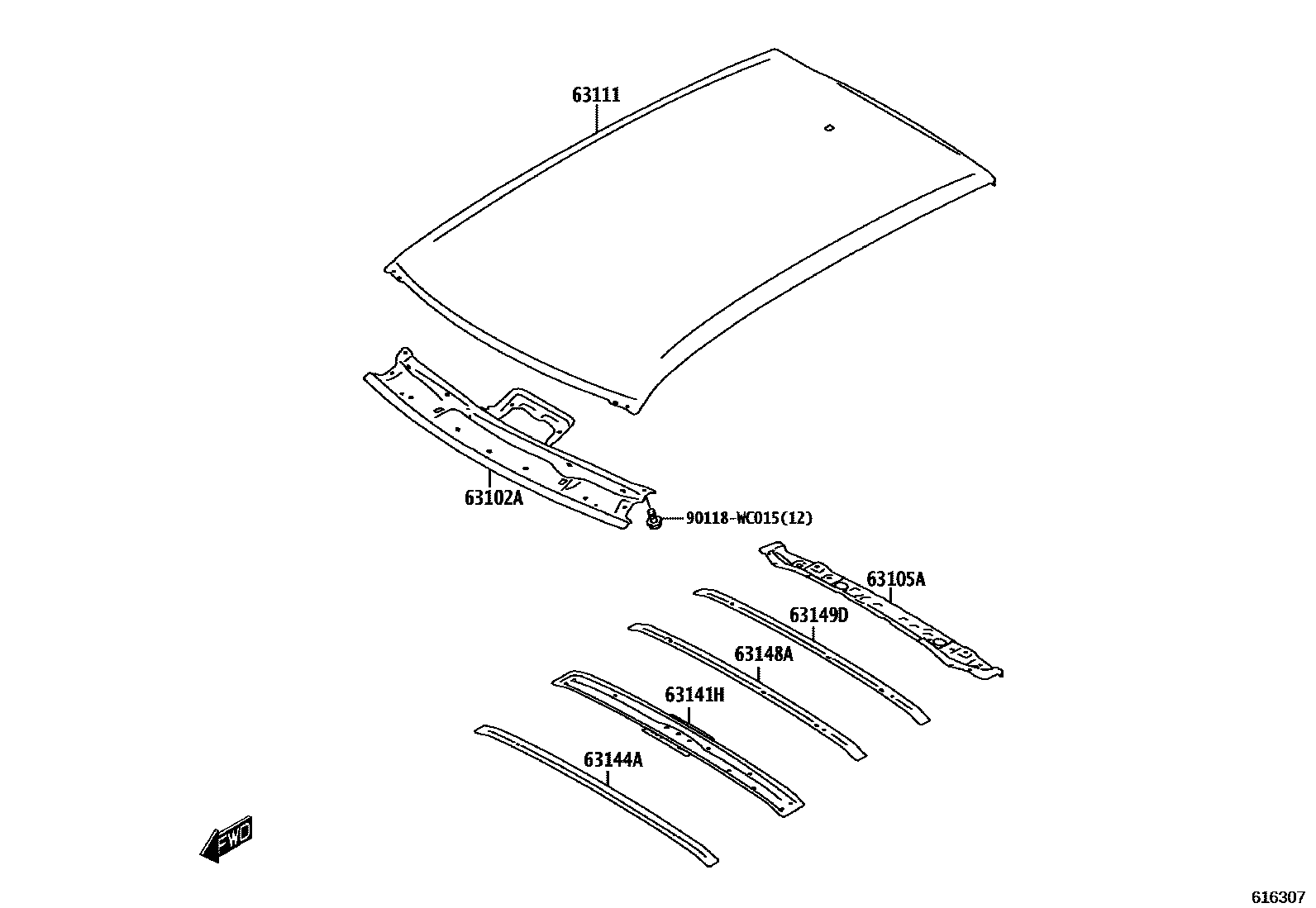

ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63146-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

63111PANEL, ROOF

main63111-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63103-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63143-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63144-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63145-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

90118WC015

main90118-WC015

8 parts on this diagram · 1 diagram in section
