BRAKE TUBE & CLAMP

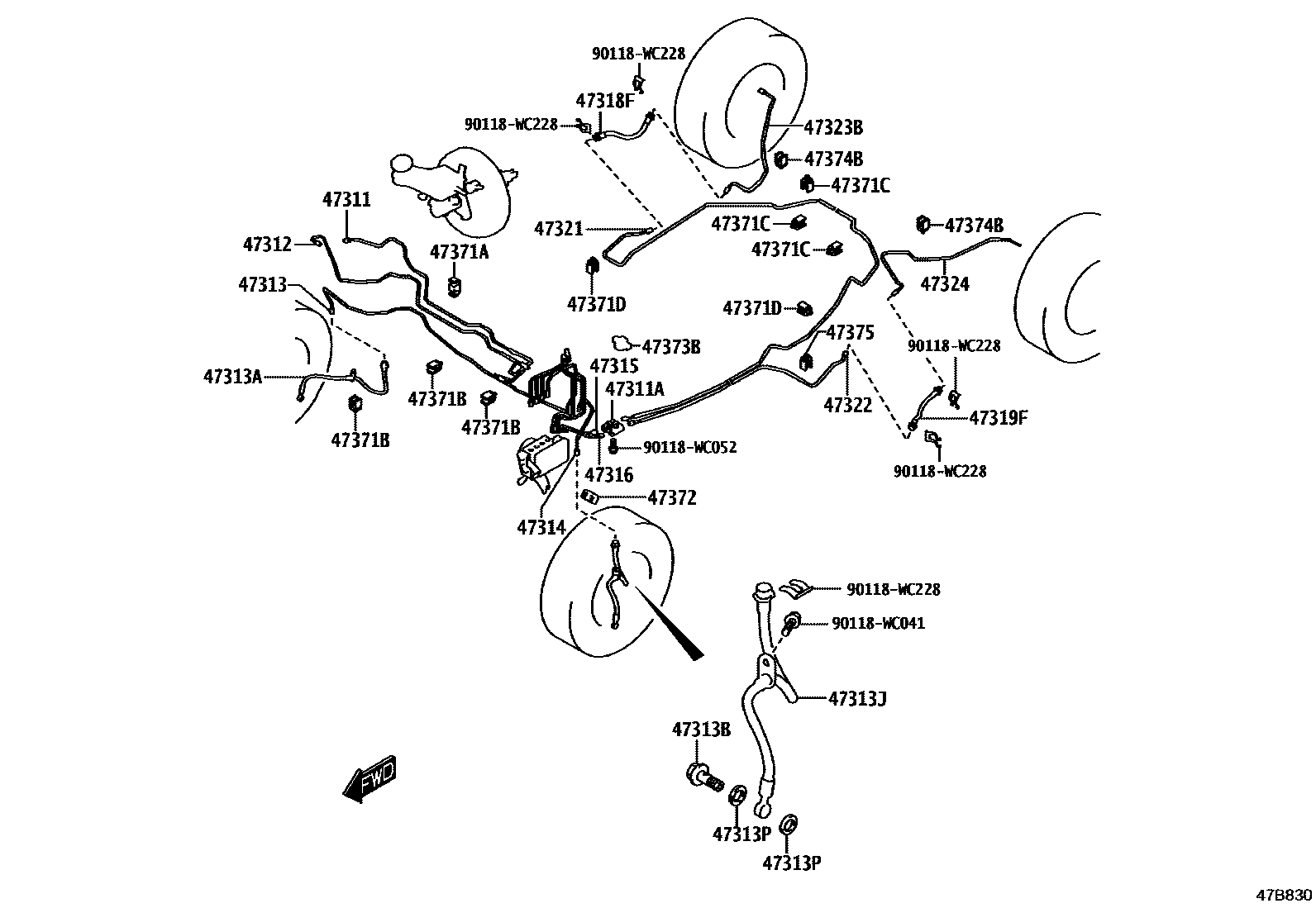

Parts diagram
47311TUBE, FRONT BRAKE, NO.1
main47311-WC001i201904
POS.1; POS.3; POS.4; POS.5
47311AWAY(FOR FRONT BRAKE TUBE)
main90118-WC547i201904
POS.1; POS.3; POS.4; POS.5
47312TUBE, FRONT BRAKE, NO.2
main47312-WC001i201904
POS.1; POS.3; POS.4; POS.5
47313TUBE, FRONT BRAKE, NO.3
main47313-WC001i201904
POS.1; POS.3; POS.4; POS.5
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
main90118-WCB58i201904
POS.1; POS.3; POS.4; POS.5
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
main90118-WC545×2i201904
POS.1; POS.3; POS.4; POS.5
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
main90118-WCB58i201904
POS.1; POS.3; POS.4; POS.5
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
main47389-WC001×4i201904
POS.1; POS.3; POS.4; POS.5
47314TUBE, FRONT BRAKE, NO.4
main47315-WC001i201904
POS.1; POS.3; POS.4; POS.5
47315TUBE, FRONT BRAKE, NO.5
main47316-WC001i201904
POS.1; POS.3; POS.4; POS.5
47316TUBE, FRONT BRAKE, NO.6
main47317-WC001i201904
POS.1; POS.3; POS.4; POS.5
47318FHOSE, FLEXIBLE(FOR REAR RH)
main90118-WC546i201904
POS.1; POS.3; POS.4; POS.5
47319FHOSE, FLEXIBLE(FOR REAR LH)
main90118-WC546i201904
POS.1; POS.3; POS.4; POS.5
47321TUBE, REAR BRAKE, NO.1
main47321-WC001i201904
POS.1; POS.3; POS.4; POS.5
47322TUBE, REAR BRAKE, NO.2
main47322-WC001i201904
POS.1; POS.3; POS.4; POS.5
47323BTUBE, REAR BRAKE, NO.3
main47323-WC001i201904
POS.1; POS.3; POS.4; POS.5
47324TUBE, REAR BRAKE, NO.4
main47324-WC001i201904
POS.1; POS.3; POS.4; POS.5
47371ACLAMP, BRAKE TUBE, NO.1
main90118-WC548×3i201904
POS.1; POS.3; POS.4; POS.5
47371BCLAMP, BRAKE TUBE, NO.6
main90118-WC550×3i201904
POS.1; POS.3; POS.4; POS.5
47371CCLAMP, BRAKE TUBE, NO.7
main90118-WC551×3i201904
POS.1; POS.3; POS.4; POS.5
47371DCLAMP, BRAKE TUBE, NO.8
main90118-WC551×2i201904
POS.1; POS.3; POS.4; POS.5
47372CLAMP, BRAKE TUBE, NO.2
main90118-WC548i201904
POS.1; POS.3; POS.4; POS.5
47373BCLAMP, BRAKE TUBE, NO.3
main90118-WC549i201904
POS.1; POS.3; POS.4; POS.5
47374BCLAMP, BRAKE TUBE, NO.4
main90118-WC551×2i201904
POS.1; POS.3; POS.4; POS.5
47375CLAMP, BRAKE TUBE, NO.5
main90118-WC551i201904
POS.1; POS.3; POS.4; POS.5
90118WC041
main90118-WC041
90118WC052
main90118-WC052
90118WC228
main90118-WC228

28 parts on this diagram · 2 diagrams in section
