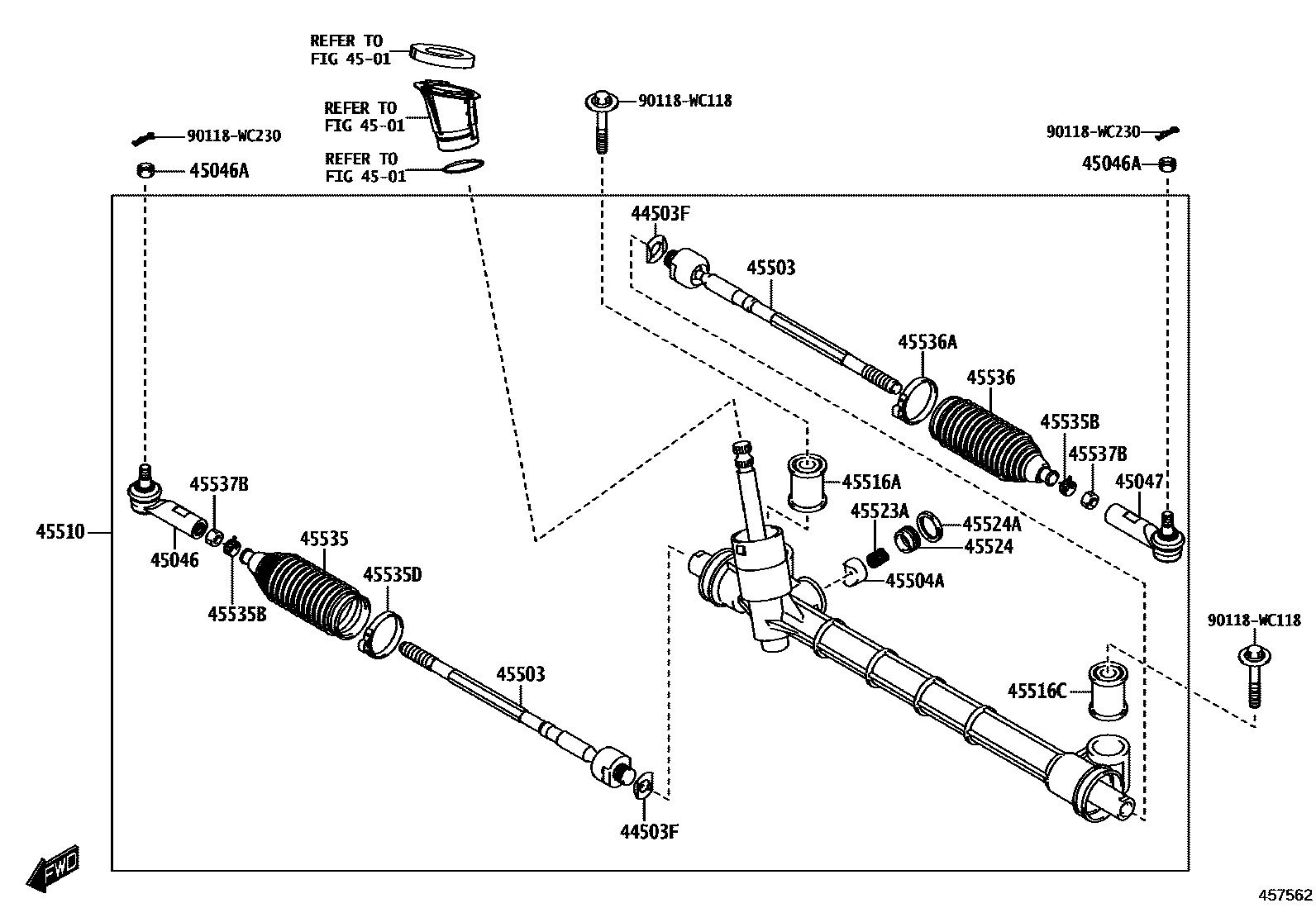

FRONT STEERING GEAR & LINK

44503FWASHER, CLAW(FOR POWER STEERING RACK END)

main90118-WC536×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

45046END SUB-ASSY, TIE ROD, RH

main45046-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

45046ANUT, CASTLE(FOR TIE ROD END)

main90118-WC148×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

45047END SUB-ASSY, TIE ROD, LH

main45046-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

45503END SUB-ASSY, STEERING RACK

main45503-WC001×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

45504AGUIDE SUB-ASSY, RACK

main45504-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

45510GEAR ASSY, STEERING

main45510-WC008iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

45516ABUSH, STEERING RACK HOUSING, NO.1

main45516-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

45516CBUSH, STEERING RACK HOUSING, NO.2

main45516-WC002iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90118-WC533iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

45524CAP, STEERING RACK GUIDE SPRING

main45524-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90118-WC534iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

45535BOOT, STEERING RACK, NO.1

main45535-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

45535BCLIP(FOR STEERING RACK BOOT)

main90118-WC537×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90118-WC532iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

45536BOOT, STEERING RACK, NO.2

main45535-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90118-WC532iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

45537BNUT, RACK END LOCK

main90118-WC535×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

90118WC118

main90118-WC118

90118WC230

main90118-WC230

21 parts on this diagram · 1 diagram in section
