16360AFAN ASSY, W/MOTOR

main16360-WC001i201904

POS.1; POS.3; POS.4; POS.5

16361FAN

main16361-WC001i201904

POS.1; POS.3; POS.4; POS.5

16363MOTOR, COOLING FAN

main16363-WC001i201904

POS.1; POS.3; POS.4; POS.5

16366AINSULATOR, COOLING FAN MOTOR

main16366-WC001i201904

POS.1; POS.3; POS.4; POS.5

16400RADIATOR ASSY

main16400-WC001i201904

POS.1; POS.3; POS.4; POS.5

16400BPLUG, RADIATOR DRAIN COCK

main16417-WC001i201904

POS.1; POS.3; POS.4; POS.5

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-WC001i201904

POS.1; POS.3; POS.4; POS.5

16401CAP SUB-ASSY, RADIATOR

main16401-WC001i201904

POS.1; POS.3; POS.4; POS.5

16423HOSE, RADIATOR TANK

main16377-WC001i201904

POS.1,NO.1:REFER ILLUST.; POS.3,NO.1:REFER ILLUST.; POS.4,NO.1:REFER ILLUST.; POS.5,NO.1:REFER ILLUST.

main90118-WC223i201904

POS.1,NO.2:REFER ILLUST.; POS.3,NO.2:REFER ILLUST.; POS.4,NO.2:REFER ILLUST.; POS.5,NO.2:REFER ILLUST.

16470TANK ASSY, RADIATOR RESERVE

main16470-WC001i201904

POS.1; POS.3; POS.4; POS.5

16471CAP SUB-ASSY, RESERVE TANK

main16471-WC001i201904

POS.1; POS.3; POS.4; POS.5

16523ACUSHION, RADIATOR SUPPORT

main16523-WC001×2i201904

POS.1; POS.3; POS.4; POS.5

16535SUPPORT, RADIATOR, LOWER

main90118-WC349×2i201904

POS.3; POS.4; POS.5

main90118-WC350×2i201904

POS.1

16582BRACKET, RADIATOR, NO.1

main90118-WC348×2i201904

POS.1; POS.3; POS.4; POS.5

16711SHROUD, FAN

main16711-WC001i201904

POS.1; POS.3; POS.4; POS.5

90118WC015

main90118-WC015

90118WC129

main90118-WC129

90118WC343

main90118-WC343

90118WC344

main90118-WC344

90118WC672

main90118-WC672

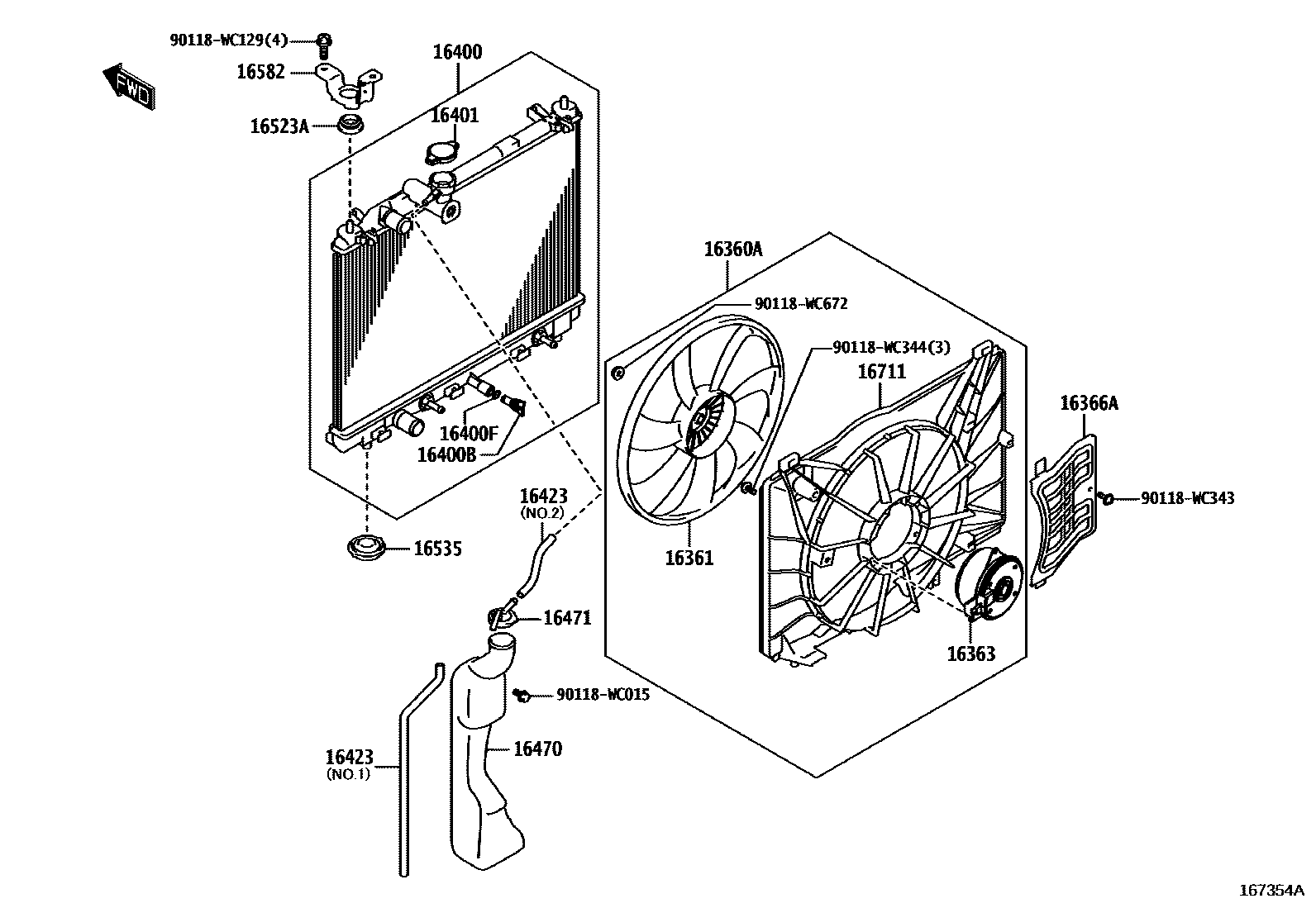

RADIATOR & WATER OUTLET
