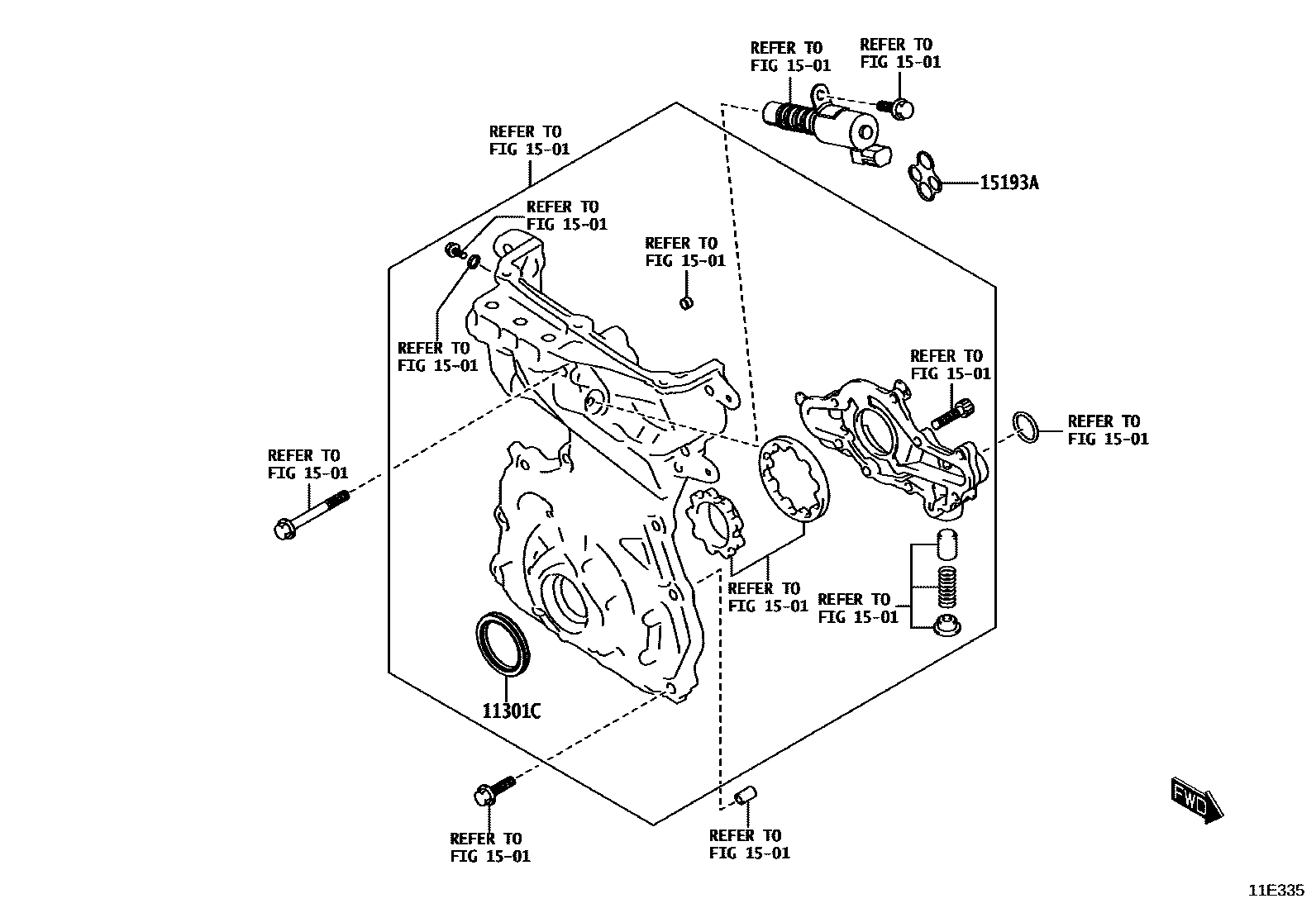

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90118-WC338iK12M..K12M..5F..G201909

POS.2

main90118-WC339iK12N..K12N201904

POS.1

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15193AGASKET, OIL PUMP

main90118-WC335iK12N..K12N201904

POS.1

main90118-WC336iK12M..K12M..5F..V; K12M..K12M..CVT..G; K12M..K12M..CVT..V201904

POS.3; POS.4; POS.5

3 parts on this diagram · 4 diagrams in section
