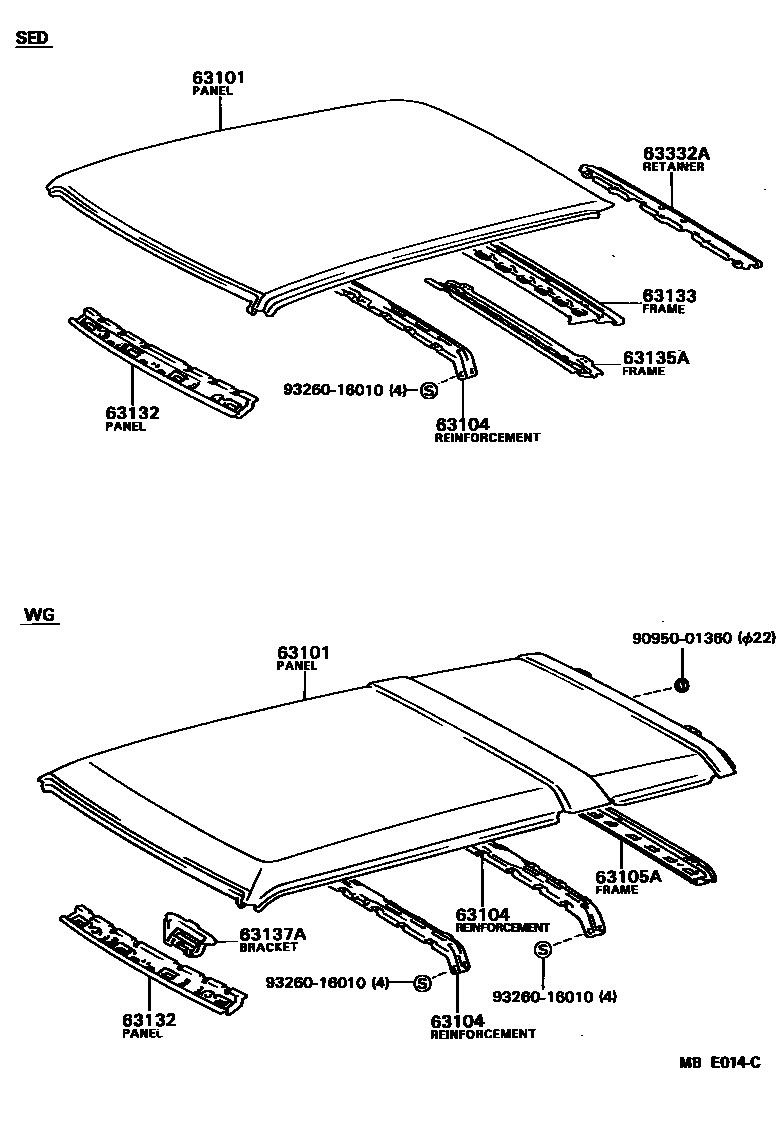

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0004 1

63101PANEL SUB-ASSY, ROOF

main63111-16080iAL20,21198205-198408

main63111-16090iAL21..3DS..5F..DLX198302-198304

EUROPE CAMPAIGN

main63111-16100iAL25198208-198801

main63111-16110iAL25198208-198801

W/SUN ROOF

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-16020iAL20,21198205-198408

main63141-16030×2iAL25198208-198801

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-16020iAL25198208-198801

63132PANEL, WINDSHIELD HEADER, INNER

main63132-16020iAL20,21198205-198408

main63132-16030iAL25198208-198801

63133FRAME, BACK WINDOW OPENING, UPPER

main63134-16020iAL20,21198205-198408

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-16020iAL20,21198205-198408

63137ABRACKET, DOME LAMP, NO.1

main63137-16020iAL25198208-198801

63332ARETAINER, ROOF HEADLINING, REAR

main63383-16010iAL20,21198205-198408

9095001360

main90950-01360

9326016010

main93260-16010

10 parts on this diagram · 3 diagrams in section
