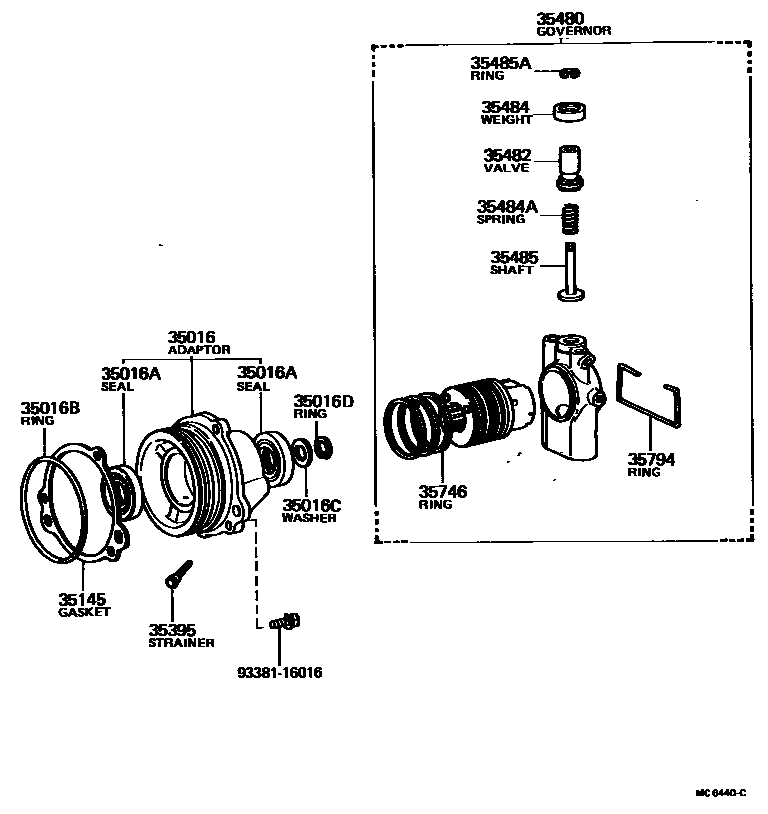

REAR OIL PUMP & GOVERNOR (ATM)

35016ADAPTER SUB-ASSY, GOVERNOR PRESSURE

main35016-16010iAL11..3FC197908-198204

35016ASEAL, TYPE S OIL(FOR GOVERNOR PRESSURE ADAPTER)

main90310-23001×2iAL11..3FC197908-198204

35016BRING, O(FOR GOVERNOR PRESSURE ADAPTER)

main90301-64003iAL11..3FC197908-198204

35016CWASHER, PLATE(FOR GOVERNOR PRESSURE ADAPTER)

main90201-11007iAL11..3FC197908-198204

35016DRING, SNAP(FOR GOVERNOR PRESSURE ADAPTER)

main96150-01100iAL11..3FC197908-198204

35145GASKET, GOVERNOR PRESSURE ADAPTER

main35146-16010iAL11..3FC197908-198204

35395STRAINER, GOVERNOR OIL

main35395-16010iAL11..3FC197908-198204

35480GOVERNOR

main35480-16010iAL11..3FC197908-198204

35482VALVE, GOVERNOR

main35482-16010iAL11..3FC197908-198204

35484WEIGHT, GOVERNOR, OUTER

main35484-16010iAL11..3FC197908-198204

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-07013iAL11..3FC197908-198204

35485SHAFT, GOVERNOR VALVE

main35485-16010iAL11..3FC197908-198204

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iAL11..3FC197908-198204

35746RING, GOVERNOR SUPPORT OIL SEAL

main35746-16010×3iAL11..3FC197908-198204

35794RING, GOVERNOR RETAINING

main35794-16010iAL11..3FC197908-198204

9338116016

main93381-16016

16 parts on this diagram · 1 diagram in section
