HEADLAMP CLEANER
8401SWITCH & RELAY & COMPUTER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
HEADLAMP-LED
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
HEADLAMP-LED
85271HOSE, HEADLAMP CLEANER, NO.1
L=280,HEADLAMP-LED
85271AHOSE, HEADLAMP CLEANER, NO.2
L=220,HEADLAMP-LED
85271BHOSE, HEADLAMP CLEANER, NO.3
L=1330,HEADLAMP-LED
85272ACLAMP, HEADLAMP CLEANER, NO.1
HEADLAMP-LED
85272BCLAMP, HEADLAMP CLEANER, NO.2
HEADLAMP-LED
85272CCLAMP, HEADLAMP CLEANER, NO.3
HEADLAMP-LED
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
HEADLAMP-LED
85330BBUSH, HEADLAMP CLEANER WASHER JAR
HEADLAMP-LED
85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE
HEADLAMP-LED,SUPER WHITE 2,040,RH
HEADLAMP-LED,LIME WHITE PEARL CS.,082,RH
HEADLAMP-LED,SILVER ME.,1F7,RH
HEADLAMP-LED,GRAY ME.,1G3,RH
HEADLAMP-LED,BLACK MC.,209,RH
HEADLAMP-LED,SUPER RED 5,3P0,RH
HEADLAMP-LED,MANDARIN ORANGE M.M.,4V7,RH
HEADLAMP-LED,AQUA M.M.,774,RH
HEADLAMP-LED,BLUE ME.,8T7,RH
HEADLAMP-LED,SUPER WHITE 2,040,LH
HEADLAMP-LED,LIME WHITE PEARL CS.,082,LH
HEADLAMP-LED,SILVER ME.,1F7,LH
HEADLAMP-LED,GRAY ME.,1G3,LH
HEADLAMP-LED,BLACK MC.,209,LH
HEADLAMP-LED,SUPER RED 5,3P0,LH
HEADLAMP-LED,MANDARIN ORANGE M.M.,4V7,LH
HEADLAMP-LED,AQUA M.M.,774,LH
HEADLAMP-LED,BLUE ME.,8T7,LH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP-LED
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
HEADLAMP-LED
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
HEADLAMP-LED
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
HEADLAMP-LED
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=140,HEADLAMP-LED
8271145020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-45020
9007590512
main90075-90512
9007591002
main90075-91002

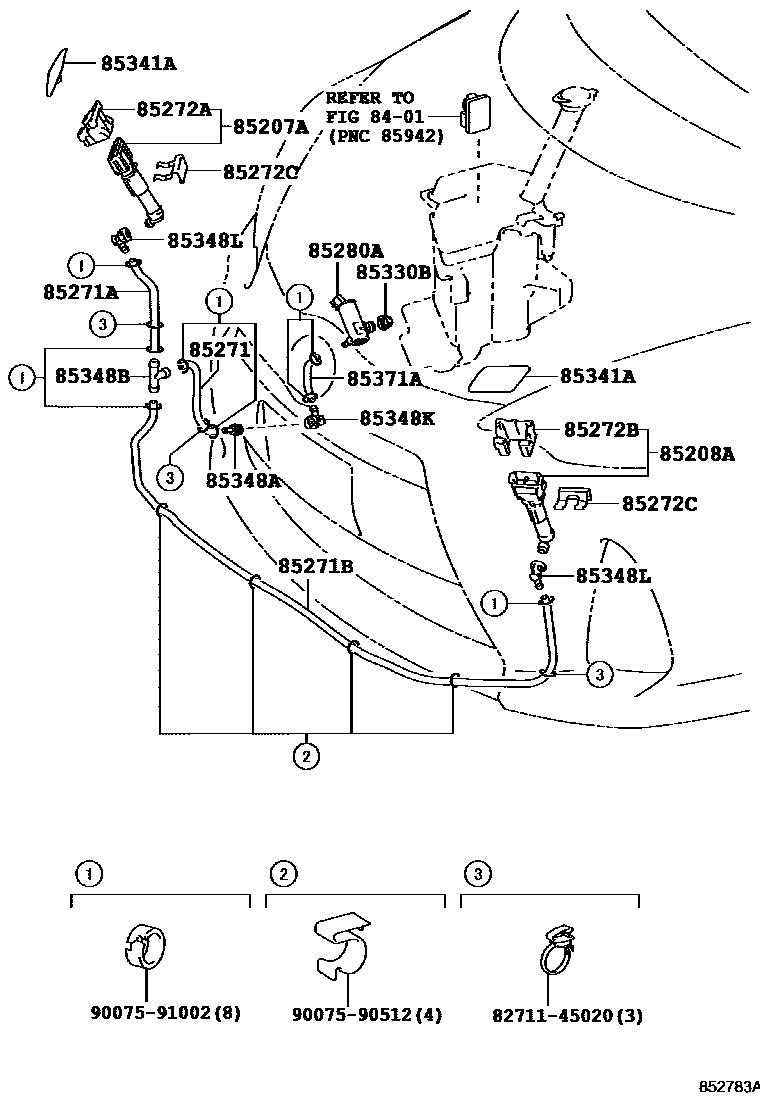

20 parts on this diagram · 1 diagram in section
