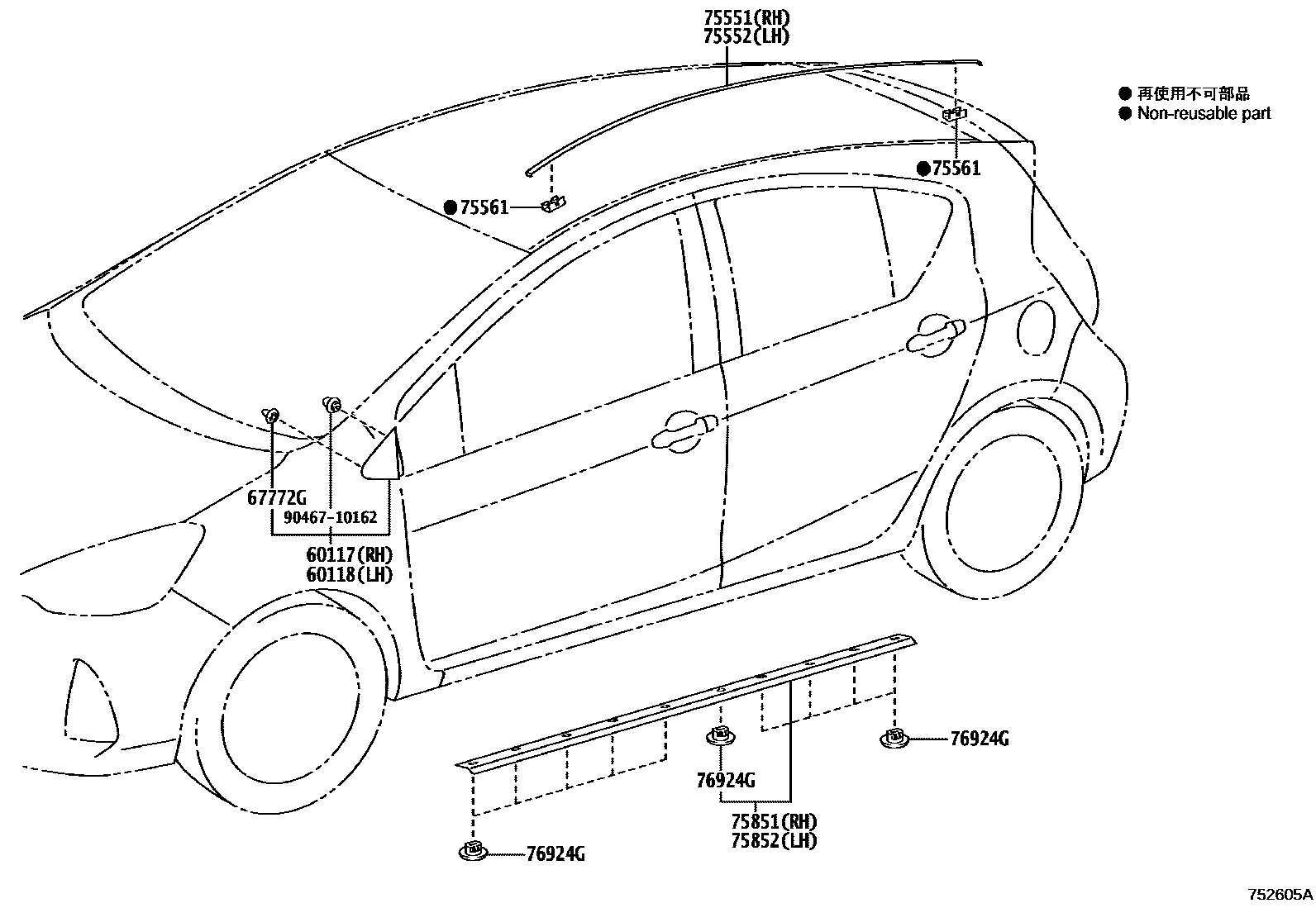

SIDE MOULDING

0001 1 0002 1FENDER MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-52080iNHP10201112-201412

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-52080iNHP10201112-201412

67772GCAP, FRONT PILLAR COVER

main67772-95J03×2iNHP10201112-201412

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-52210iNHP10201112-201412

NO PAINT REQ.

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-52190iNHP10201112-201412

NO PAINT REQ.

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030×4iNHP10201112-201412

75851MOULDING, ROCKER PANEL, RH

main75851-52070iNHP10201112-201412

75852MOULDING, ROCKER PANEL, LH

main75852-52090iNHP10201112-201412

76924GRETAINER, ROCKER PANEL MOULDING

main76924-12040×20iNHP10201112-201412

9046710162

main90467-10162

10 parts on this diagram · 2 diagrams in section
