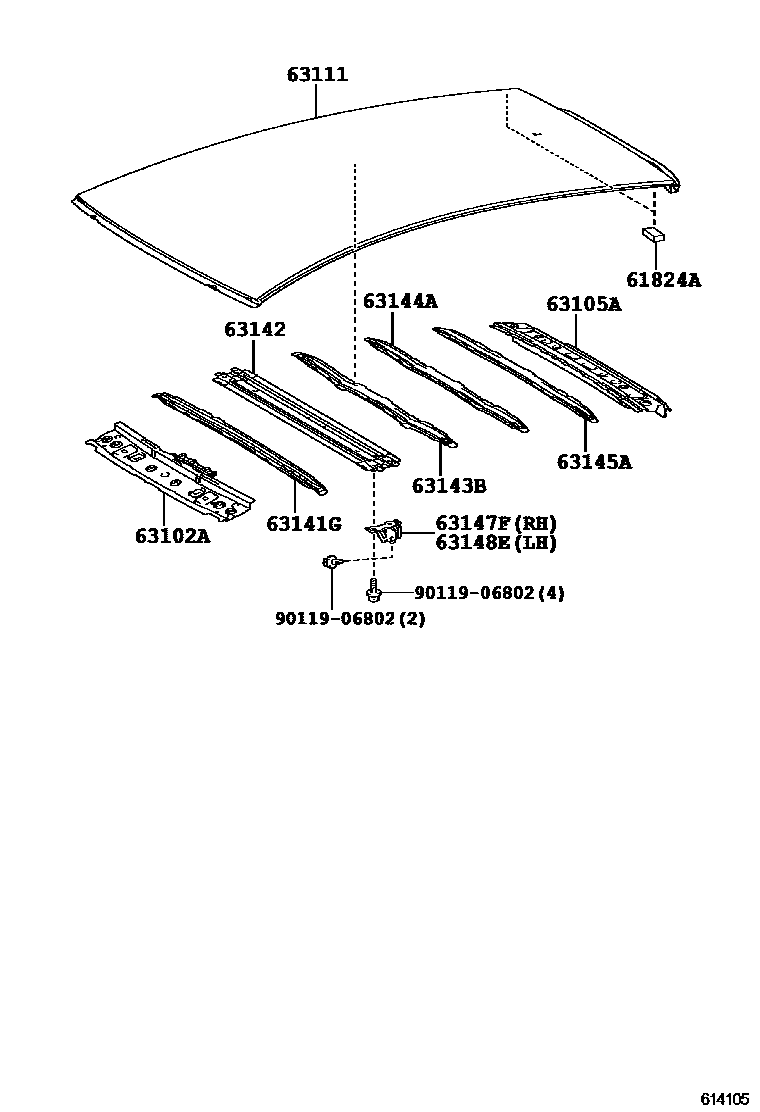

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1ROOF RAIL

61824APLATE, NOISE CONTROL, NO.1

main62151-20160×2iNHP10201112-201412

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-52190iNHP10201112-201412

main63102-52191iNHP10201608-201706

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-52170iNHP10201112-201412

63111PANEL, ROOF

main63111-52390iNHP10201412-201706

main63111-52391iNHP10202007

main63111-52460iNHP10..LHD201808-202006

CROSS PACKAGE

main63111-52461iNHP10..LHD202007

CROSS PACKAGE

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-52180iNHP10201412-201706

63142REINFORCEMENT, ROOF PANEL, NO.2

main63103-52110iNHP10201112-201412

main63103-52150iNHP10..ARL201706

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-52140iNHP10201112-201412

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63145-52060iNHP10201112-201412

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63146-52050iNHP10201112-201412

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-52100iNHP10201112-201412

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-52100iNHP10201112-201412

9011906802

main90119-06802

12 parts on this diagram · 2 diagrams in section
