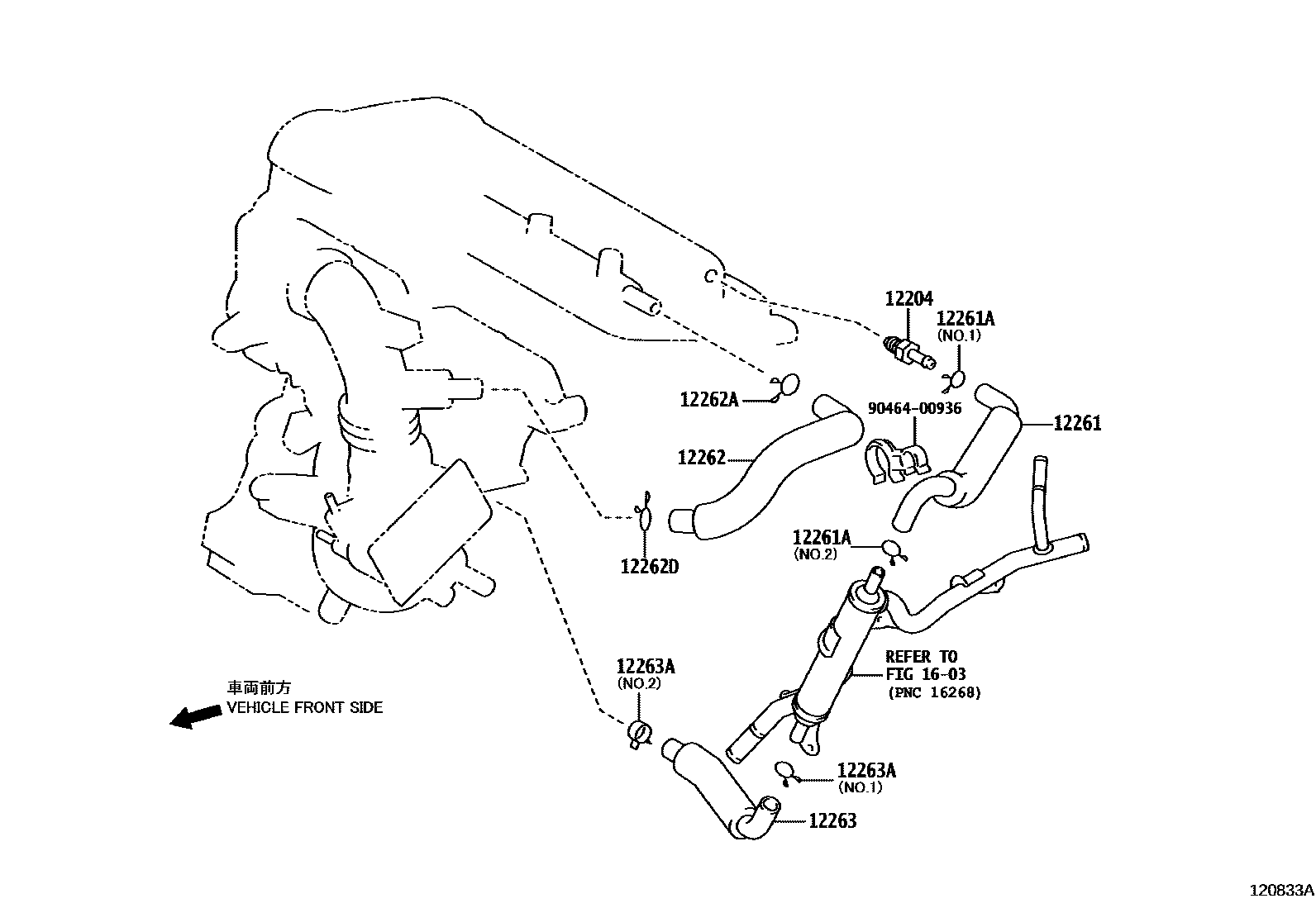

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.2
NO.1
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
12262DCLIP(FOR VENTILATION HOSE NO.2)
12263HOSE, VENTILATION, NO.3
12263ACLIP(FOR VENTILATION HOSE)
NO.1
NO.2
1603RADIATOR & WATER OUTLET
9046400936
main90464-00936
10 parts on this diagram · 1 diagram in section
