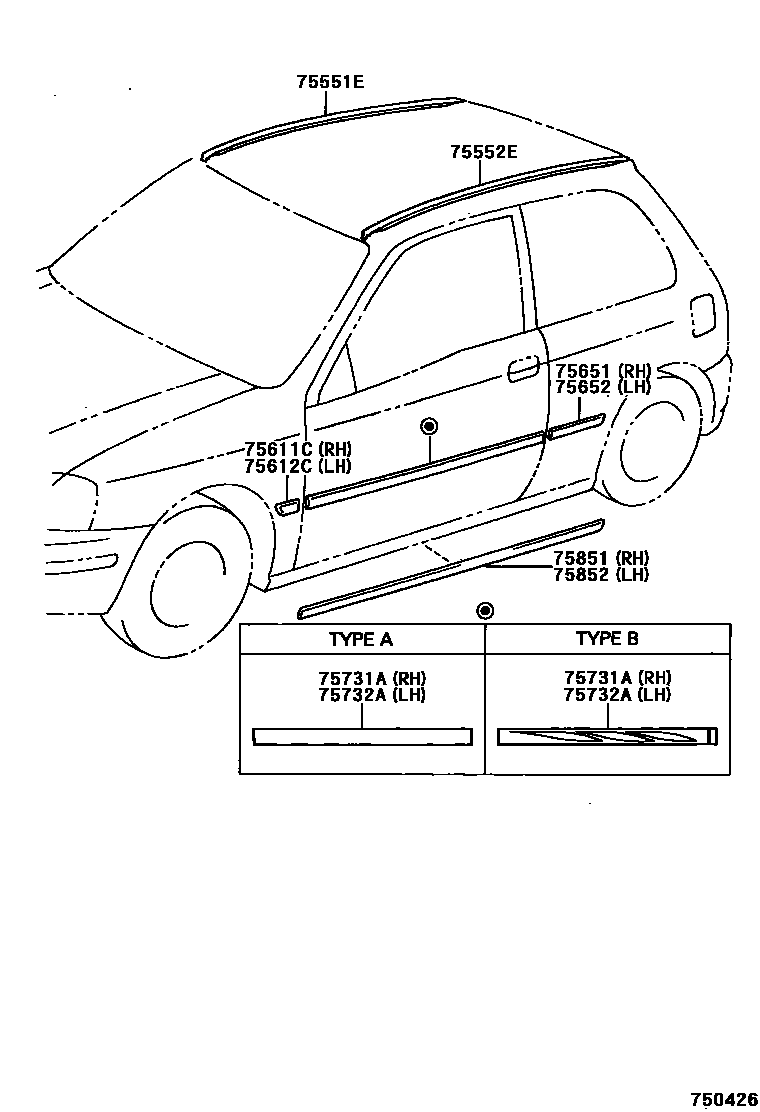

SIDE MOULDING
75551EMOULDING, ROOF DRIP SIDE FINISH, RH
75552EMOULDING, ROOF DRIP SIDE FINISH, LH
75611CMOULDING, FRONT FENDER, OUTSIDE RH
BL.GRAY ME,040 ,1A0 ,205 ,3E5 ,3K4 ,6P3 ,756 ,8K9 ,8L2
75612CMOULDING, FRONT FENDER, OUTSIDE LH
BL.GRAY ME,040 ,1A0 ,205 ,3E5 ,3K4 ,6P3 ,756 ,8K9 ,8L2
75651MOULDING, QUARTER, OUTSIDE RH
BL.GRAY ME,040 ,1A0 ,205 ,3E5 ,3K4 ,6P3 ,756 ,8K9 ,8L2
75652MOULDING, QUARTER, OUTSIDE LH
BL.GRAY ME,040 ,1A0 ,205 ,3E5 ,3K4 ,6P3 ,756 ,8K9 ,8L2
75731AMOULDING, FRONT DOOR, OUTSIDE RH
TYPE B
TYPE B:REFER TO ILLUSTRATION,LIGHT SILVER,040 ,1A0 ,205 ,3K4 ,6P2 ,756 ,8L2 ,8M7
TYPE B:REFER TO ILLUSTRATION,SUPER RED,3E5
TYPE B:REFER TO ILLUSTRATION,GRAY,6Q9
TYPE B
TYPE B:REFER TO ILLUSTRATION,LIGHT SILVER,040 ,1A0 ,205 ,3M0 ,6P2 ,756 ,8K9 ,8L2 ,937
TYPE B:REFER TO ILLUSTRATION,SUPER RED,3E5
TYPE B:REFER TO ILLUSTRATION,GRAY,6Q9
TYPE B:REFER TO ILLUSTRATION,BL.GRAY ME / ORANGE,1A0 ,205 ,3E5 ,3K4
TYPE B:REFER TO ILLUSTRATION,BL.GRAY ME / GREEN,040 ,6P3 ,756 ,8K9 ,8L2
TYPE B:REFER TO ILLUSTRATION,BL.GRAY ME / ORANGE,1A0 ,205 ,3E5 ,3K4
TYPE B:REFER TO ILLUSTRATION,BL.GRAY ME / GREEN,040 ,6P3 ,756 ,8K9 ,8L2
TYPE A
TYPE A
75732AMOULDING, FRONT DOOR, OUTSIDE LH
TYPE B
TYPE B:REFER TO ILLUSTRATION,LIGHT SILVER,040 ,1A0 ,205 ,3K4 ,6P2 ,8L2 ,8M7
TYPE B:REFER TO ILLUSTRATION,SUPER RED,3E5
TYPE B:REFER TO ILLUSTRATION,GRAY,6Q9
TYPE B
TYPE B:REFER TO ILLUSTRATION,LIGHT SILVER,040 ,1A0 ,205 ,3M0 ,6P2 ,756 ,8K9 ,8L2 ,937
TYPE B:REFER TO ILLUSTRATION,SUPER RED,3E5
TYPE B:REFER TO ILLUSTRATION,GRAY,6Q9
TYPE B:REFER TO ILLUSTRATION,BL.GRAY ME / ORANGE,1A0 ,205 ,3E5 ,3K4
TYPE B:REFER TO ILLUSTRATION,BL.GRAY ME / GREEN,040 ,6P3 ,756 ,8K9 ,8L2
TYPE B:REFER TO ILLUSTRATION,BL.GRAY ME / ORANGE,1A0 ,205 ,3E5 ,3K4
TYPE B:REFER TO ILLUSTRATION,BL.GRAY ME / GREEN,040 ,6P3 ,756 ,8K9 ,8L2
TYPE A
TYPE A
75851MOULDING, ROCKER PANEL, RH
75852MOULDING, ROCKER PANEL, LH
10 parts on this diagram · 2 diagrams in section
