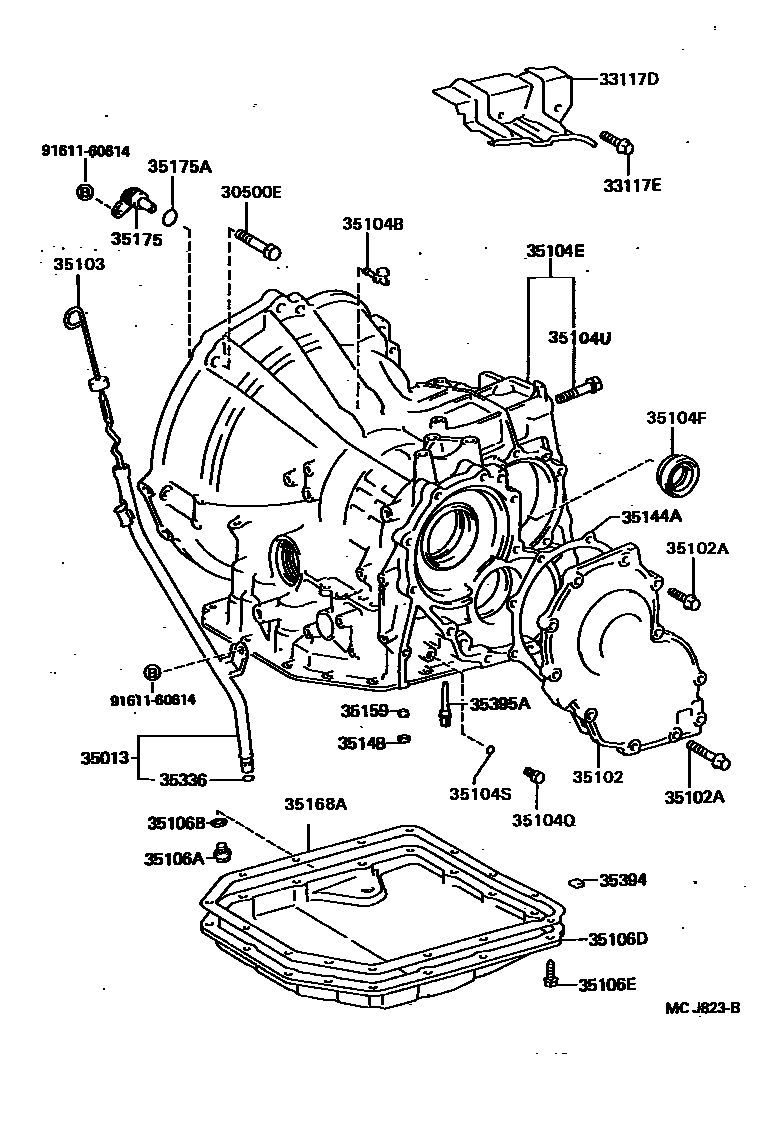

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10097198912-199601

main90119-12168198912-199601

main91611-61025198912-199601

main91612-41025199506-199601

main91619-61245198912-199601

main91621-60614198912-199601

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-10011198912-199601

main33117-12030199204-199601

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040198912-199601

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-10080198912-199201

main35013-10100199201-199601

main35013-10110199201-199601

main35013-10120199204-199601

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-10011198912-199601

main35102-16030199204-199210

main35102-16031199210-199601

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08050198912-199601

main90105-08056198912-199601

main90105-08065199204-199601

main90105-08068199204-199601

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-10050198912-199201

main35103-10070199201-199601

main35103-10080199201-199601

main35103-10090199204-199601

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03089198912-199601

main90930-03101199204-199601

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-10042198912-199102

main35104-10043199102-199601

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90311-34012198912-199601

main90311-34013199204-199601

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001198912-199601

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196198912-199601

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10008198912-199601

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006199204-199601

main90341-18016198912-199601

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010199204-199601

main90430-18008198912-199601

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10021198912-199008

main35106-10022199008-199601

main35106-12070199204-199601

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173198912-199601

35144AGASKET, TRANSAXLE REAR COVER

main35144-12010198912-199310

main35144-12020199310-199601

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010198912-199601

35159GASKET, BRAKE DRUM

main35159-20010199204-199601

main35159-32011198912-199601

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020199204-199601

main35168-32010198912-199601

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010198912-199601

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-21002198912-199601

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173198912-199601

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011198912-199601

35395ASTRAINER, GOVERNOR OIL

main35395-12020199204-199601

main35395-32020198912-199404

main35395-32030199404-199601

9161160614

main91611-60614

27 parts on this diagram · 2 diagrams in section
