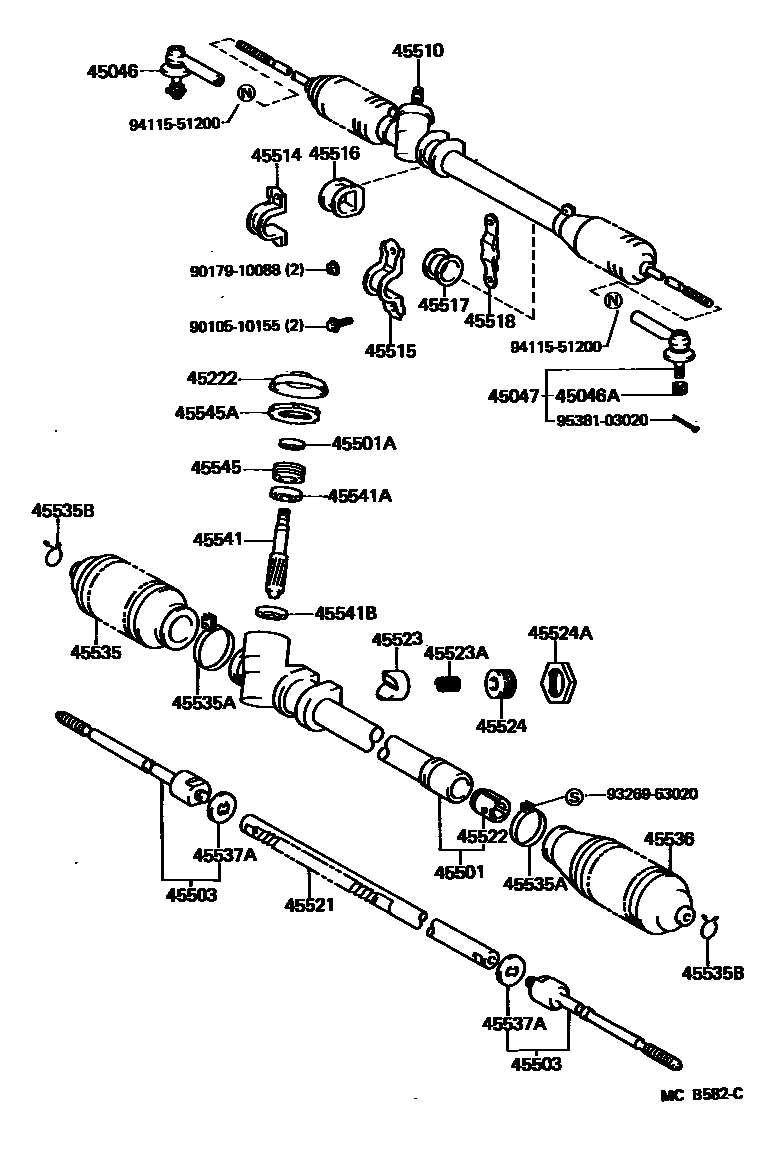

FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45222COVER, STEERING GEAR DUST
45501HOUSING SUB-ASSY, STEERING RACK
45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
45503END SUB-ASSY, STEERING RACK
45510GEAR ASSY, STEERING
45514BRACKET, STEERING RACK HOUSING, NO.1
45515BRACKET, STEERING RACK HOUSING, NO.2
45516GROMMET, STEERING RACK HOUSING, NO.1
45517GROMMET, STEERING RACK HOUSING, NO.2
45518BRACKET, STEERING RACK HOUSING, NO.3
45522BUSH, STEERING RACK
45523GUIDE, RACK(FOR STEERING GEAR)
45523ASPRING(FOR STEERING GEAR RACK GUIDE)
45524CAP, STEERING RACK GUIDE SPRING
45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)
45535BOOT, STEERING RACK, NO.1
45535ACLAMP(FOR STEERING RACK BOOT)
ID=41.5
ID=38
45535BCLIP(FOR STEERING RACK BOOT)
45536BOOT, STEERING RACK, NO.2
45537AWASHER, CLAW(FOR STEERING RACK END LOCK)
45541PINION, STEERING
45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)
45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)
45545SCREW, PINION BEARING ADJUSTING
45545ANUT(FOR PINION BEARING ADJUSTING SCREW)
9010510155
main90105-10155
9017910088
main90179-10088
9326963020
main93269-63020
9411551200
main94115-51200
9538103020
main95381-03020
34 parts on this diagram · 2 diagrams in section
