V-BELT

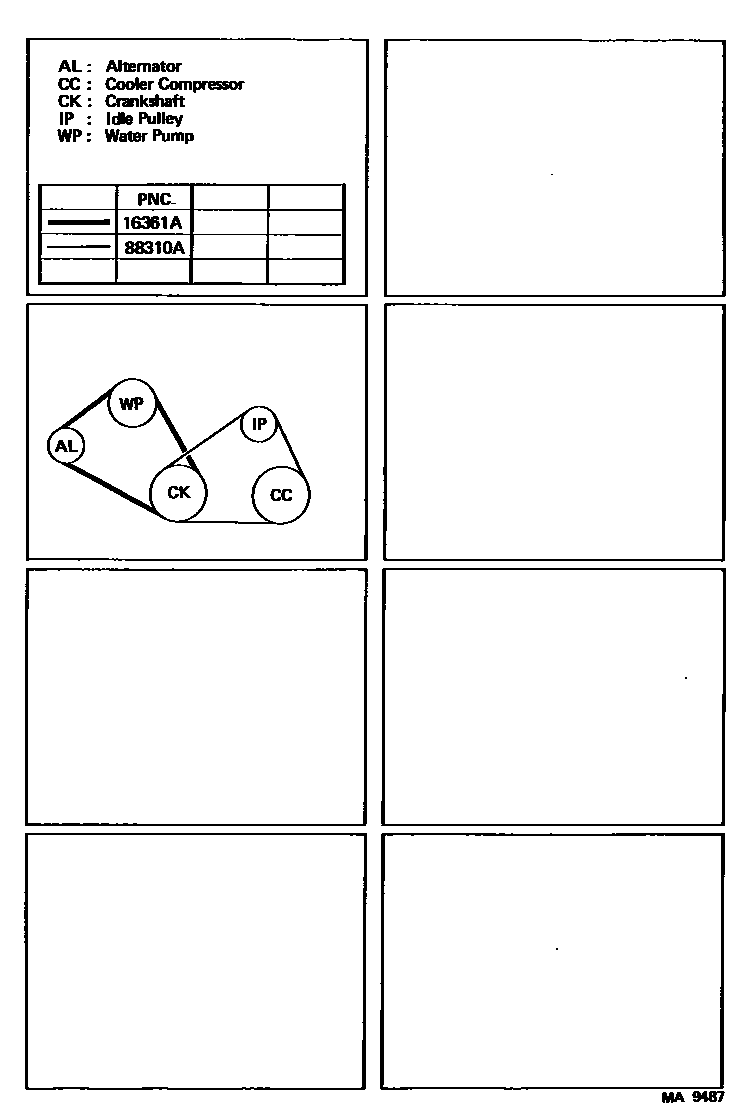

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02135i198410-198912

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99364-00850i198502-198912

L=850

main99364-50840i198410-198502

2 parts on this diagram · 1 diagram in section
