EPC Data

ARMREST & VISOR

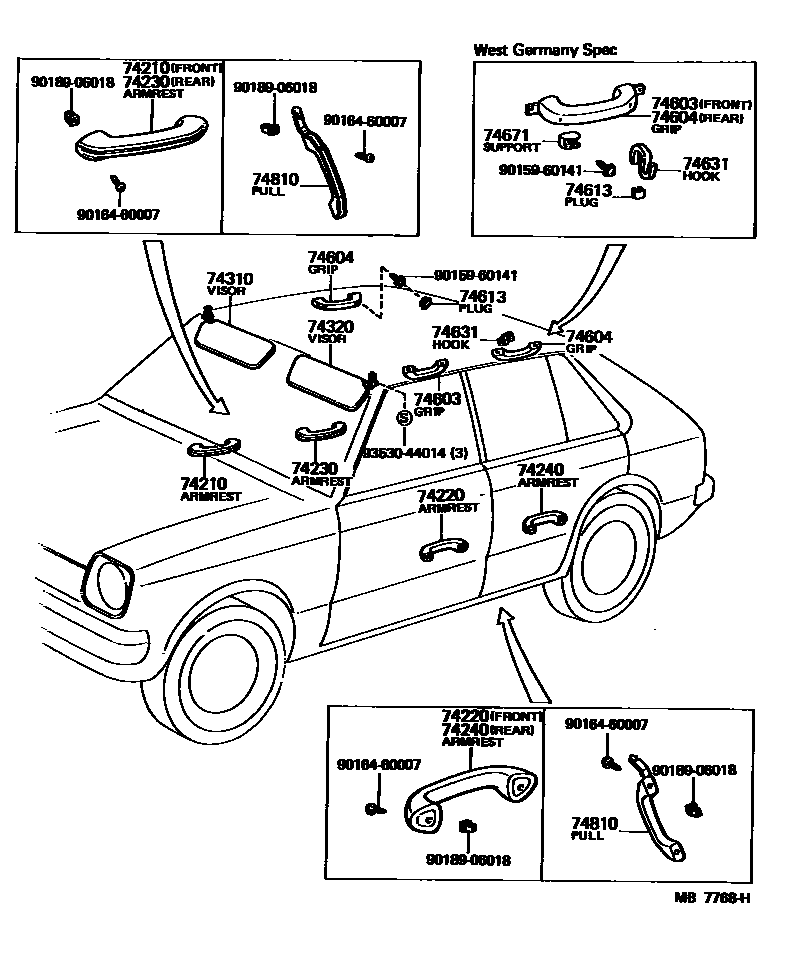

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-12020-01i197802-198208
BLACK,BLACK,TRIM2#
main74210-12020-03i198208-198409
GRAY,GRAY,TRIM1#
main74210-12020-10i197802-198005
LIGHT BROWN,LIGHT BROWN,TRIM4#
main74210-12020-12i198208-198409
DARK WINE,RED/MAROON,TRIM3#
main74210-12020-14i197802-198005
BLUE,BLUE,TRIM8#
main74210-12020-20i198005-198208
LIGHT BROWN,LIGHT BROWN,TRIM4#
main74210-12020-30i198208-198409
BROWN,BROWN,TRIM4#
74220ARMREST ASSY, FRONT, LH
main74210-12020-01i197802-198208
BLACK,BLACK,TRIM2#
main74210-12020-03i198208-198409
GRAY,GRAY,TRIM1#
main74210-12020-10i197802-198005
LIGHT BROWN,LIGHT BROWN,TRIM4#
main74210-12020-12i198208-198409
DARK WINE,RED/MAROON,TRIM3#
main74210-12020-14i198005-198208
BLUE,BLUE,TRIM8#
main74210-12020-20i198005-198208
LIGHT BROWN,LIGHT BROWN,TRIM4#
main74210-12020-30i198208-198409
BROWN,BROWN,TRIM4#
74230ARMREST ASSY, REAR, RH
main74210-12020-01i197802-198208
BLACK,BLACK,TRIM2#
main74210-12020-03i198208-198409
GRAY,GRAY,TRIM1#
main74210-12020-10i197802-198005
LIGHT BROWN,LIGHT BROWN,TRIM4#
main74210-12020-12i198208-198409
DARK WINE,RED/MAROON,TRIM3#
main74210-12020-14i197802-198208
BLUE,BLUE,TRIM8#
main74210-12020-20i198005-198208
LIGHT BROWN,LIGHT BROWN,TRIM4#
main74210-12020-30i198208-198409
BROWN,BROWN,TRIM4#
74240ARMREST ASSY, REAR, LH
main74210-12020-01i197802-198208
BLACK,BLACK,TRIM2#
main74210-12020-03i198208-198409
GRAY,GRAY,TRIM1#
main74210-12020-10i197802-198005
LIGHT BROWN,LIGHT BROWN,TRIM4#
main74210-12020-12i198208-198409
DARK WINE,RED/MAROON,TRIM3#
main74210-12020-14i197802-198208
BLUE,BLUE,TRIM8#
main74210-12020-20i198005-198208
LIGHT BROWN,LIGHT BROWN,TRIM4#
main74210-12020-30i198208-198409
BROWN,BROWN,TRIM4#
74310VISOR ASSY, RH
main74310-10080-03i197802-198005
GRAY,GRAY,TRIM2#
main74310-10080-04i197802-198005
BLUE,BLUE,TRIM8#
main74310-10080-05i197802-198005
BEIGE,BEIGE,TRIM4#
main74310-10080-08i198005-198208
IVORY,IVORY,TRIM2#,4#,8#
main74310-10080-13i198208-198409
LIGHT GRAY,GRAY,TRIM1#
main74310-10080-18i198208-198409
IVORY,IVORY,TRIM3#,4#
main74310-10090-03i197807-198005
W/MIRROR,GRAY,GRAY,TRIM2#
main74310-10090-04i197807-198005
W/MIRROR,BLUE,BLUE,TRIM8#
main74310-10090-05i197807-198005
W/MIRROR,BEIGE,BEIGE,TRIM4#
main74310-10090-08i198005-198208
W/MIRROR,IVORY,IVORY,TRIM2#,4#,8#
main74310-10090-13i198208-198409
W/MIRROR,LIGHT GRAY,GRAY,TRIM1#
main74310-10090-18i198208-198409
W/MIRROR,IVORY,IVORY,TRIM3#,4#
74320VISOR ASSY, LH
main74320-10040-03i197802-198005
GRAY,GRAY,TRIM2#
main74320-10040-04i197802-198005
BLUE,BLUE,TRIM8#
main74320-10040-05i197802-198005
BEIGE,BEIGE,TRIM4#
main74320-10040-08i198005-198208
IVORY,IVORY,TRIM2#,4#,8#
main74320-10040-13i198208-198409
LIGHT GRAY,GRAY,TRIM1#
main74320-10040-18i198208-198409
IVORY,IVORY,TRIM3#,4#
main74320-10050-03i197810-198005
W/MIRROR,GRAY,GRAY,TRIM2#
main74320-10050-04i197810-198005
W/MIRROR,BLUE,BLUE,TRIM8#
main74320-10050-05i197810-198005
W/MIRROR,BEIGE,BEIGE,TRIM4#
main74320-10050-08i198005-198208
W/MIRROR,IVORY,IVORY,TRIM2#,4#,8#
main74320-10050-13i198208-198409
W/MIRROR,LIGHT GRAY,GRAY,TRIM1#
main74320-10050-18i198208-198409
W/MIRROR,IVORY,IVORY,TRIM3#,4#
74603GRIP SUB-ASSY, ASSIST, FRONT
main74603-95800-03i197802-198005
WEST GERMANY SPEC,GRAY,GRAY,TRIM2#
main74603-95800-04i197802-198005
WEST GERMANY SPEC,BLUE,BLUE,TRIM8#
main74603-95800-05i197802-198005
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
main74603-95800-08i198005-198208
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,4#,8#
main74603-95800-13i198208-198409
WEST GERMANY SPEC,LIGHT GRAY,GRAY,TRIM1#
main74603-95800-18i198208-198409
WEST GERMANY SPEC,IVORY,IVORY,TRIM3#,4#
main74610-10020-03i197802-198005
GRAY,GRAY,TRIM2#
main74610-10020-04i197802-198005
BLUE,BLUE,TRIM8#
main74610-10020-05i197802-198005
BEIGE,BEIGE,TRIM4#
main74610-10020-08i198005-198208
IVORY,IVORY,TRIM2#,4#,8#
main74610-10020-13i198208-198409
LIGHT GRAY,GRAY,TRIM1#
main74610-10020-18i198208-198409
IVORY,IVORY,TRIM3#,4#
74604GRIP SUB-ASSY, ASSIST, REAR
main74603-95800-03×2i197802-198005
WEST GERMANY SPEC,GRAY,GRAY,TRIM2#
main74603-95800-04×2i197802-198005
WEST GERMANY SPEC,BLUE,BLUE,TRIM8#
main74603-95800-05×2i197802-198005
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
main74603-95800-08×2i198005-198208
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,4#,8#
main74603-95800-13×2i198208-198409
WEST GERMANY SPEC,LIGHT GRAY,GRAY,TRIM1#
main74603-95800-18×2i198208-198409
WEST GERMANY SPEC,IVORY,IVORY,TRIM3#,4#
main74610-10020-03×2i197802-198005
GRAY,GRAY,TRIM2#
main74610-10020-04×2i197802-198005
BLUE,BLUE,TRIM8#
main74610-10020-05×2i197802-198005
BEIGE,BEIGE,TRIM4#
main74610-10020-08×2i198005-198208
IVORY,IVORY,TRIM2#,4#,8#
main74610-10020-13×2i198208-198409
LIGHT GRAY,GRAY,TRIM1#
main74610-10020-18×2i198208-198409
IVORY,IVORY,TRIM3#,4#
74613PLUG, ASSIST GRIP
main74617-14010-03×6i197802-198005
GRAY,GRAY,TRIM2#
main74617-14010-04×6i197802-198005
BLUE,BLUE,TRIM8#
main74617-14010-06×6i197802-198005
LIGHT BROWN,BROWN,TRIM4#
main74617-14010-08×6i198005-198208
IVORY,IVORY,TRIM2#,4#,8#
main74617-14010-13×6i198208-198409
LIGHT GRAY,GRAY,TRIM1#
main74617-14010-18×6i198208-198409
IVORY,IVORY,TRIM3#,4#
main74617-22010-03×6i197802-198005
WEST GERMANY SPEC,GRAY,GRAY,TRIM2#
main74617-22010-04×6i197802-198005
WEST GERMANY SPEC,BLUE,BLUE,TRIM8#
main74617-22010-05×6i197802-198005
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
main74617-22010-08×6i198005-198208
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,4#,8#
main74617-22010-18×2i198208-198409
WEST GERMANY SPEC,IVORY,IVORY,TRIM3#,4#
main74617-22010-23×2i198208-198409
WEST GERMANY SPEC,LIGHT GRAY,GRAY,TRIM1#
74631HOOK, COAT, A
main74631-14010-03i197802-198005
GRAY,GRAY,TRIM2#
main74631-14010-04i197802-198005
BLUE,BLUE,TRIM8#
main74631-14010-06i197802-198005
LIGHT BROWN,BROWN,TRIM4#
main74631-14010-08i198005-198208
IVORY,IVORY,TRIM2#,4#,8#
main74631-14010-13i198208-198409
LIGHT GRAY,GRAY,TRIM1#
main74631-14010-18i198208-198409
IVORY,IVORY,TRIM3#,4#
74671SUPPORT, ASSIST GRIP
main74671-22010-03×6i197802-198005
WEST GERMANY SPEC,GRAY,GRAY,TRIM2#
main74671-22010-04×6i197802-198005
WEST GERMANY SPEC,BLUE,BLUE,TRIM8#
main74671-22010-05×6i197802-198005
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
main74671-22010-08×6i198005-198208
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,4#,8#
main74671-22010-18×2i198208-198409
WEST GERMANY SPEC,IVORY,IVORY,TRIM3#,4#
main74671-22010-23×2i198208-198409
WEST GERMANY SPEC,LIGHT GRAY,GRAY,TRIM1#
74810PULL ASSY, DOOR, INSIDE
main74641-16010-01×4i197907-198208
BLACK,BLACK,TRIM2#
main74641-16010-02×2i198208-198409
DARK WINE,RED/MAROON,TRIM3#
main74641-16010-03×2i198208-198409
GRAY,GRAY,TRIM1#; W/RR DOOR,GRAY,GRAY,TRIM1#
main74641-16010-04×4i198005-198208
BLUE,BLUE,TRIM8#
main74641-16010-06×4i197907-198005
LIGHT BROWN,BROWN,TRIM4#
main74641-16010-16×4i198005-198208
LIGHT BROWN,BROWN,TRIM4#
main74641-16010-36×4i198208-198409
BROWN,BROWN,TRIM4#; W/RR DOOR,BROWN,BROWN,TRIM4#
main74811-12020-04×4i197802-197907
BLUE,BLUE,TRIM8#
main74811-12020-11×4i197802-197907
BLACK,BLACK,TRIM2#
main74811-12020-16×4i197802-197907
LIGHT BROWN,BROWN,TRIM4#
9015960141
main90159-60141
9016460007
main90164-60007
9018906018
main90189-06018
9353044014
main93530-44014

16 parts on this diagram · 1 diagram in section
