EPC Data

REAR SEAT & SEAT TRACK

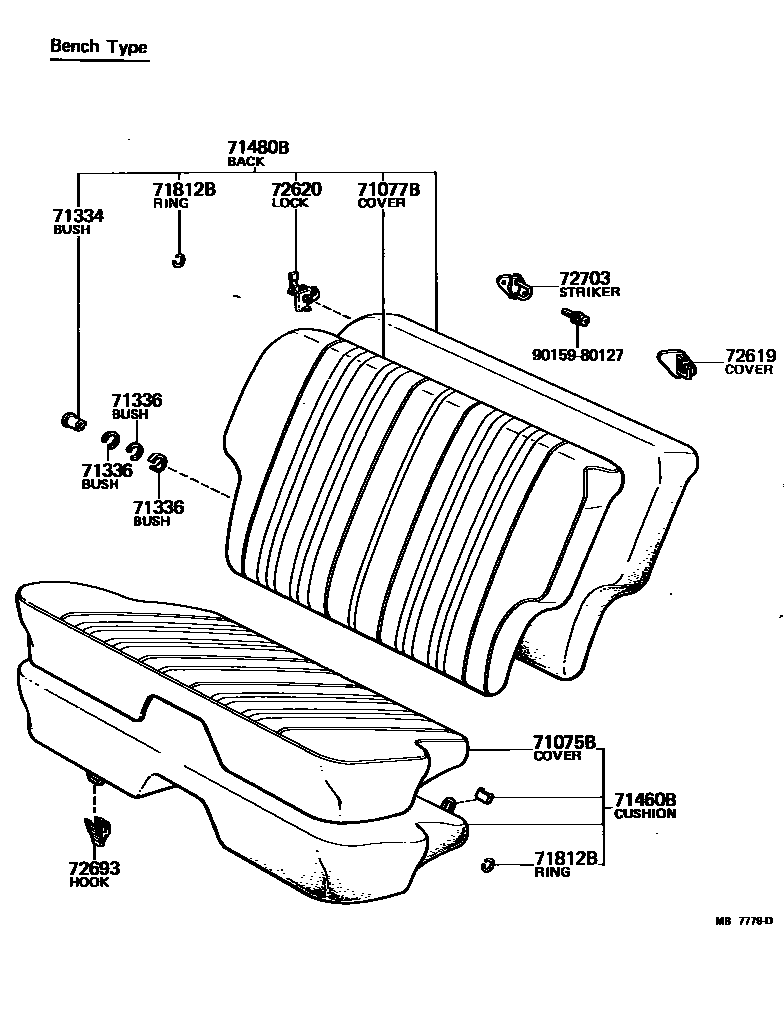

Parts diagram
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-10290-01i197802-197910
VL,BLACK,BLACK,TRIM2#
main71075-10290-04i197802-197910
VL,BLUE,BLUE,TRIM8#
main71075-10290-06i197802-197910
VL,LIGHT BROWN,BROWN,TRIM4#
main71075-10291-01i197910-198005
VL,BLACK,BLACK,TRIM2#
main71075-10291-04i197910-198005
VL,BLUE,BLUE,TRIM8#
main71075-10291-06i197910-198005
VL,LIGHT BROWN,BROWN,TRIM4#
main71075-10292-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71075-10292-04i198005-198208
VL,BLUE,BLUE,TRIM8#
main71075-10292-06i198005-198208
VL,LIGHT BROWN,BROWN,TRIM4#
main71075-10300-01i197802-198005
FB,BLACK,BLACK,TRIM2#
main71075-10300-04i197802-198005
FB,BLUE,BLUE,TRIM8#
main71075-10300-06i197802-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-10301-01i198005-198208
SEMI FB,BLACK,BLACK,TRIM2#
main71075-10301-04i198005-198208
SEMI FB,BLUE,BLUE,TRIM8#
main71075-10301-06i198005-198208
SEMI FB,LIGHT BROWN,BROWN,TRIM4#
main71075-10310-01i197802-198005
FB,BLACK,BLACK,TRIM2#
main71075-10310-04i197802-198005
FB,BLUE,BLUE,TRIM8#
main71075-10310-06i197802-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-10311-01i198005-198208
SEMI FB,BLACK,BLACK,TRIM2#
main71075-10311-04i198005-198208
SEMI FB,BLUE,BLUE,TRIM8#
main71075-10311-06i198005-198208
SEMI FB,LIGHT BROWN,BROWN,TRIM4#
main71075-10320-01i197802-197910
VL,BLACK,BLACK,TRIM2#
main71075-10320-04i197802-197910
VL,BLUE,BLUE,TRIM8#
main71075-10320-06i197802-197910
VL,LIGHT BROWN,BROWN,TRIM4#
main71075-10321-01i197910-198005
VL,BLACK,BLACK,TRIM2#
main71075-10321-04i197910-198005
VL,BLUE,BLUE,TRIM8#
main71075-10321-06i197910-198005
VL,LIGHT BROWN,BROWN,TRIM4#
main71075-10322-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71075-10322-04i198005-198208
VL,BLUE,BLUE,TRIM8#
main71075-10322-06i198005-198208
VL,LIGHT BROWN,BROWN,TRIM4#
main71075-10330-01i197802-197910
PF,BLACK,BLACK,TRIM2#
main71075-10330-04i197802-197910
PF,BLUE,BLUE,TRIM8#
main71075-10330-06i197802-197910
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-10331-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71075-10331-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71075-10331-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-10332-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71075-10332-04i198005-198208
PF,BLUE,BLUE,TRIM8#
main71075-10332-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-10340-01i197802-197910
PF,BLACK,BLACK,TRIM2#
main71075-10340-04i197802-197910
PF,BLUE,BLUE,TRIM8#
main71075-10340-06i197802-197910
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-10341-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71075-10341-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71075-10341-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-10342-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71075-10342-04i198005-198208
PF,BLUE,BLUE,TRIM8#
main71075-10342-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-10361-01i198005-198108
FULL FB,BLACK,BLACK,TRIM2#
main71075-10361-04i198108-198208
FULL FB,BLUE,BLUE,TRIM8#
main71075-10361-06i198108-198208
FULL FB,LIGHT BROWN,BROWN,TRIM4#
main71075-10370-01i198005-198108
FULL FB,BLACK,BLACK,TRIM2#
main71075-10370-04i198108-198208
FULL FB,BLUE,BLUE,TRIM8#
main71075-10370-06i198005-198108
FULL FB,LIGHT BROWN,BROWN,TRIM4#
main71075-10560-02i198208-198409
PF,DARK WINE,RED/MAROON,TRIM3#
main71075-10560-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71075-10560-05i198208-198409
PF,BEIGE,BEIGE,TRIM4#
main71075-10570-02i198208-198409
SEMI FB,DARK WINE,RED/MAROON,TRIM3#
main71075-10570-03i198208-198409
SEMI FB,GRAY,GRAY,TRIM1#
main71075-10570-06i198208-198409
SEMI FB,BROWN,BROWN,TRIM4#
main71075-10580-02i198208-198409
FULL FB,DARK WINE,RED/MAROON,TRIM3#
main71075-10580-03i198208-198409
FULL FB,GRAY,GRAY,TRIM1#
main71075-10580-06i198208-198409
FULL FB,BROWN,BROWN,TRIM4#
main71075-10590-02i198302-198409
BELGIUM CAMPAIN,SEMI FB,RED,RED/MAROON
main71075-10590-09i198208-198409
SEMI FB,YELLOW,YELLOW,TRIM1#
main71075-10600-02i198208-198409
PF,DARK WINE,RED/MAROON,TRIM3#
main71075-10600-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71075-10600-05i198208-198409
PF,BEIGE,BEIGE,TRIM4#
main71075-10610-02i198208-198409
SEMI FB,DARK WINE,RED/MAROON,TRIM3#
main71075-10610-03i198208-198409
SEMI FB,GRAY,GRAY,TRIM1#
main71075-10610-06i198208-198409
SEMI FB,BROWN,BROWN,TRIM4#
main71075-10620-02i198208-198409
FULL FB,DARK WINE,RED/MAROON,TRIM3#
main71075-10620-03i198208-198409
FULL FB,GRAY,GRAY,TRIM1#
main71075-10620-06i198208-198409
FULL FB,BROWN,BROWN,TRIM4#
main71075-10630-02i198208-198409
SEMI FB,RED,RED/MAROON,TRIM1#
main71075-10630-09i198208-198409
SEMI FB,YELLOW,YELLOW,TRIM1#
main71075-10640-02i198208-198409
VL,DARK WINE,RED/MAROON,TRIM3#
main71075-10640-03i198208-198409
VL,LIGHT GRAY,GRAY,TRIM1#
main71075-10640-05i198208-198409
VL,BEIGE,BEIGE,TRIM4#
main71075-10650-02i198208-198409
VL,DARK WINE,RED/MAROON,TRIM3#
main71075-10650-03i198208-198409
VL,LIGHT GRAY,GRAY,TRIM1#
main71075-10650-05i198208-198409
VL,BEIGE,BEIGE,TRIM4#
main71075-96440-01i197810-197910
VL,BLACK,BLACK,TRIM2#
main71075-96440-04i197810-197910
VL,BLUE,BLUE,TRIM8#
main71075-96440-06i197810-197910
VL,LIGHT BROWN,BROWN,TRIM4#
main71075-96441-01i197810-197910
PF,BLACK,BLACK,TRIM2#
main71075-96441-04i197810-197910
PF,BLUE,BLUE,TRIM8#
main71075-96441-06i197810-197910
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-96443-01i197810-198005
FB,BLACK,BLACK,TRIM2#
main71075-96443-04i197810-198005
FB,BLUE,BLUE,TRIM8#
main71075-96443-06i197810-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71075-96444-01i197910-198005
VL,BLACK,BLACK,TRIM2#
main71075-96444-04i197910-198005
VL,BLUE,BLUE,TRIM8#
main71075-96444-06i197910-198005
VL,LIGHT BROWN,BROWN,TRIM4#
main71075-96445-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71075-96445-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71075-96445-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-96447-01i198005-198208
SEMI FB,BLACK,BLACK,TRIM2#
main71075-96447-06i198005-198208
SEMI FB,LIGHT BROWN,BROWN,TRIM4#
main71075-96450-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71075-96450-06i198005-198208
VL,LIGHT BROWN,BROWN,TRIM4#
main71075-96451-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71075-96451-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71075-96455-03i198208-198409
VL,LIGHT GRAY,GRAY,TRIM1#
main71075-96455-05i198208-198409
VL,BEIGE,BEIGE,TRIM4#
main71075-96456-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71075-96456-05i198208-198409
PF,BEIGE,BEIGE,TRIM4#
main71075-96457-03i198208-198409
SEMI FB,GRAY,GRAY,TRIM1#
main71075-96457-06i198208-198409
SEMI FB,BROWN,BROWN,TRIM4#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-10260-01i197802-197910
VL,BLACK,BLACK,TRIM2#
main71077-10260-04i197802-197910
VL,BLUE,BLUE,TRIM8#
main71077-10260-06i197802-197910
VL,LIGHT BROWN,BROWN,TRIM4#
main71077-10270-01i197802-197910
PF,BLACK,BLACK,TRIM2#
main71077-10270-04i197802-197910
PF,BLUE,BLUE,TRIM8#
main71077-10270-06i197802-197910
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-10330-01i197802-197910
PF,BLACK,BLACK,TRIM2#
main71077-10330-04i197802-197910
PF,BLUE,BLUE,TRIM8#
main71077-10330-06i197802-197910
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-10380-01i197802-197910
VL,BLACK,BLACK,TRIM2#
main71077-10380-04i197802-197910
VL,BLUE,BLUE,TRIM8#
main71077-10380-06i197802-197910
VL,LIGHT BROWN,BROWN,TRIM4#
main71077-10381-01i197910-198005
VL,BLACK,BLACK,TRIM2#
main71077-10381-04i197910-198005
VL,BLUE,BLUE,TRIM8#
main71077-10381-06i197910-198005
VL,LIGHT BROWN,BROWN,TRIM4#
main71077-10382-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71077-10382-04i198005-198208
VL,BLUE,BLUE,TRIM8#
main71077-10382-06i198005-198208
VL,LIGHT BROWN,BROWN,TRIM4#
main71077-10400-01i197802-197910
FB,BLACK,BLACK,TRIM2#
main71077-10400-04i197802-197910
FB,BLUE,BLUE,TRIM8#
main71077-10400-06i197802-197910
FB,LIGHT BROWN,BROWN,TRIM4#
main71077-10401-01i197910-198005
FB,BLACK,BLACK,TRIM2#
main71077-10401-04i197910-198005
FB,BLUE,BLUE,TRIM8#
main71077-10401-06i197910-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71077-10410-01i197802-197910
FB,BLACK,BLACK,TRIM2#
main71077-10410-04i197802-197910
FB,BLUE,BLUE,TRIM8#
main71077-10410-06i197802-197910
FB,LIGHT BROWN,BROWN,TRIM4#
main71077-10411-01i197910-198005
FB,BLACK,BLACK,TRIM2#
main71077-10411-04i197910-198005
FB,BLUE,BLUE,TRIM8#
main71077-10411-06i197910-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71077-10440-01i197910-198005
VL,BLACK,BLACK,TRIM2#
main71077-10440-04i197910-198005
VL,BLUE,BLUE,TRIM8#
main71077-10440-06i197910-198005
VL,LIGHT BROWN,BROWN,TRIM4#
main71077-10450-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71077-10450-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71077-10450-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-10460-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71077-10460-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71077-10460-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-10480-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71077-10480-04i198005-198208
VL,BLUE,BLUE,TRIM8#
main71077-10480-06i198005-198208
VL,LIGHT BROWN,BROWN,TRIM4#
main71077-10510-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71077-10510-04i198005-198208
PF,BLUE,BLUE,TRIM8#
main71077-10510-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-10520-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71077-10520-04i198005-198208
PF,BLUE,BLUE,TRIM8#
main71077-10520-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-10690-02i198208-198409
PF,DARK WINE,RED/MAROON,TRIM3#
main71077-10690-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71077-10690-05i198208-198409
PF,BEIGE,BEIGE,TRIM4#
main71077-10730-02i198208-198409
PF,DARK WINE,RED/MAROON,TRIM3#
main71077-10730-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71077-10730-05i198208-198409
PF,BEIGE,BEIGE,TRIM4#
main71077-10770-02i198208-198409
VL,DARK WINE,RED/MAROON,TRIM3#
main71077-10770-03i198208-198409
VL,LIGHT GRAY,GRAY,TRIM1#
main71077-10770-05i198208-198409
VL,BEIGE,BEIGE,TRIM4#
main71077-10780-02i198208-198409
VL,DARK WINE,RED/MAROON,TRIM3#
main71077-10780-03i198208-198409
VL,LIGHT GRAY,GRAY,TRIM1#
main71077-10780-05i198208-198409
VL,BEIGE,BEIGE,TRIM4#
main71077-10810-02i198208-198409
SEMI FB,DARK WINE,RED/MAROON,TRIM3#
main71077-10810-03i198208-198409
SEMI FB,GRAY,GRAY,TRIM1#
main71077-10810-06i198208-198409
SEMI FB,BROWN,BROWN,TRIM4#
main71077-10820-02i198208-198409
SEMI FB,DARK WINE,RED/MAROON,TRIM3#
main71077-10820-03i198208-198409
SEMI FB,GRAY,GRAY,TRIM1#
main71077-10820-06i198208-198409
SEMI FB,BROWN,BROWN,TRIM4#
main71077-96440-01i197810-197910
VL,BLACK,BLACK,TRIM2#
main71077-96440-04i197810-197910
VL,BLUE,BLUE,TRIM8#
main71077-96440-06i197810-197910
VL,LIGHT BROWN,BROWN,TRIM4#
main71077-96441-01i197810-197910
PF,BLACK,BLACK,TRIM2#
main71077-96441-04i197810-197910
PF,BLUE,BLUE,TRIM8#
main71077-96441-06i197810-197910
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-96443-01i197810-198005
FB,BLACK,BLACK,TRIM2#
main71077-96443-04i197810-198005
FB,BLUE,BLUE,TRIM8#
main71077-96443-06i197810-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71077-96444-01i197910-198005
VL,BLACK,BLACK,TRIM2#
main71077-96444-04i197910-198005
VL,BLUE,BLUE,TRIM8#
main71077-96444-06i197910-198005
VL,LIGHT BROWN,BROWN,TRIM4#
main71077-96445-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71077-96445-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71077-96445-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-96447-01i198005-198208
SEMI FB,BLACK,BLACK,TRIM2#
main71077-96447-06i198005-198208
SEMI FB,LIGHT BROWN,BROWN,TRIM8#
main71077-96450-01i198005-198208
VL,BLACK,BLACK,TRIM4#
main71077-96450-06i198005-198208
VL,LIGHT BROWN,BROWN,TRIM2#
main71077-96451-01i198005-198208
PF,BLACK,BLACK,TRIM8#
main71077-96451-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71077-96455-03i198208-198409
VL,LIGHT GRAY,GRAY,TRIM1#
main71077-96455-05i198208-198409
VL,BEIGE,BEIGE,TRIM4#
main71077-96456-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71077-96456-05i198208-198409
PF,BEIGE,BEIGE,TRIM4#
main71077-96457-03i198208-198409
SEMI FB,GRAY,GRAY,TRIM1#
main71077-96457-06i198208-198409
SEMI FB,BROWN,BROWN,TRIM4#
71334BUSH, REAR SEATBACK PIVOT
main71331-13010×2i197810-198409
main90386-13003×2i197802-198005
BENCH SEAT
main90386-13005×2i197802-198208
SEPARATE SEAT
71336BUSH OR SPACER, REAR SEATBACK HINGE
main71331-20030×4i197802-198005
T=2
main71332-10010×2i197802-198005
T=8
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
main71460-10260-01i197802-197910
VL,BLACK,BLACK,TRIM2#
main71460-10260-04i197802-197910
VL,BLUE,BLUE,TRIM8#
main71460-10260-06i197802-197910
VL,LIGHT BROWN,BROWN,TRIM4#
main71460-10261-01i197910-198005
VL,BLACK,BLACK,TRIM2#
main71460-10261-04i197910-198005
VL,BLUE,BLUE,TRIM8#
main71460-10261-06i197910-198005
VL,LIGHT BROWN,BROWN,TRIM4#
main71460-10262-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71460-10262-04i198005-198208
VL,BLUE,BLUE,TRIM8#
main71460-10262-06i198005-198208
VL,LIGHT BROWN,BROWN,TRIM4#
main71460-10270-01i197802-198005
FB,BLACK,BLACK,TRIM2#
main71460-10270-04i197802-198005
FB,BLUE,BLUE,TRIM8#
main71460-10270-06i197802-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-10271-01i198005-198208
SEMI FB,BLACK,BLACK,TRIM2#
main71460-10271-04i198005-198208
SEMI FB,BLUE,BLUE,TRIM8#
main71460-10271-06i198005-198208
SEMI FB,LIGHT BROWN,BROWN,TRIM4#
main71460-10280-01i197802-198005
FB,BLACK,BLACK,TRIM2#
main71460-10280-04i197802-198005
FB,BLUE,BLUE,TRIM8#
main71460-10280-06i197802-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-10281-01i198005-198208
SEMI FB,BLACK,BLACK,TRIM2#
main71460-10281-04i198005-198208
SEMI FB,BLUE,BLUE,TRIM8#
main71460-10281-06i198005-198208
SEMI FB,LIGHT BROWN,BROWN,TRIM4#
main71460-10290-01i197802-197910
VL,BLACK,BLACK,TRIM2#
main71460-10290-04i197802-197910
VL,BLUE,BLUE,TRIM8#
main71460-10290-06i197802-197910
VL,LIGHT BROWN,BROWN,TRIM4#
main71460-10291-01i197910-198005
VL,BLACK,BLACK,TRIM2#
main71460-10291-04i197910-198005
VL,BLUE,BLUE,TRIM8#
main71460-10291-06i197910-198005
VL,LIGHT BROWN,BROWN,TRIM4#
main71460-10292-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71460-10292-04i198005-198208
VL,BLUE,BLUE,TRIM8#
main71460-10292-06i198005-198208
VL,LIGHT BROWN,BROWN,TRIM4#
main71460-10300-01i197802-197910
PF,BLACK,BLACK,TRIM2#
main71460-10300-04i197802-197910
PF,BLUE,BLUE,TRIM8#
main71460-10300-06i197802-197910
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-10301-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71460-10301-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71460-10301-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-10302-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71460-10302-04i198005-198208
PF,BLUE,BLUE,TRIM8#
main71460-10302-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-10310-01i197802-197910
PF,BLACK,BLACK,TRIM2#
main71460-10310-04i197802-197910
PF,BLUE,BLUE,TRIM8#
main71460-10310-06i197802-197910
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-10311-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71460-10311-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71460-10311-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-10312-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71460-10312-04i198005-198208
PF,BLUE,BLUE,TRIM8#
main71460-10312-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-10321-01i198108-198208
FULL FB,BLACK,BLACK,TRIM2#
main71460-10321-04i198108-198208
FULL FB,BLUE,BLUE,TRIM8#
main71460-10321-06i198005-198108
FULL FB,LIGHT BROWN,BROWN,TRIM4#
main71460-10340-01i198108-198208
FULL FB,BLACK,BLACK,TRIM2#
main71460-10340-04i198108-198208
FULL FB,BLUE,BLUE,TRIM8#
main71460-10340-06i198108-198208
FULL FB,LIGHT BROWN,BROWN,TRIM4#
main71460-10540-02i198208-198409
PF,DARK WINE,RED/MAROON,TRIM3#
main71460-10540-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71460-10540-05i198208-198409
PF,BEIGE,BEIGE,TRIM4#
main71460-10550-02i198208-198409
SEMI FB,DARK WINE,RED/MAROON,TRIM3#
main71460-10550-03i198208-198409
SEMI FB,GRAY,GRAY,TRIM1#
main71460-10550-06i198208-198409
SEMI FB,BROWN,BROWN,TRIM4#
main71460-10560-02i198208-198409
FULL FB,DARK WINE,RED/MAROON,TRIM3#
main71460-10560-03i198208-198409
FULL FB,GRAY,GRAY,TRIM1#
main71460-10560-06i198208-198409
FULL FB,BROWN,BROWN,TRIM4#
main71460-10570-02i198208-198409
SEMI FB,RED,RED/MAROON,TRIM1#
main71460-10570-09i198208-198409
SEMI FB,YELLOW,YELLOW,TRIM1#
main71460-10580-02i198208-198409
PF,DARK WINE,RED/MAROON,TRIM3#
main71460-10580-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71460-10580-05i198208-198409
PF,BEIGE,BEIGE,TRIM4#
main71460-10590-02i198208-198409
SEMI FB,DARK WINE,RED/MAROON,TRIM3#
main71460-10590-03i198208-198409
SEMI FB,GRAY,GRAY,TRIM1#
main71460-10590-06i198208-198409
SEMI FB,BROWN,BROWN,TRIM4#
main71460-10600-02i198208-198409
FULL FB,DARK WINE,RED/MAROON,TRIM3#
main71460-10600-03i198208-198409
FULL FB,GRAY,GRAY,TRIM1#
main71460-10600-06i198208-198409
FULL FB,BROWN,BROWN,TRIM4#
main71460-10610-02i198208-198409
SEMI FB,RED,RED/MAROON,TRIM1#
main71460-10610-09i198208-198409
SEMI FB,YELLOW,YELLOW,TRIM1#
main71460-10620-02i198208-198409
VL,DARK WINE,RED/MAROON,TRIM3#
main71460-10620-03i198208-198409
VL,LIGHT GRAY,GRAY,TRIM1#
main71460-10620-05i198208-198409
VL,BEIGE,BEIGE,TRIM4#
main71460-10630-02i198208-198409
VL,DARK WINE,RED/MAROON,TRIM3#
main71460-10630-03i198208-198409
VL,LIGHT GRAY,GRAY,TRIM1#
main71460-10630-05i198208-198409
VL,BEIGE,BEIGE,TRIM4#
main71460-96440-01i197810-197910
VL,BLACK,BLACK,TRIM2#
main71460-96440-04i197810-197910
VL,BLUE,BLUE,TRIM8#
main71460-96440-06i197810-197910
VL,LIGHT BROWN,BROWN,TRIM4#
main71460-96441-01i197810-197910
PF,BLACK,BLACK,TRIM2#
main71460-96441-04i197810-197910
PF,BLUE,BLUE,TRIM8#
main71460-96441-06i197810-197910
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-96443-01i197810-197910
PF,BLACK,BLACK,TRIM2#
main71460-96443-04i197810-197910
PF,BLUE,BLUE,TRIM8#
main71460-96443-06i197810-197910
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-96444-01i197810-198005
FB,BLACK,BLACK,TRIM2#
main71460-96444-04i197810-198005
FB,BLUE,BLUE,TRIM8#
main71460-96444-06i197810-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-96445-01i197810-198005
FB,BLACK,BLACK,TRIM2#
main71460-96445-04i197810-198005
FB,BLUE,BLUE,TRIM8#
main71460-96445-06i197810-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71460-96446-01i197910-198005
VL,BLACK,BLACK,TRIM2#
main71460-96446-04i197910-198005
VL,BLUE,BLUE,TRIM8#
main71460-96446-06i197910-198005
VL,LIGHT BROWN,BROWN,TRIM4#
main71460-96447-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71460-96447-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71460-96447-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-96448-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71460-96448-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71460-96448-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-96450-01i198005-198208
SEMI FB,BLACK,BLACK,TRIM2#
main71460-96450-06i198005-198208
SEMI FB,LIGHT BROWN,BROWN,TRIM4#
main71460-96451-01i198005-198208
SEMI FB,BLACK,BLACK,TRIM2#
main71460-96451-06i198005-198208
SEMI FB,LIGHT BROWN,BROWN,TRIM4#
main71460-96454-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71460-96454-06i198005-198208
VL,LIGHT BROWN,BROWN,TRIM4#
main71460-96455-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71460-96455-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-96456-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71460-96456-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71460-96459-03i198208-198409
SEMI FB,GRAY,GRAY,TRIM1#
main71460-96459-06i198208-198409
SEMI FB,BROWN,BROWN,TRIM4#
main71460-96461-03i198208-198409
VL,LIGHT GRAY,GRAY,TRIM1#
main71460-96461-05i198208-198409
VL,BEIGE,BEIGE,TRIM4#
main71460-96462-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71460-96462-05i198208-198409
PF,BEIGE,BEIGE,TRIM4#
main71460-96463-03i198208-198409
SEMI FB,GRAY,GRAY,TRIM1#
main71460-96463-06i198208-198409
SEMI FB,BROWN,BROWN,TRIM4#
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
main71480-10360-01i197802-197910
VL,BLACK,BLACK,TRIM2#
main71480-10360-04i197802-197910
VL,BLUE,BLUE,TRIM8#
main71480-10360-06i197802-197910
VL,LIGHT BROWN,BROWN,TRIM4#
main71480-10361-01i197910-198005
VL,BLACK,BLACK,TRIM2#
main71480-10361-04i197910-198005
VL,BLUE,BLUE,TRIM8#
main71480-10361-06i197910-198005
VL,LIGHT BROWN,BROWN,TRIM4#
main71480-10362-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71480-10362-04i198005-198208
VL,BLUE,BLUE,TRIM8#
main71480-10362-06i198005-198208
VL,LIGHT BROWN,BROWN,TRIM4#
main71480-10380-01i197802-197910
FB,BLACK,BLACK,TRIM2#
main71480-10380-04i197802-197910
FB,BLUE,BLUE,TRIM8#
main71480-10380-06i197802-197910
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-10381-01i197910-198005
FB,BLACK,BLACK,TRIM2#
main71480-10381-04i197910-198005
FB,BLUE,BLUE,TRIM8#
main71480-10381-06i197910-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-10390-01i197802-197910
FB,BLACK,BLACK,TRIM2#
main71480-10390-04i197802-197910
FB,BLUE,BLUE,TRIM8#
main71480-10390-06i197802-197910
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-10391-01i197910-198005
FB,BLACK,BLACK,TRIM2#
main71480-10391-04i197910-198005
FB,BLUE,BLUE,TRIM8#
main71480-10391-06i197910-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-10400-01i197802-197910
VL,BLACK,BLACK,TRIM2#
main71480-10400-04i197802-197910
VL,BLUE,BLUE,TRIM8#
main71480-10400-06i197802-197910
VL,LIGHT BROWN,BROWN,TRIM4#
main71480-10401-01i197910-198005
VL,BLACK,BLACK,TRIM2#
main71480-10401-04i197910-198005
VL,BLUE,BLUE,TRIM8#
main71480-10401-06i197910-198005
VL,LIGHT BROWN,BROWN,TRIM4#
main71480-10402-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71480-10402-04i198005-198208
VL,BLUE,BLUE,TRIM8#
main71480-10402-06i198005-198208
VL,LIGHT BROWN,BROWN,TRIM4#
main71480-10410-01i197802-197910
PF,BLACK,BLACK,TRIM2#
main71480-10410-04i197802-197910
PF,BLUE,BLUE,TRIM8#
main71480-10410-06i197802-197910
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-10411-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71480-10411-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71480-10411-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-10412-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71480-10412-04i198005-198208
PF,BLUE,BLUE,TRIM8#
main71480-10412-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-10420-01i197802-197910
PF,BLACK,BLACK,TRIM2#
main71480-10420-04i197802-197910
PF,BLUE,BLUE,TRIM8#
main71480-10420-06i197802-197910
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-10421-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71480-10421-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71480-10421-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-10422-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71480-10422-04i198005-198208
PF,BLUE,BLUE,TRIM8#
main71480-10422-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-10650-02i198208-198409
PF,DARK WINE,RED/MAROON,TRIM3#
main71480-10650-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71480-10650-05i198208-198409
PF,BEIGE,BEIGE,TRIM4#
main71480-10690-02i198208-198409
PF,DARK WINE,RED/MAROON,TRIM3#
main71480-10690-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71480-10690-05i198208-198409
PF,BEIGE,BEIGE,TRIM4#
main71480-10730-02i198208-198409
VL,DARK WINE,RED/MAROON,TRIM3#
main71480-10730-03i198208-198409
VL,LIGHT GRAY,GRAY,TRIM1#
main71480-10730-05i198208-198409
VL,BEIGE,BEIGE,TRIM4#
main71480-10740-02i198208-198409
VL,DARK WINE,RED/MAROON,TRIM3#
main71480-10740-03i198208-198409
VL,LIGHT GRAY,GRAY,TRIM1#
main71480-10740-05i198208-198409
VL,BEIGE,BEIGE,TRIM4#
main71480-10770-02i198208-198409
SEMI FB,DARK WINE,RED/MAROON,TRIM3#
main71480-10770-03i198208-198409
SEMI FB,GRAY,GRAY,TRIM1#
main71480-10770-06i198208-198409
SEMI FB,BROWN,BROWN,TRIM4#
main71480-10780-02i198208-198409
SEMI FB,DARK WINE,RED/MAROON,TRIM3#
main71480-10780-03i198208-198409
SEMI FB,GRAY,GRAY,TRIM1#
main71480-10780-06i198208-198409
SEMI FB,BROWN,BROWN,TRIM4#
main71480-96440-01i197810-197910
VL,BLACK,BLACK,TRIM2#
main71480-96440-04i197810-197910
VL,BLUE,BLUE,TRIM8#
main71480-96440-06i197810-197910
VL,LIGHT BROWN,BROWN,TRIM4#
main71480-96441-01i197810-197910
PF,BLACK,BLACK,TRIM2#
main71480-96441-04i197810-197910
PF,BLUE,BLUE,TRIM8#
main71480-96441-06i197810-197910
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-96443-01i197810-197910
PF,BLACK,BLACK,TRIM2#
main71480-96443-04i197810-197910
PF,BLUE,BLUE,TRIM8#
main71480-96443-06i197810-197910
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-96444-01i197810-198005
FB,BLACK,BLACK,TRIM2#
main71480-96444-04i197810-198005
FB,BLUE,BLUE,TRIM8#
main71480-96444-06i197810-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-96445-01i197810-198005
FB,BLACK,BLACK,TRIM2#
main71480-96445-04i197810-198005
FB,BLUE,BLUE,TRIM8#
main71480-96445-06i197810-198005
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-96446-01i197910-198005
VL,BLACK,BLACK,TRIM2#
main71480-96446-04i197910-198005
VL,BLUE,BLUE,TRIM8#
main71480-96446-06i197910-198005
VL,LIGHT BROWN,BROWN,TRIM4#
main71480-96447-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71480-96447-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71480-96447-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-96448-01i197910-198005
PF,BLACK,BLACK,TRIM2#
main71480-96448-04i197910-198005
PF,BLUE,BLUE,TRIM8#
main71480-96448-06i197910-198005
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-96450-01i198005-198208
SEMI FB,BLACK,BLACK,TRIM2#
main71480-96450-06i198005-198208
SEMI FB,LIGHT BROWN,BROWN,TRIM4#
main71480-96451-01i198005-198208
FB,BLACK,BLACK,TRIM2#
main71480-96451-06i198005-198208
FB,LIGHT BROWN,BROWN,TRIM4#
main71480-96454-01i198005-198208
VL,BLACK,BLACK,TRIM2#
main71480-96454-06i198005-198208
VL,LIGHT BROWN,BROWN,TRIM4#
main71480-96455-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71480-96455-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-96456-01i198005-198208
PF,BLACK,BLACK,TRIM2#
main71480-96456-06i198005-198208
PF,LIGHT BROWN,BROWN,TRIM4#
main71480-96459-03i198208-198409
SEMI FB,GRAY,GRAY,TRIM1#
main71480-96459-06i198208-198409
SEMI FB,BROWN,BROWN,TRIM4#
main71480-96461-03i198208-198409
VL,LIGHT GRAY,GRAY,TRIM1#
main71480-96461-05i198208-198409
VL,BEIGE,BEIGE,TRIM4#
main71480-96462-03i198208-198409
PF,LIGHT GRAY,GRAY,TRIM1#
main71480-96462-05i198208-198409
PF,BEIGE,BEIGE,TRIM4#
main71480-96463-03i198208-198409
SEMI FB,GRAY,GRAY,TRIM1#
main71480-96463-06i198208-198409
SEMI FB,BROWN,BROWN,TRIM4#
71812BCLIP(FOR REAR SEAT CUSHION COVER)
main71812-30010i197802-198409
72619COVER, REAR SEATBACK LOCK STRIKER
main72615-10010i197903-198409
RH,WEST GERMANY SPEC
main72616-10010i197903-198409
LH,WEST GERMANY SPEC
72620LOCK ASSY, REAR SEATBACK
main72630-10020i197802-198005
RH
main72630-10030i198005-198208
RH
main72630-10060i198208-198409
RH
main72630-96440i197810-198005
RH
main72630-96441i197810-198005
RH
main72630-96442i198005-198409
RH
main72630-96443i198005-198409
RH
main72640-10010i197802-198005
LH
main72640-10020i198005-198208
LH
main72640-10050i198208-198409
LH
main72640-96440i197810-198005
LH
main72640-96441i197810-198005
LH
main72640-96442i198005-198409
LH
main72640-96443i198005-198409
LH
72693HOOK, REAR SEAT CUSHION LOCK
main72693-10020×2i197802-198005
main72693-10021×2i198005-198208
main72693-10030×2i198208-198409
72703STRIKER SUB-ASSY, REAR SEATBACK STOPPER
main72601-10020i197802-198409
RH
main72601-13030i197810-198409
RH
main72602-10010i197802-198409
LH
main72604-13030i197810-198409
LH
9015980127
main90159-80127

12 parts on this diagram · 6 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
