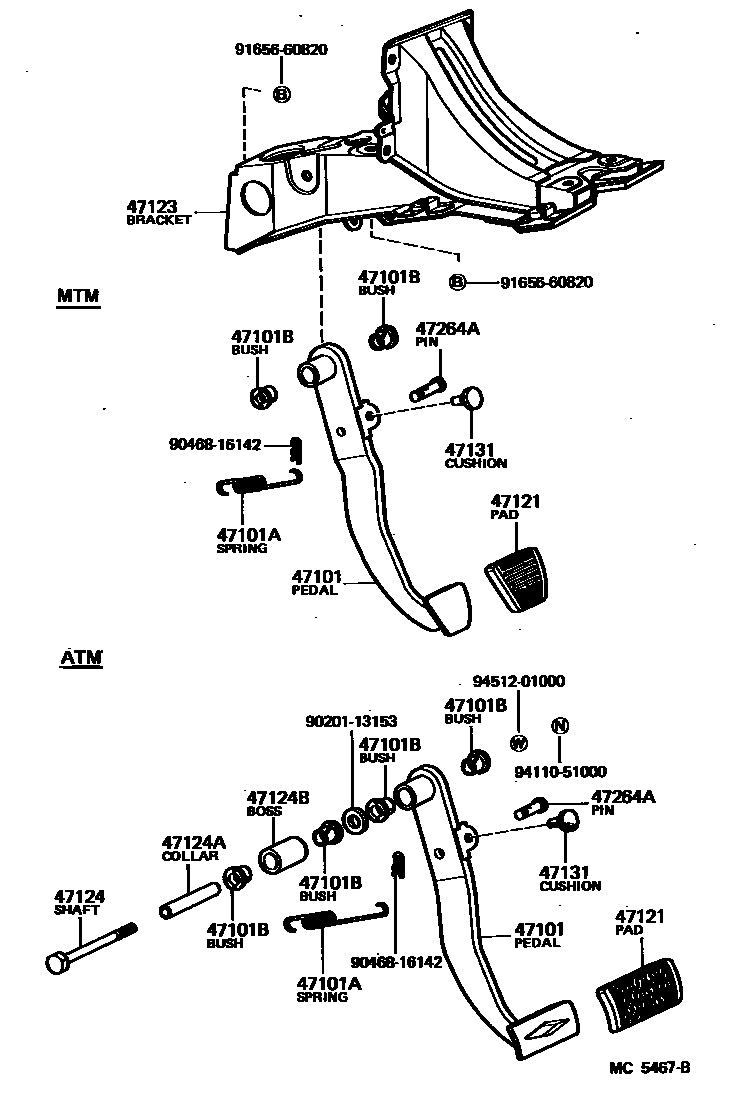

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-10110iKP6#..RHD197802-198108

main47101-10120iKP6#..LHD..MTM197802-198409

main47101-10140iKP6#..RHD..MTM198108-198409

main47101-10150iKP61..LHD..3FC198108-198409

main47101-10160iKP61..RHD..3FC198108-198409

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-16333iKP6#197802-198409

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007×2iKP6#..MTM197802-198409

47121PAD, BRAKE PEDAL

main31321-14010iKP6#..MTM197802-198409

main47121-12020iKP61..3FC198108-198409

47123BRACKET, BRAKE PEDAL

main55106-10080iKP6#..RHD197802-198208

main55106-10090iKP6#..LHD197802-198208

main55106-10150iKP6#..RHD198208-198409

main55106-10160iKP6#..LHD198208-198409

main55106-10190iKP6#..LHD..EUG198208-198409

WEST GERMANY SPEC

47124SHAFT, BRAKE PEDAL

main90101-10480iKP61..LHD..3FC198108-198409

main90101-10490iKP61..RHD..3FC198108-198409

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10022iKP61..3FC198108-198409

47124BBOSS, BRAKE PEDAL

main31313-10030iKP61..RHD..3FC198108-198409

main31313-10040iKP61..LHD..3FC198108-198409

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iKP6#197802-198409

47264APIN(FOR PUSH ROD)

main90249-08051iKP6#197802-198409

9020113153

main90201-13153

9046816142

main90468-16142

9165660820

main91656-60820

9411051000

main94110-51000

9451201000

main94512-01000

15 parts on this diagram · 2 diagrams in section
