WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-19015i2K,3K#,4K#..KP6#197802-198304

main16100-19016i2K,4K#..KP6#198304-198409

16100KPUMP KIT, WATER

main04161-13010i2K,3K#..KP6#197802-198106

main04161-13011i2K,3K#,4K#..KP6#198106-198304

main04161-13012i2K,4K#..KP6#198304-198409

16100LROTOR KIT, WATER PUMP

main04162-13010i2K,3K#..KP6#197802-197910

main04162-13011i2K,3K#..KP6#197910-198106

main04162-13012i2K,3K#,4K#..KP6#198106-198304

16104SEAL SET, WATER PUMP

main16104-15020i2K,4K#..KP6#198311-198409

main16104-41110i2K,3K#..KP6#197802-197903

main16104-41111i2K,3K#,4K#..KP6#197903-198304

main16104-41112i2K,4K#..KP6#198304-198311

16117PLATE, WATER PUMP

main16117-13010i2K,3K#,4K#..KP6#197802-198304

main16117-13011i2K,4K#..KP6#198304-198409

16119GASKET, WATER PUMP BODY

main16124-22010i2K,3K#..KP6#197802-198106

main16124-22011i2K,3K#,4K#..KP6#198106-198304

main16124-22012i2K,4K#..KP6#198304-198409

16131ROTOR, WATER PUMP

main16131-13010i2K,3K#,4K#..KP6#197802-198409

16131ABEARING, WATER PUMP

main90369-30063i2K,3K#,4K#..KP6#197802-198409

16171SEAT, WATER PUMP PULLEY

main16171-24031i2K,3K#,4K#..KP6#197802-198409

16271GASKET, WATER PUMP

main16271-13020i2K,3K#..KP6#197812-198108

main16271-13021i2K,3KH,4K#..KP6#198108-198409

main16271-22010i2K,3K#..KP6#197802-197812

16371PULLEY, FAN

main16371-24050i2K,3K#,4K#..KP6#197802-198409

9033916007

main90339-16007

9161160835

main91611-60835

9161160850

main91611-60850

9322016014

main93220-16014

9611210270

main96112-10270

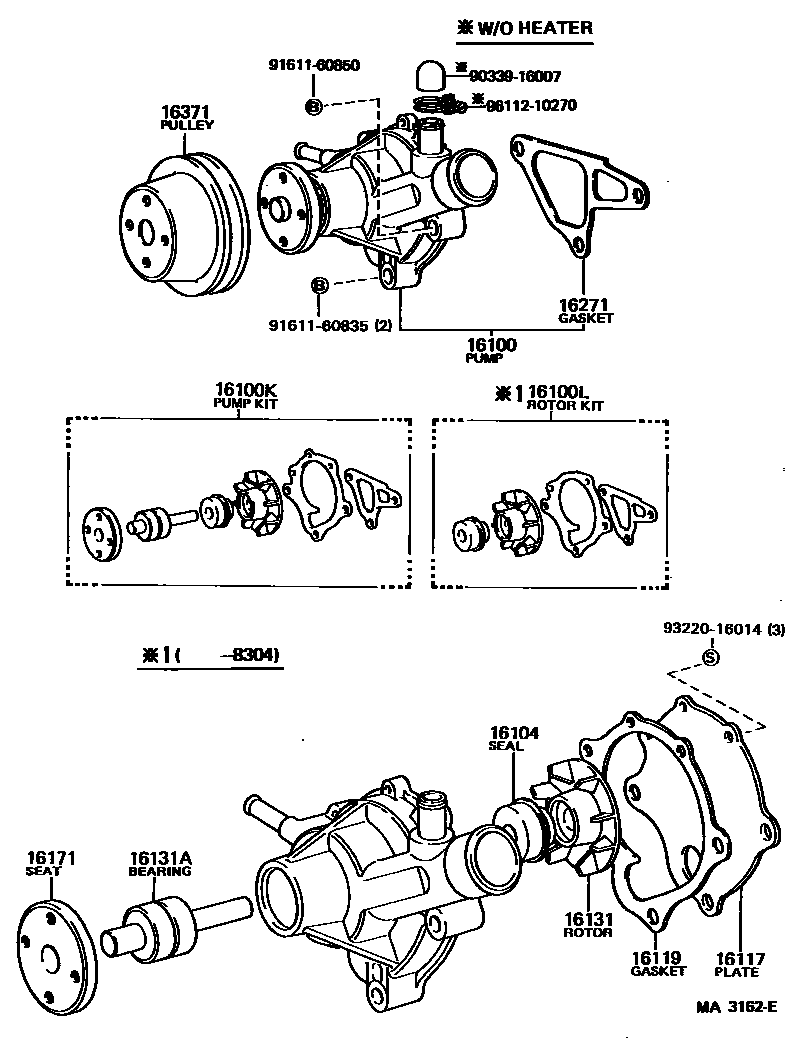

16 parts on this diagram · 1 diagram in section
