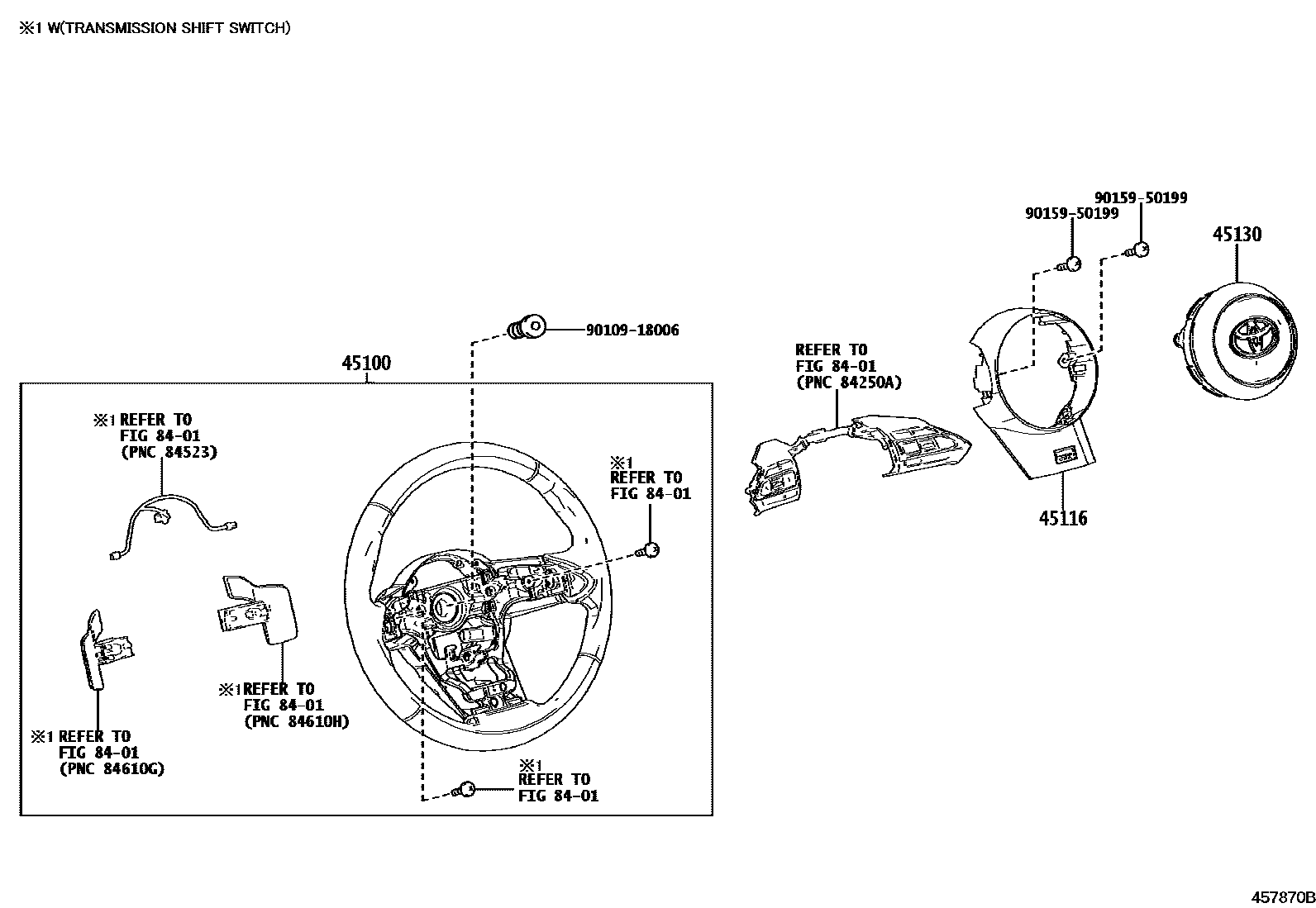

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-52690-C1i202404-202505

3-SPOKE,LEATHER,BLACK,TRIM3#

main45100-52690-C2i202404-202505

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-52700-C1supersedes 45100-52690-C1i202410

3-SPOKE,LEATHER,BLACK,TRIM3#

main45100-52700-C2supersedes 45100-52690-C2i202410

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-52780-C1i202404-202505

3-SPOKE,LEATHER,BLACK,TRIM3#

main45100-52780-C2i202404-202505

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-52790-C1i202410

3-SPOKE,LEATHER,BLACK,TRIM3#

main45100-52790-C2i202410

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-52B90-C2i202404-202505

3-SPOKE,LEATHER,KALLE ROVANPERA EDITION *(K)&SEAT HEATER-WITH,BLACK/BLUE/ECRU/RED,TRIM20; 3-SPOKE,LEATHER,KALLE ROVANPERA EDITION *(K)&STEERING WHEEL-LEATHER, WITH(STEERINGHEATER)(DIA.365),BLACK/BLUE/ECRU/RED,TRIM20; 3-SPOKE,LEATHER,SEBASTIEN OGIER EDITION *(S)&SEAT HEATER-WITH,BLACK/BLUE/ECRU/RED,TRIM20; 3-SPOKE,LEATHER,SEBASTIEN OGIER EDITION *(S)&STEERING WHEEL-LEATHER, WITH(STEERINGHEATER)(DIA.365),BLACK/BLUE/ECRU/RED,TRIM20

main45100-52B90-C4i202404-202505

3-SPOKE,LEATHER,KALLE ROVANPERA EDITION *(K)&SEAT HEATER-WITH,BLACK/ECRU/BLUE/ECRU,TRIM20; 3-SPOKE,LEATHER,KALLE ROVANPERA EDITION *(K)&STEERING WHEEL-LEATHER, WITH(STEERINGHEATER)(DIA.365),BLACK/ECRU/BLUE/ECRU,TRIM20; 3-SPOKE,LEATHER,SEBASTIEN OGIER EDITION *(S)&SEAT HEATER-WITH,BLACK/ECRU/BLUE/ECRU,TRIM20; 3-SPOKE,LEATHER,SEBASTIEN OGIER EDITION *(S)&STEERING WHEEL-LEATHER, WITH(STEERINGHEATER)(DIA.365),BLACK/ECRU/BLUE/ECRU,TRIM20

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-52210i202008-202204

main45116-52210-B0i202204-202404

SMOKE SILVER METALLIC,TRIM2#

main45116-52210-B1i202404

GR GUNMETAL,TRIM2#,3#

45130BUTTON ASSY, HORN

main45130-K0020-C0i202008-202404

BLACK,TRIM2#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010918006

main90109-18006

9015950199

main90159-50199

6 parts on this diagram · 1 diagram in section
