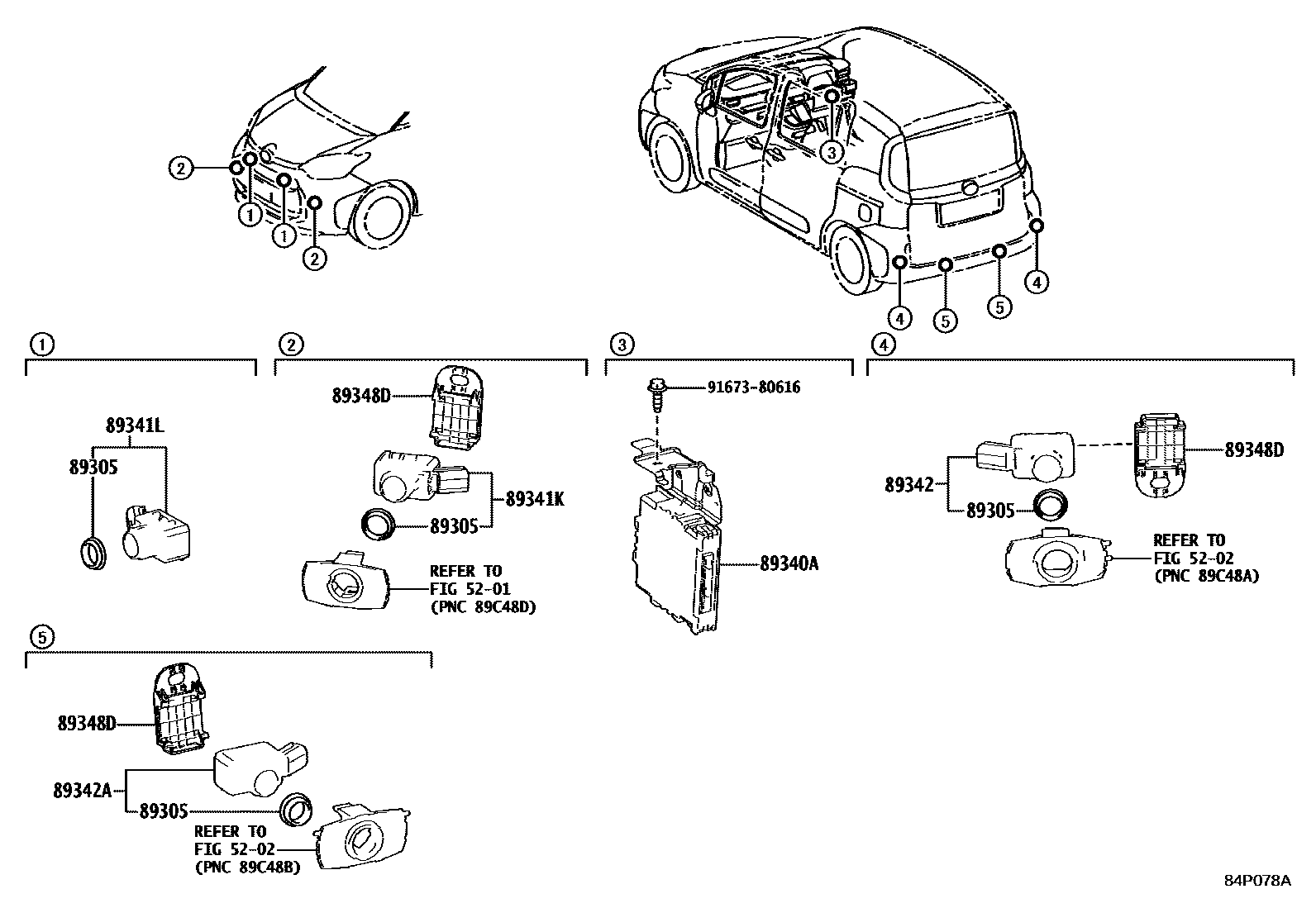

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
*614
89341KSENSOR, ULTRASONIC, FRONT CORNER
WHITE PEARL CS.,070
WHITE PEARL CS.,070 ,2WQ
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2YP
BLACK,202
BLACK MC.,202
BEIGE,4V6
BEIGE,2WS ,4V6
CLEAR BEIGE ME.,2WT ,4Y3
CLEAR BEIGE ME.,4Y3
URBAN KHAKI,2WU ,6X3
URBAN KHAKI,6X3
GRAYISH BLUE,8W2
GRAYISH BLUE,2WV ,8W2
DK.GRAY,1L7
SCARLET ME.,3U4
SCARLET ME.,2WR ,3U4
89341LSENSOR, ULTRASONIC, FRONT CENTER
DUMMY-MAT BLACK
89342SENSOR, ULTRASONIC, REAR CORNER
WHITE PEARL CS.,070
WHITE PEARL CS.,070 ,2WQ
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2YP
BLACK,202
BLACK MC.,202
BEIGE,4V6
BEIGE,2WS ,4V6
CLEAR BEIGE ME.,4Y3
CLEAR BEIGE ME.,2WT ,4Y3
URBAN KHAKI,6X3
URBAN KHAKI,2WU ,6X3
GRAYISH BLUE,2WV ,8W2
GRAYISH BLUE,8W2
DK.GRAY,1L7
SCARLET ME.,2WR ,3U4
SCARLET ME.,3U4
89342ASENSOR, ULTRASONIC, REAR CENTER
WHITE PEARL CS.,070
WHITE PEARL CS.,070 ,2WQ
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2YP
BLACK,202
BLACK MC.,202
BEIGE,2WS ,4V6
BEIGE,4V6
CLEAR BEIGE ME.,4Y3
CLEAR BEIGE ME.,2WT ,4Y3
URBAN KHAKI,6X3
URBAN KHAKI,2WU ,6X3
GRAYISH BLUE,2WV ,8W2
GRAYISH BLUE,8W2
DK.GRAY,1L7
SCARLET ME.,2WR ,3U4
SCARLET ME.,3U4
89348DCLIP, ULTRASONIC SENSOR
9167380616
main91673-80616
10 parts on this diagram · 1 diagram in section
