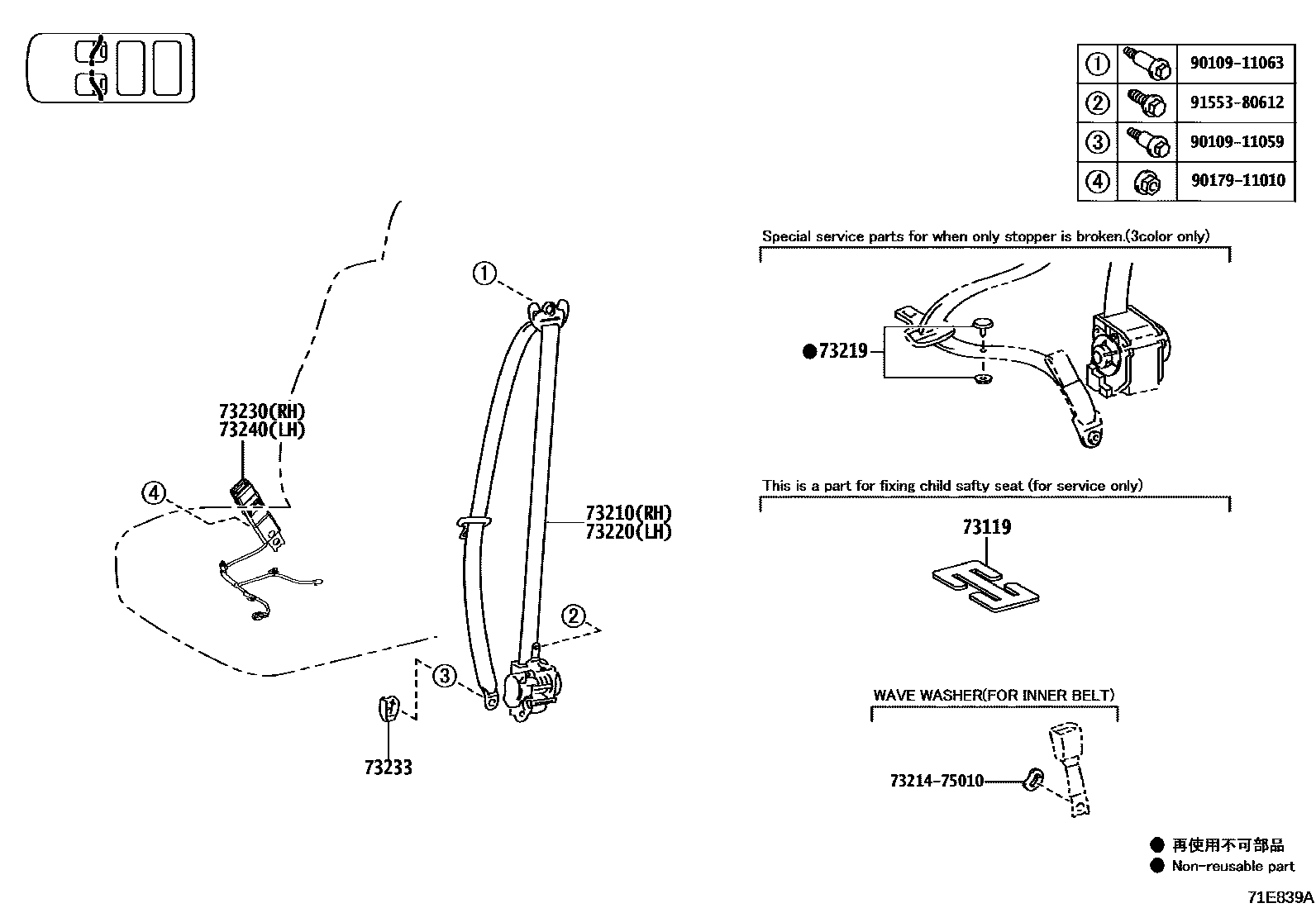

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.1 SEAT 0004 1REAR NO.2 SEAT

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iMXPC10..N202207-202405

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-52A70-C0iMXPC10..N202207-202405

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iMXPC10..N202207-202405

BLACK

main73219-33020iMXPC10..N202207-202405

GRAY

main73219-33030iMXPC10..N202207-202405

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-52B00-C0iMXPC10..N202207-202405

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-52C90-C0iMXPC10..N202207-202405

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iMXPC10..N202207-202405

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-52D00-C0iMXPC10..N202207-202405

BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010911059

main90109-11059

9010911063

main90109-11063

9017911010

main90179-11010

9155380612

main91553-80612

12 parts on this diagram · 4 diagrams in section
