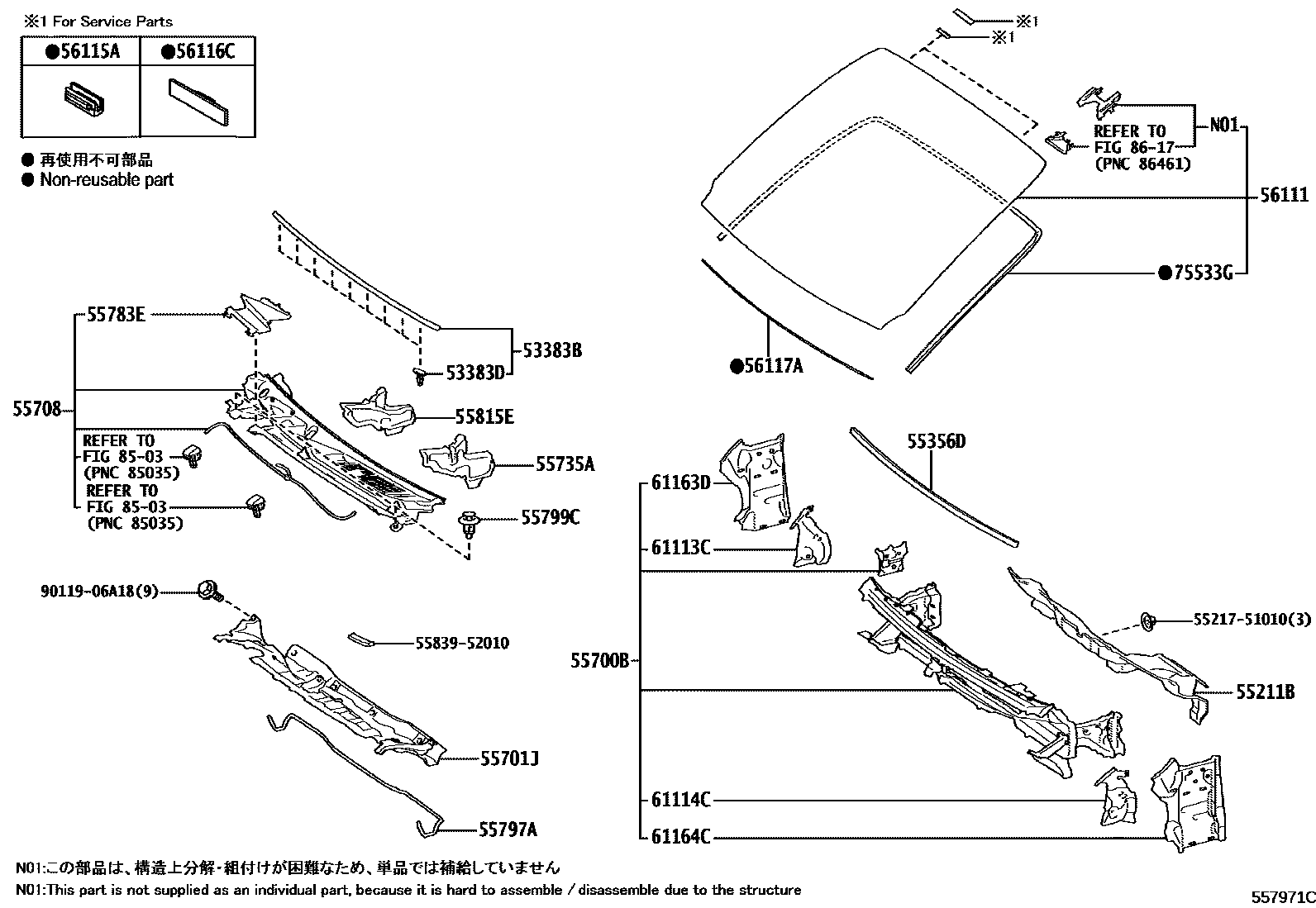

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-52250iMXPC10..N202207-202405

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×9iMXPC10..N202207-202405

55211BSILENCER, FRONT PANEL

main55211-52190iMXPC10..N202207-202405

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-52310iMXPC10..N202207-202405

55700BCOWL ASSY

main55700-52490iMXPC10..N202207-202405

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-52440iMXPC10..N202207-202405

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52500iMXPC10..N202207-202405

55735APLATE, WATER GUARD, LH

main55735-52190iMXPC10..N202207-202405

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-52360iMXPC10..N202207-202405

55797ASEAL, COWL WATER EXTRACT

main55797-52080iMXPC10..N202207-202405

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C7×2iMXPC10..N202207-202405

BLACK

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-52110iMXPC10..N202207-202405

56111GLASS, WINDSHIELD

main56101-52M70iMXPC10..N202207-202405

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iMXPC10..N202207-202405

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iMXPC10..N202207-202405

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50140iMXPC10..N202207-202405

*D,L=1217

61113CPANEL, SIDE, INNER RH

main61113-52040iMXPC10..N202207-202405

61114CPANEL, SIDE, INNER LH

main61114-52040iMXPC10..N202207-202405

61163DPILLAR, FRONT BODY, LOWER INNER RH

main61021-52020iMXPC10..N202207-202405

61164CPILLAR, FRONT BODY, LOWER INNER LH

main61164-52090iMXPC10..N202207-202405

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-52330iMXPC10..N202207-202405

8503WINDSHIELD WASHER

→ Go to FIG 85-03

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

5521751010STRIP, DASH PANEL SILENCER FINISH

main55217-51010

5583952010

main55839-52010

9011906A18

main90119-06A18

26 parts on this diagram · 1 diagram in section
