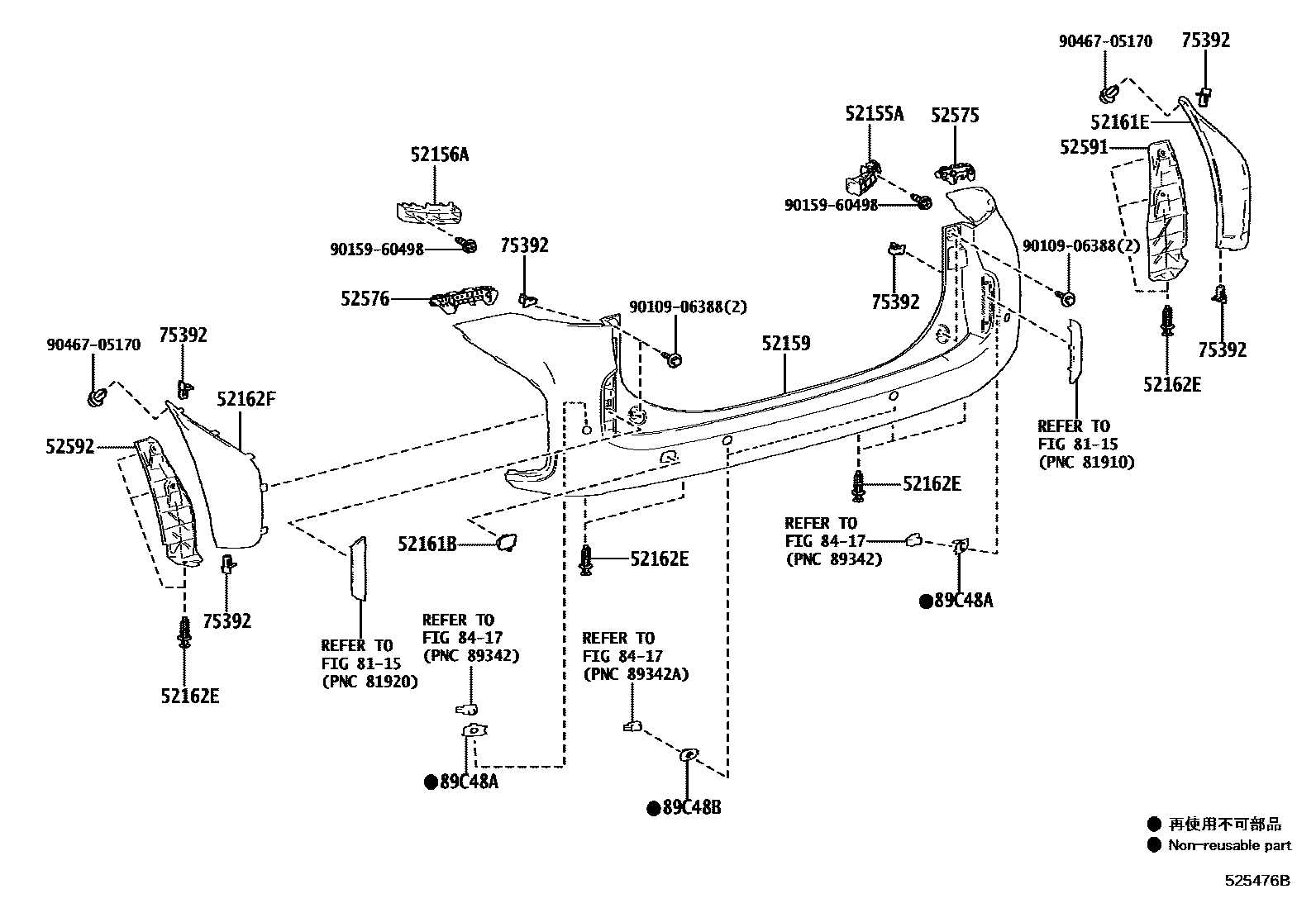

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-52170iMXPC10..N202207-202405

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-52170iMXPC10..N202207-202405

52159COVER, REAR BUMPER

main52159-5C916iMXPC10..N202207-202405

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-52230-A1iMXPC10,MXPL10..N; MXPC10,MXPL10..U202207-202405

WHITE PEARL CS.,070; WHITE PEARL CS.,070 ,2WQ

main52161-52230-A2iMXPC10,MXPL10..U; MXPL10..N202405

PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2YP

main52161-52230-B0iMXPC10..N202207-202405

DK.GRAY,1L7

main52161-52230-C0iMXPC10..N202207-202405

BLACK,202

main52161-52230-D0iMXPC10,MXPL10..U; MXPL10..N202207

SCARLET ME.,2WR ,3U4; SCARLET ME.,3U4

main52161-52230-E0iMXPC10,MXPL10..U; MXPL10..N202207

BEIGE,2WS ,4V6; BEIGE,4V6

main52161-52230-E1iMXPC10,MXPL10..U; MXPL10..N202207

CLEAR BEIGE ME.,2WT ,4Y3; CLEAR BEIGE ME.,4Y3

main52161-52230-G0iMXPC10,MXPL10..U; MXPL10..N202207

URBAN KHAKI,2WU ,6X3; URBAN KHAKI,6X3

main52161-52230-J0iMXPC10,MXPL10..U; MXPL10..N202207

GRAYISH BLUE,2WV ,8W2; GRAYISH BLUE,8W2

52161EEXTENSION, REAR BUMPER SIDE, RH

main52161-52210iMXPL10;MXPC10..U202207

52162EPIECE, REAR BUMPER

main52161-16010×11iMXPL10;MXPC10..U202207

52162FEXTENSION, REAR BUMPER SIDE, LH

main52162-52230iMXPL10;MXPC10..U202207

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52260iMXPC10..N202207-202405

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52240iMXPL10;MXPC10..U202207

52591SEAL, REAR BUMPER SIDE, RH

main52591-52460iMXPC10..N202207-202405

52592SEAL, REAR BUMPER SIDE, LH

main52592-52460iMXPL10;MXPC10..U202207

75392RETAINER, OUTSIDE MOULDING

main75392-52030×6iMXPC10..N202207-202405

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-33270-A0iMXPC10,MXPL10..U; MXPL10..N202405

PLATINUM WHITE PEARL MC.,089 ,2YP,RH; PLATINUM WHITE PEARL MC.,089,RH

main89348-33270-A2iMXPC10,MXPL10..N; MXPC10,MXPL10..U202207-202405

WHITE PEARL CS.,070 ,2WQ,RH; WHITE PEARL CS.,070,RH

main89348-33270-C3iMXPL10;MXPC10..U202207

BLACK,202,RH

main89348-33270-D2iMXPC10,MXPL10..U; MXPL10..N202207

SCARLET ME.,2WR ,3U4,RH; SCARLET ME.,3U4,RH

main89348-33270-E5iMXPC10,MXPL10..U; MXPL10..N202207

BEIGE,2WS ,4V6,RH; BEIGE,4V6,RH

main89348-33270-E6iMXPC10,MXPL10..U; MXPL10..N202207

CLEAR BEIGE ME.,2WT ,4Y3,RH; CLEAR BEIGE ME.,4Y3,RH

main89348-33270-G0iMXPC10,MXPL10..U; MXPL10..N202207

URBAN KHAKI,2WU ,6X3,RH; URBAN KHAKI,6X3,RH

main89348-33270-J6iMXPC10,MXPL10..U; MXPL10..N202207

GRAYISH BLUE,2WV ,8W2,RH; GRAYISH BLUE,8W2,RH

main89348-33270-P0iMXPC10..N202207-202405

DK.GRAY,1L7,RH

main89348-33280-A0iMXPC10,MXPL10..U; MXPL10..N202405

PLATINUM WHITE PEARL MC.,089 ,2YP,LH; PLATINUM WHITE PEARL MC.,089,LH

main89348-33280-A2iMXPC10,MXPL10..N; MXPC10,MXPL10..U202207-202405

WHITE PEARL CS.,070 ,2WQ,LH; WHITE PEARL CS.,070,LH

main89348-33280-C3iMXPL10;MXPC10..U202207

BLACK,202,LH

main89348-33280-D2iMXPC10,MXPL10..U; MXPL10..N202207

SCARLET ME.,2WR ,3U4,LH; SCARLET ME.,3U4,LH

main89348-33280-E5iMXPC10,MXPL10..U; MXPL10..N202207

BEIGE,2WS ,4V6,LH; BEIGE,4V6,LH

main89348-33280-E6iMXPC10,MXPL10..U; MXPL10..N202207

CLEAR BEIGE ME.,2WT ,4Y3,LH; CLEAR BEIGE ME.,4Y3,LH

main89348-33280-G0iMXPC10,MXPL10..U; MXPL10..N202207

URBAN KHAKI,2WU ,6X3,LH; URBAN KHAKI,6X3,LH

main89348-33280-J6iMXPC10,MXPL10..U; MXPL10..N202207

GRAYISH BLUE,2WV ,8W2,LH; GRAYISH BLUE,8W2,LH

main89348-33280-P0iMXPL10;MXPC10..U202207

DK.GRAY,1L7,LH

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-52250-A1×2iMXPC10,MXPL10..N; MXPC10,MXPL10..U202207-202405

WHITE PEARL CS.,070; WHITE PEARL CS.,070 ,2WQ

main89348-52250-A2×2iMXPC10,MXPL10..U; MXPL10..N202405

PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2YP

main89348-52250-B0×2iMXPC10..N202207-202405

DK.GRAY,1L7

main89348-52250-C0×2iMXPC10..N202207-202405

BLACK,202

main89348-52250-D0×2iMXPC10,MXPL10..U; MXPL10..N202207

SCARLET ME.,2WR ,3U4; SCARLET ME.,3U4

main89348-52250-E0×2iMXPC10,MXPL10..U; MXPL10..N202207

BEIGE,2WS ,4V6; BEIGE,4V6

main89348-52250-E1×2iMXPC10,MXPL10..U; MXPL10..N202207

CLEAR BEIGE ME.,2WT ,4Y3; CLEAR BEIGE ME.,4Y3

main89348-52250-G0×2iMXPC10,MXPL10..U; MXPL10..N202207

URBAN KHAKI,2WU ,6X3; URBAN KHAKI,6X3

main89348-52250-J0×2iMXPC10,MXPL10..U; MXPL10..N202207

GRAYISH BLUE,2WV ,8W2; GRAYISH BLUE,8W2

9010906388

main90109-06388

9015960498

main90159-60498

9046705170

main90467-05170

19 parts on this diagram · 1 diagram in section
