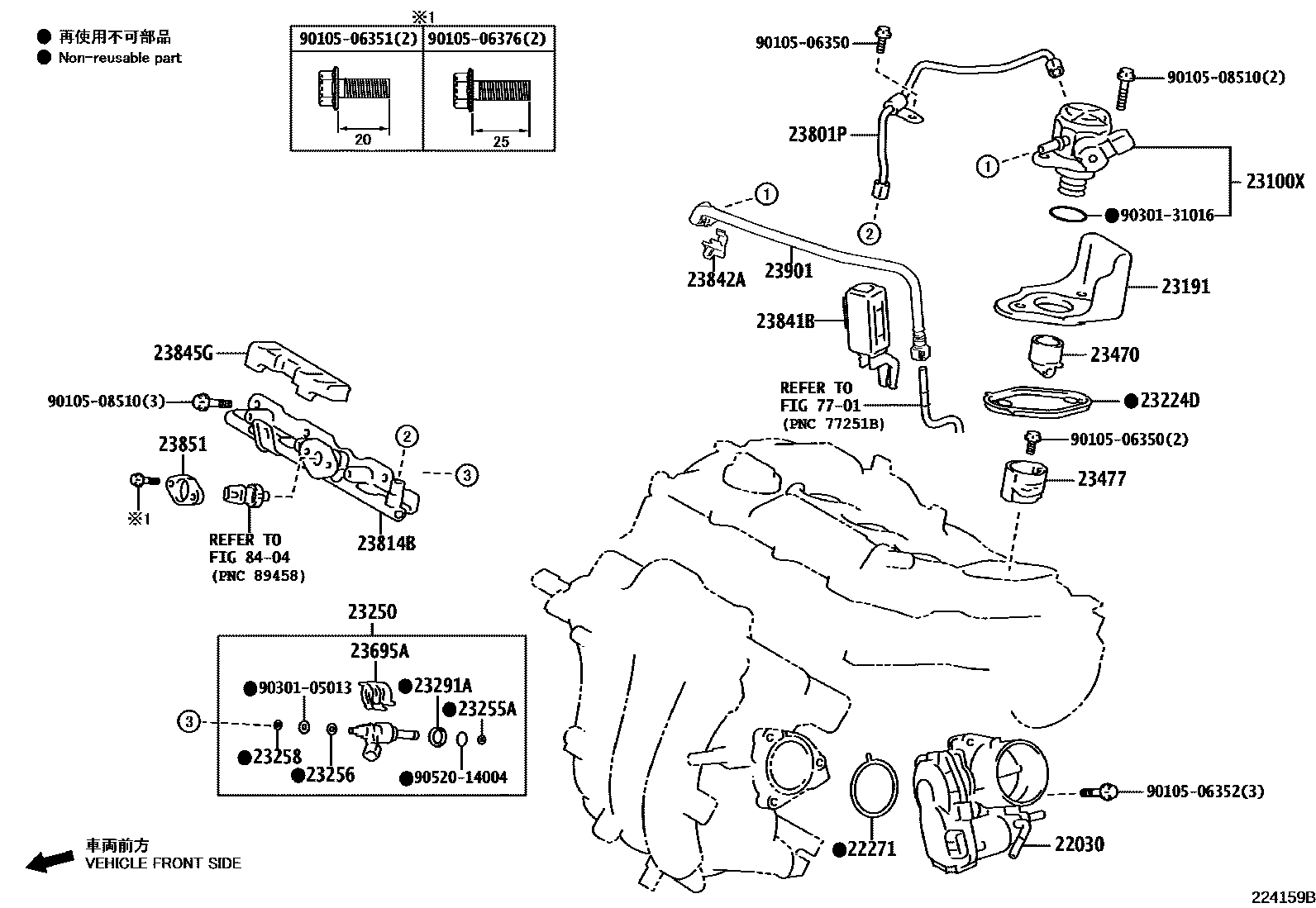

FUEL INJECTION SYSTEM
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23191FLANGE, FUEL PUMP
23224DGASKET, FUEL PUMP SPACER
23250INJECTOR ASSY, FUEL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 9,REFER REPAIR MANUAL
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23814BPIPE, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23845GINSULATOR, FUEL DELIVERY
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
23901TUBE SUB-ASSY, FUEL
7701FUEL TANK & TUBE
8404ELECTRONIC FUEL INJECTION SYSTEM
9010506350
main90105-06350
9010506351
main90105-06351
9010506352
main90105-06352
9010506376
main90105-06376
9010508510
main90105-08510
9030105013
main90301-05013
9030131016
main90301-31016
9052014004
main90520-14004
31 parts on this diagram · 2 diagrams in section
