ENGINE OVERHAUL GASKET KIT

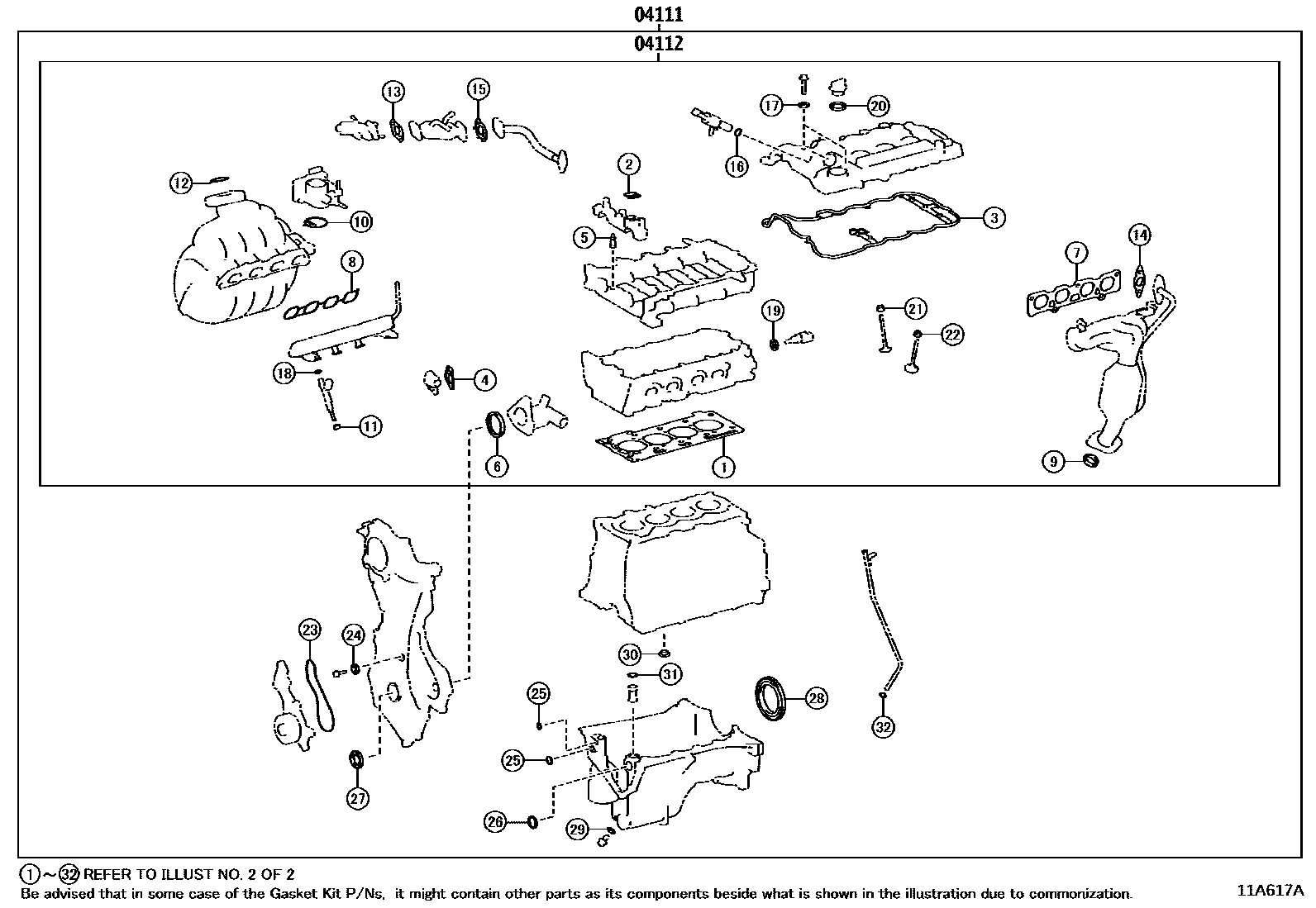

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-21324i201507-201604

main04111-21325i201604-201809

main04111-21326i201811-202207

main04111-47260i201506-201806

main04111-47261i201806-201809

main04111-47262i202002-202207

04112GASKET KIT, ENGINE VALVE GRIND

main04112-21323i201507-201604

main04112-21324i201809-201811

main04112-21325i201811-202207

main04112-47170i201506-201806

main04112-47171i201806-201809

main04112-47172i202002-202207

2 parts on this diagram · 4 diagrams in section
