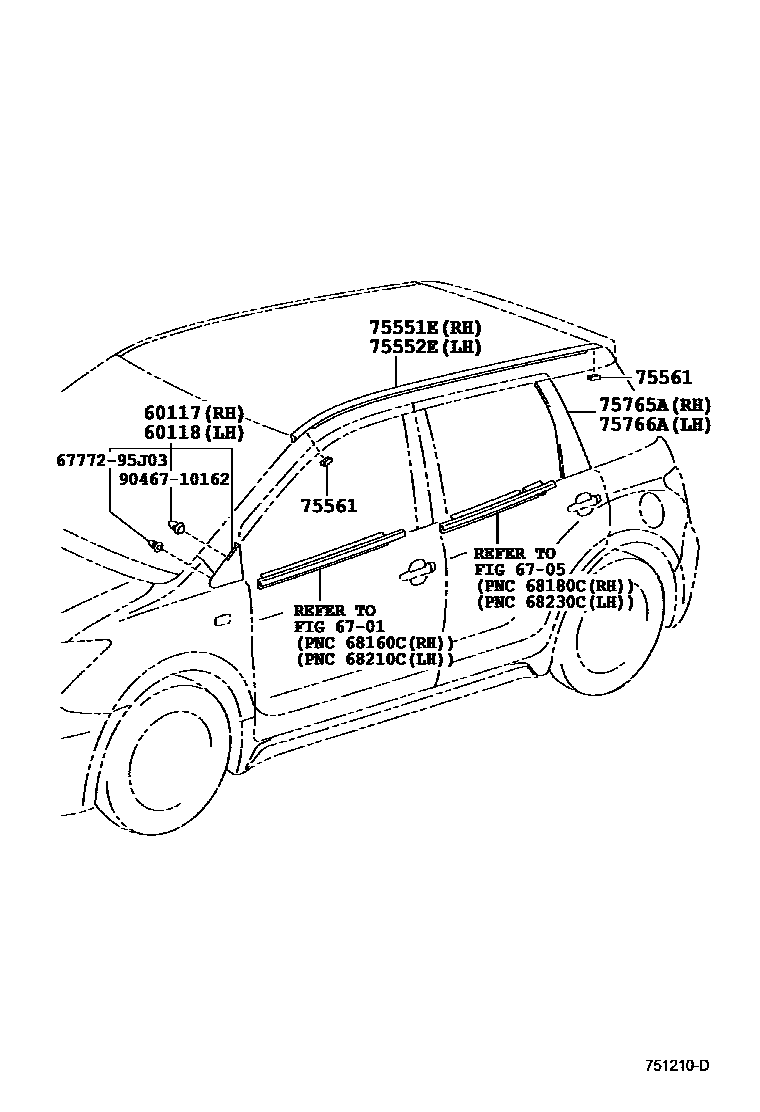

SIDE MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-52020iNCP61200308-200507

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-52020iNCP61200308-200507

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-52090iNCP61200308-200507

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75551-52090iNCP61200308-200507

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030×4iNCP61200308-200507

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-52011iNCP61200308-200507

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-52011iNCP61200308-200507

6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J03

9046710162

main90467-10162

11 parts on this diagram · 1 diagram in section
