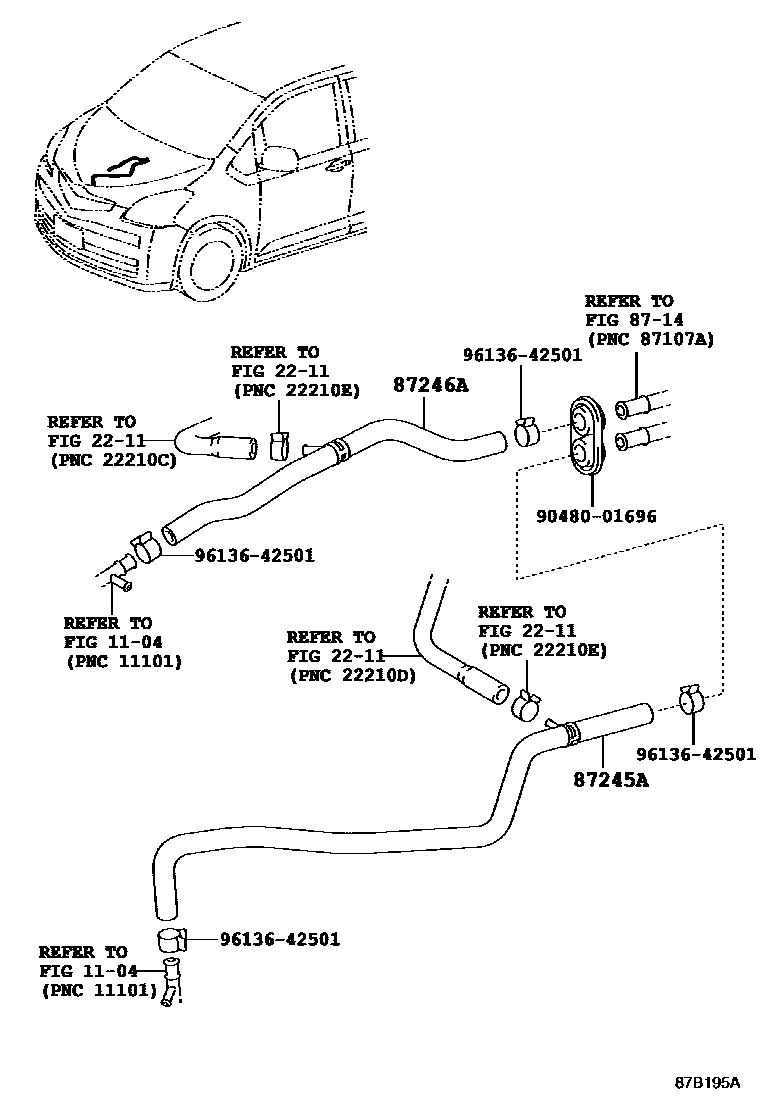

HEATING & AIR CONDITIONING - WATER PIPING

1104CYLINDER HEAD

→ Go to FIG 11-04

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87209-52170iSCP100200910-201008

87246AHOSE, HEATER WATER, OUTLET A

main87209-52180iSCP100200910

9048001696

main90480-01696

9613642501

main96136-42501

7 parts on this diagram · 1 diagram in section
