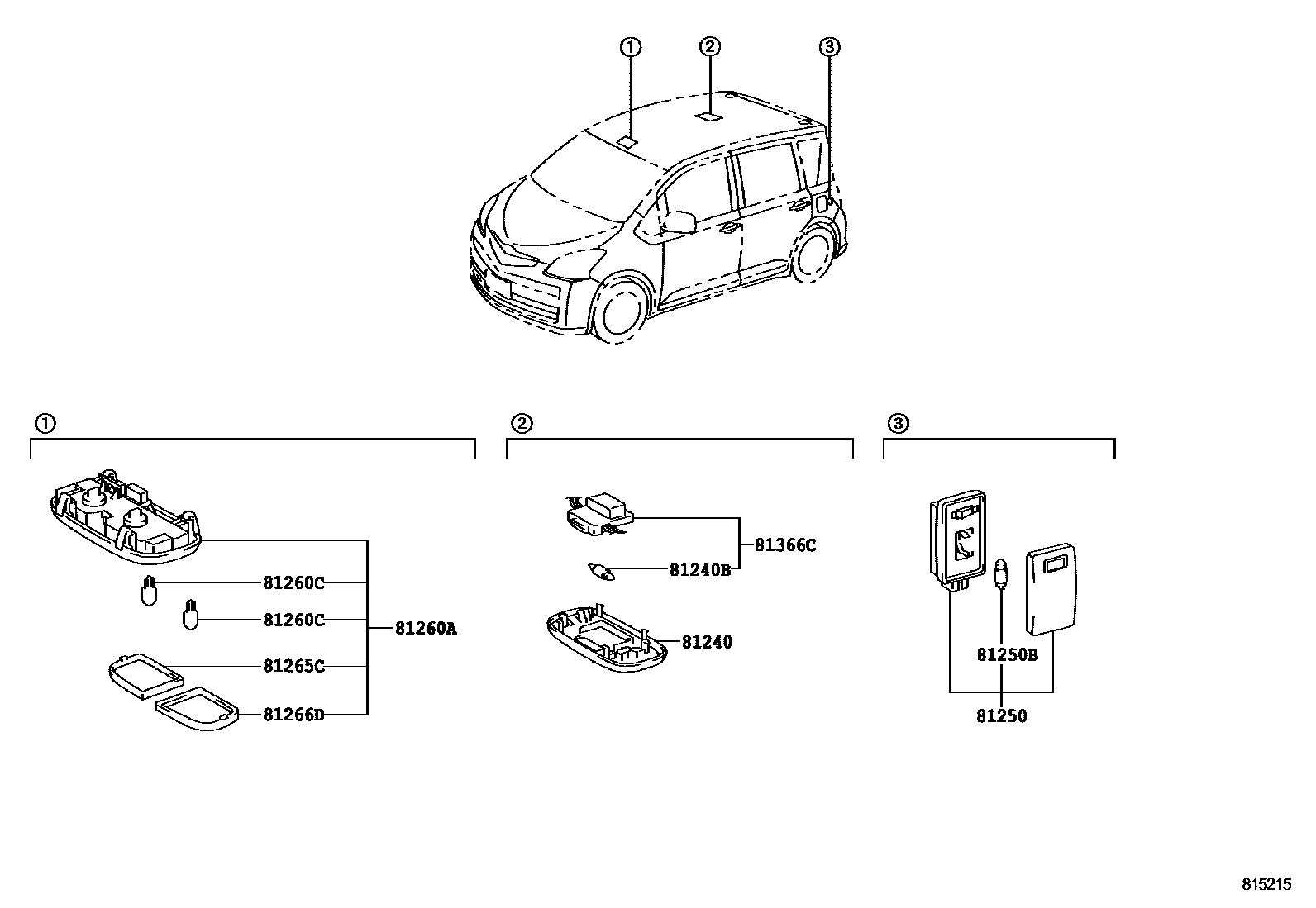

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-68010-B0iSCP100200910-201008

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iSCP100200910

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-48010iSCP100200910-201008

81250BBULB, ROOM LAMP, NO.2

main99132-13050iSCP100200910

12V 5W

81260ALAMP ASSY, MAP

main81260-52030-B1iSCP100200910-201008

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-11062iSCP100200910

12V 8W

81265CLENS, MAP LAMP, NO.1

main81265-52020iSCP100200910

81266DLENS, MAP LAMP, NO.2

main81266-52020iSCP100200910

81366CBASE, ROOM LAMP SWITCH

main81366-68010iSCP100200910-201008

9 parts on this diagram · 1 diagram in section
