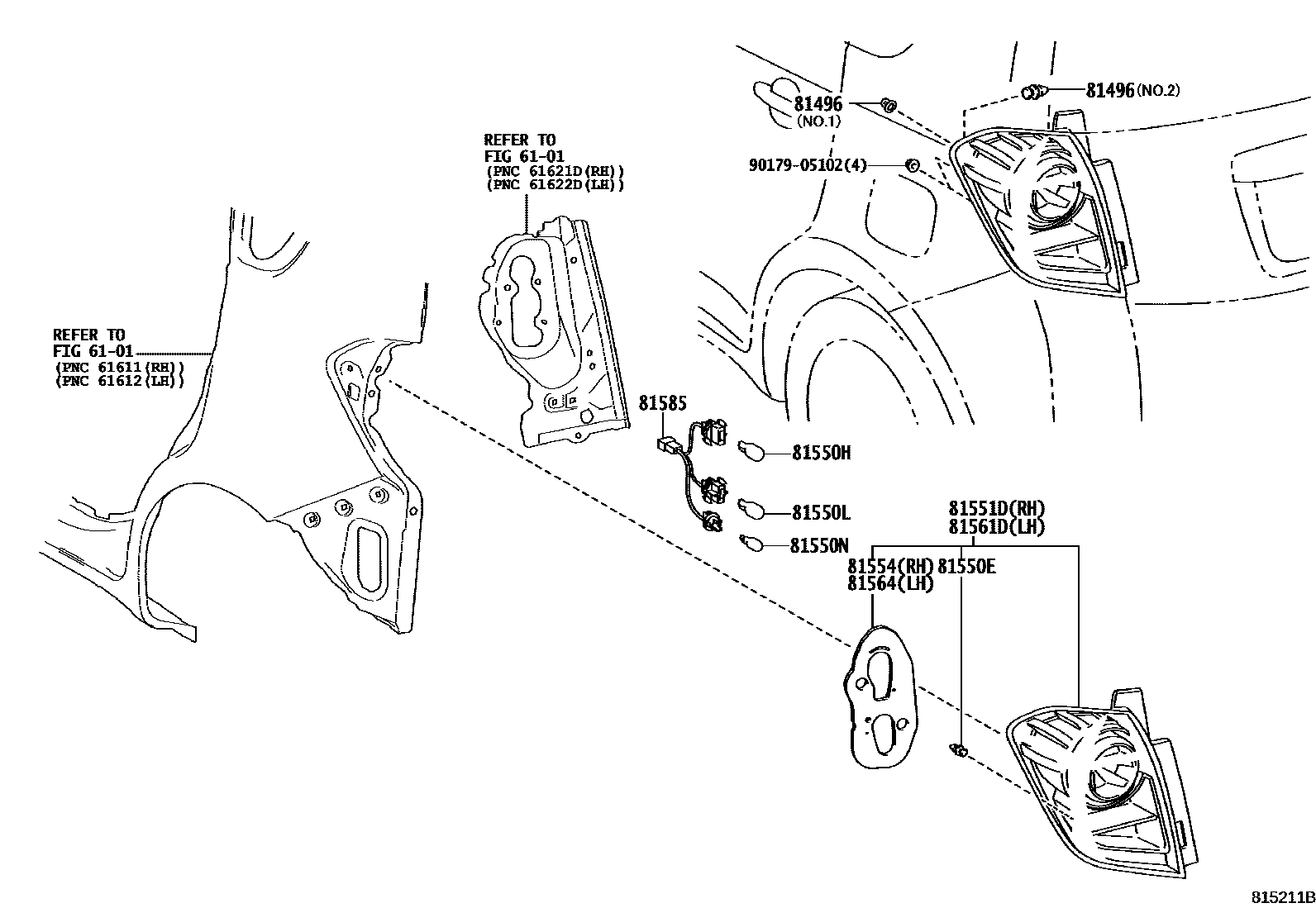

REAR COMBINATION LAMP

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iSCP100200910

NO.1

main81496-60010×2iSCP100200910

NO.2

81550ECLIP(FOR REAR COMBINATION LAMP)

main90075-91005×2iSCP100200910-201008

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iSCP100200910

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iSCP100200910

81550NBULB, BACK UP LAMP

main90981-11059×2iSCP100200910

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-52750iSCP100200910

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-52750iSCP100200910

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-52660iSCP100200910

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-52660iSCP100200910

81585SOCKET & WIRE, REAR LAMP

main81555-52750×2iSCP100200910

9017905102

main90179-05102

12 parts on this diagram · 1 diagram in section
