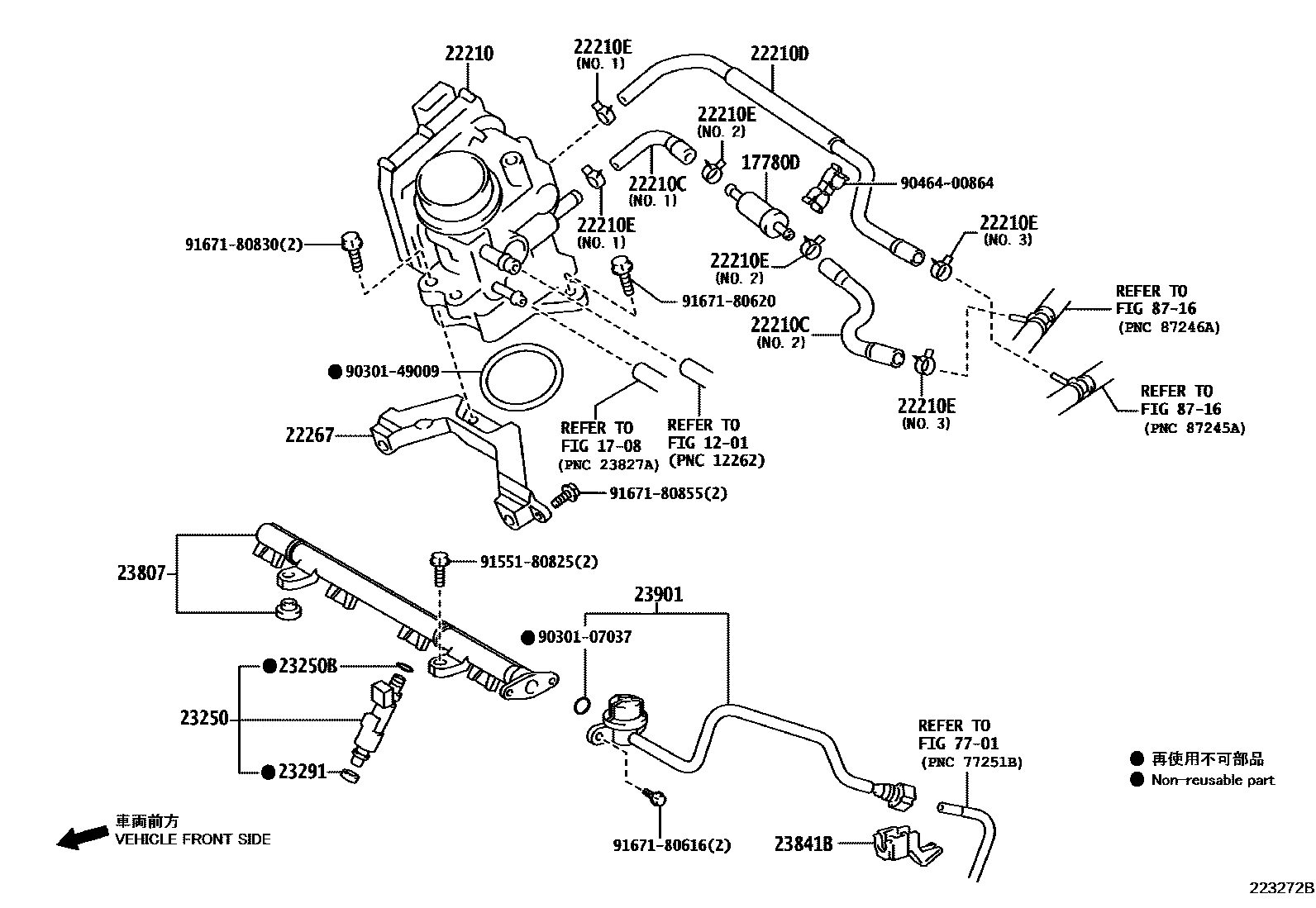

FUEL INJECTION SYSTEM

1201VENTILATION HOSE

→ Go to FIG 12-01

1708VACUUM PIPING

→ Go to FIG 17-08

17780DVALVE ASSY, THERMOSTAT

main17780-23010i2SZFE..SCP100200910

22210BODY ASSY, THROTTLE

main22030-23010i2SZFE..SCP100200910

22210CHOSE, WATER BY-PASS, NO.1

main16261-23040i2SZFE..SCP100200910-201008

NO.1

main16261-23070i2SZFE..SCP100200910-201008

NO.2

22210DHOSE, WATER BY-PASS, NO.2

main16264-23050i2SZFE..SCP100200910-201008

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main90466-10002×2i2SZFE..SCP100200910-201008

NO.1

main90466-12001×2i2SZFE..SCP100200910-201008

NO.3

main90467-12062×2i2SZFE..SCP100200910-201008

NO.2

22267BRACKET, THROTTLE BODY

main22267-23020i2SZFE..SCP100200910

23250INJECTOR ASSY, FUEL

main23209-29015×4i2SZFE..SCP100200910

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2SZFE..SCP100200910

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i2SZFE..SCP100200910

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-23041i2SZFE..SCP100200910

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2SZFE..SCP100200910-201008

23901TUBE SUB-ASSY, FUEL

main23901-23040i2SZFE..SCP100200910-201008

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9030107037

main90301-07037

9030149009

main90301-49009

9046400864

main90464-00864

9155180825

main91551-80825

9167180616

main91671-80616

9167180620

main91671-80620

9167180830

main91671-80830

9167180855

main91671-80855

24 parts on this diagram · 1 diagram in section
