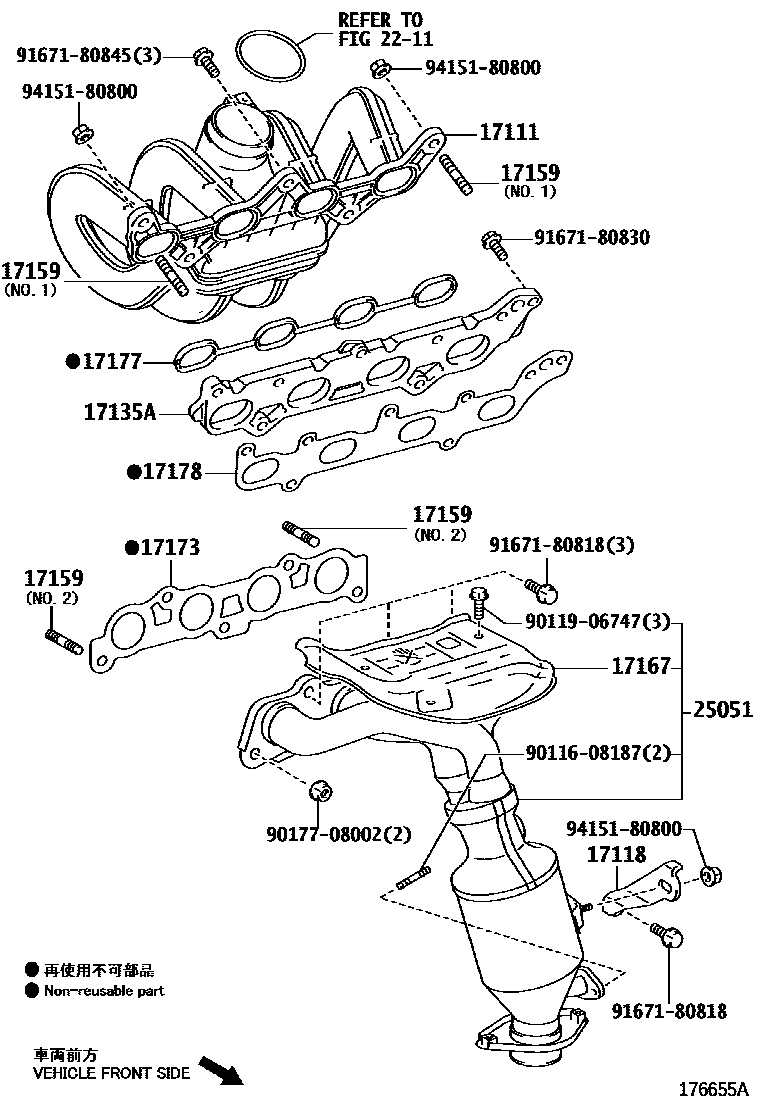

MANIFOLD
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
2211FUEL INJECTION SYSTEM
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
9011608187
main90116-08187
9011906747
main90119-06747
9017708002
main90177-08002
9167180818
main91671-80818
9167180830
main91671-80830
9167180845
main91671-80845
9415180800
main94151-80800
17 parts on this diagram · 1 diagram in section
