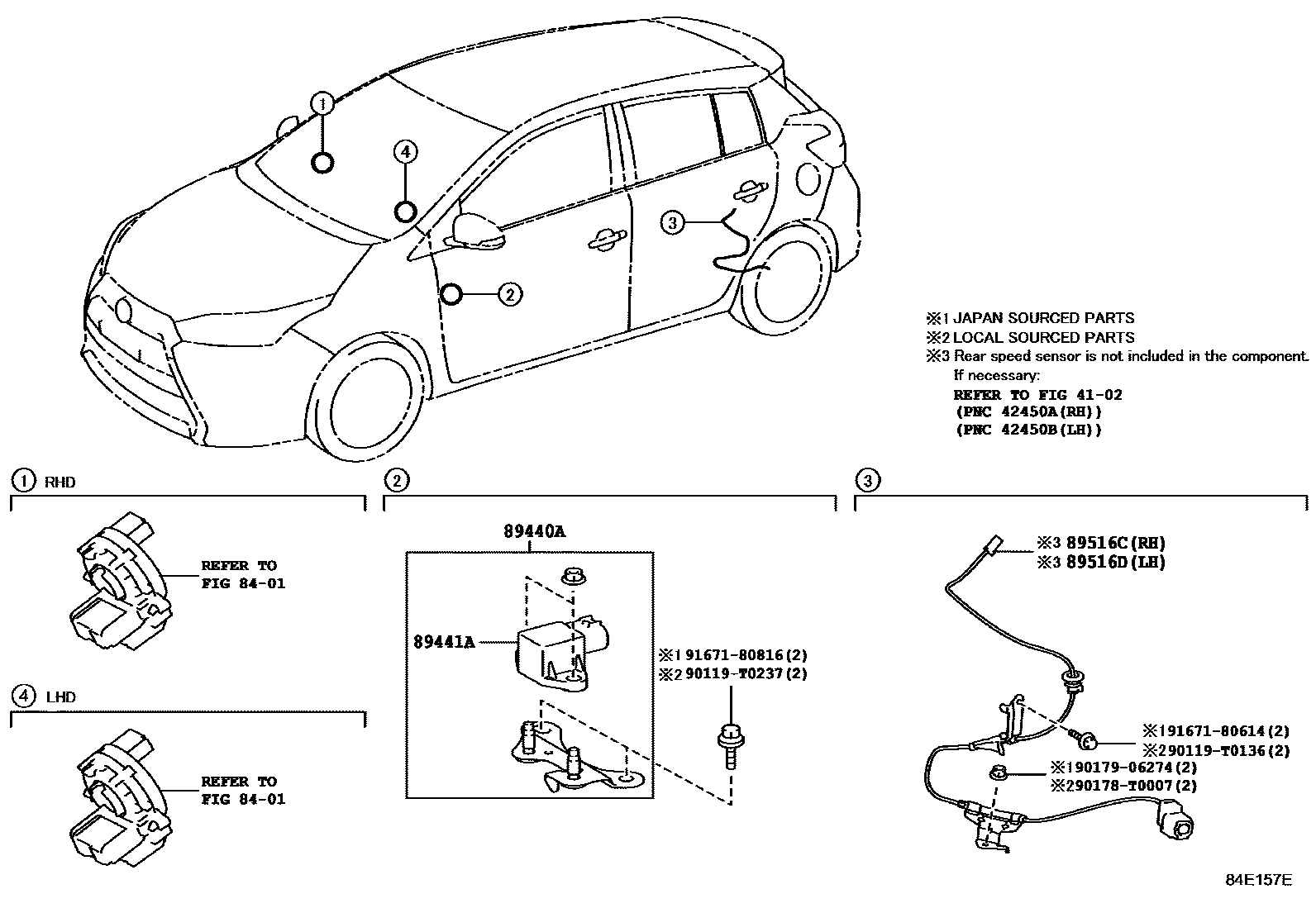

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89440ASENSOR ASSY, DECELERATION

main89440-52090iNSP151..CVT..C201310-201802

89441ASENSOR, DECELERATION

main89441-12060iNSP15#..CVT..(GEN,PH,TH,VN)201310-201802

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-0D270iNSP151..PH,SA;NSP150..CVT..PH201310-202302

main89516-0D290iNSP151..5F..R..C201403-202108

main89516-0D370iNSP150,151..H201806-201910

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-0D280iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201310-202302

main89516-0D300iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main89516-0D380iNSP150,151..H201806-201910

90119T0136

main90119-T0136

90119T0237

main90119-T0237

90178T0007

main90178-T0007

9017906274

main90179-06274

9167180614

main91671-80614

9167180816

main91671-80816

12 parts on this diagram · 1 diagram in section
