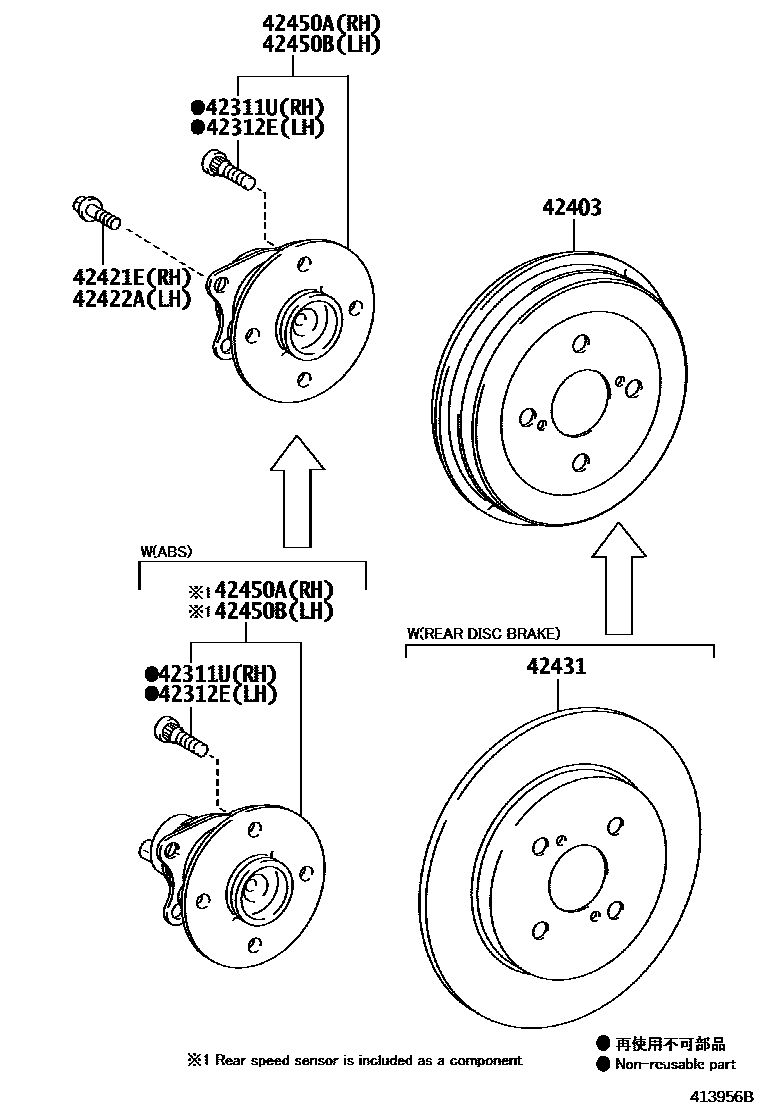

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×4iNCP150..TAIW201409-201604

main90942-02081×4iNCP150..C201310-201609

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×4iNSP150,151..F,H201804-202101

main90942-02081×4iNSP150..RHD;NSP150,151..5F..(IDN,PH)..R201709-202108

42403DRUM SUB-ASSY, REAR BRAKE

main42431-0D080×2iNSP151..TAIW..(G,R)201409-201802

main42431-0D100×2iNSP151..SA;NSP150..CVT..PH201709-202207

main42431-0D150×2iNSP150,151..H201806-201910

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350×4iNSP151..TAIW201409-201802

main90105-T0187×4iNCP150..C201310-201609

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350×4iNSP150,151..F,H201804-202101

main90105-T0187×4iNCP15#..GCC,GEN,PH,VN201310-201606

42431DISC, REAR

main42431-0D090×2iNSP151..TAIW..V201409-201802

main42431-0D110×2iNCP150..MA;NCP150..V..C201403-201609

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-0D120iNCP150..C201310-201609

main42450-0D130iNSP151..TAIW201409-201802

main42450-0D200iNSP150,151..H201806-201910

main42410-0D090iNCP150..5F..D;NCP151..LHD..5F..GEN; NCP150..5F..R..A201403-201606

LATIN AMERICA SPEC; LATIN AMERICA SPEC&CHILE SPEC

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-0D120iNCP150..C201310-201609

main42450-0D130iNCP150..TAIW201409-201604

main42450-0D200iNSP150,151..H201806-201910

main42410-0D090iNCP150..5F..D;NCP151..LHD..5F..GEN; NCP150..5F..R..A201403-201606

LATIN AMERICA SPEC; LATIN AMERICA SPEC&CHILE SPEC

8 parts on this diagram · 1 diagram in section
