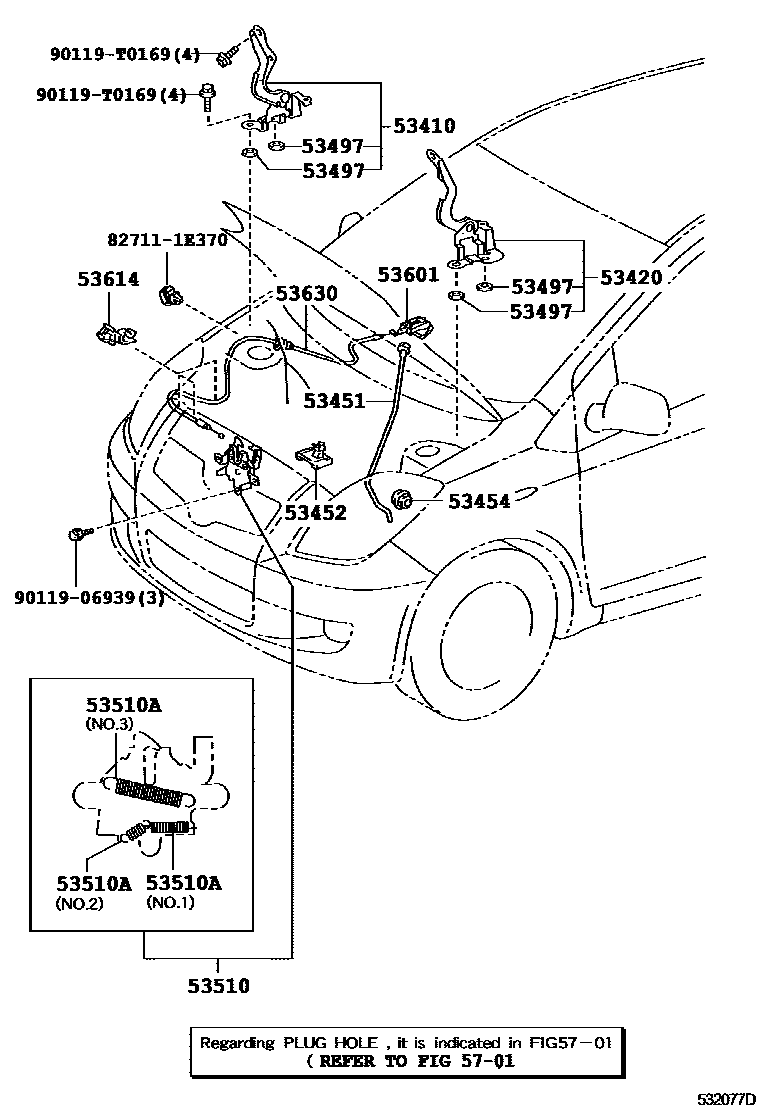

HOOD LOCK & HINGE

0001 1 0002 1 0004 1 0006 1

53410HINGE ASSY, HOOD, RH

main53410-0D160iNCP91..ATM;NCP91..MTM..(E,J)200601-201409

53420HINGE ASSY, HOOD, LH

main53420-0D160iNCP91..ATM;NCP91..MTM..(E,J)200601-201409

53451ROD, HOOD SUPPORT

main53440-0D050iNCP91200601-200910

53452HOLDER, HOOD STAY

main53452-0D020iNCP91..IDN,MA,PH,TH200601-200910

53454CLIP, HOOD SUPPORT ROD

main53454-0D010iNCP91..IDN,MA,PH,TH200601-200910

(L)

main53454-0D010iNCP91200903

main53454-52020iNCP91..IDN,MA,PH,TH200601-200910

(J)

53497PAD, HOOD HINGE, NO.1

main53497-42010iNCP91..IDN,MA,PH,TH200601-200910

T=0.5

53510LOCK ASSY, HOOD

main53510-0D140iNCP91..MA;NCP91..(E,J)..TH200601-200903

WIRELESS DOOR LOCK-WITHOUT

main53510-0D140iNCP91..MA;NCP91..(E,J)..TH200903-201212

main53510-0D141iNCP91..MA;NCP91..(E,J)..TH201301-201307

main53510-0D150iNCP91..(E,J)..IDN;NCP91..(G,S)..(IDN,TH)200601-201212

main53510-0D151iNCP91..(E,J)..IDN;NCP91..(G,S)..(IDN,TH)201301-201307

main53510-0D160iNCP91..TAIW200611-201209

main53510-0D161iNCP91..TAIW201210

main53510-52320iNCP91..PH200701-201008

main53510-52600iNCP91..PH201009-201209

main53510-52601iNCP91..PH201210-201307

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iNCP91..TAIW200601-200910

WD=0.9,CW=21,NO.1

main90506-12063iNCP91..TAIW200601-200910

WD=1.2,CW=8.5,NO.2

main90506-14085iNCP91..IDN,MA,PH,TH200601-200910

WD=1.4,CW=12,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-02030-B1iNCP91..IDN,MA,PH,TH200601-201307

DK.GRAY,TRIM1#

main53601-52010-B3iNCP91..TAIW200611-200910

DK.GRAY,TRIM1#

main53601-52010-B3iNCP91..TAIW200910-201409

DK.GRAY,TRIM1#,2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-0D010iNCP91..(E,J)..IDN;NCP91..(G,S)..(IDN,TH)200601-200903

WIRELESS DOOR LOCK-WITHOUT

main53614-0D010iNCP91..MA,PH;NCP91..(E,J)..TH200601-201307

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0D080iNCP91..IDN,MA,PH,TH200601-201307

main53630-0D090iNCP91..TAIW200611-200910

5701HOLE PLUG

→ Go to FIG 57-01

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906939

main90119-06939

90119T0169

main90119-T0169

15 parts on this diagram · 4 diagrams in section
