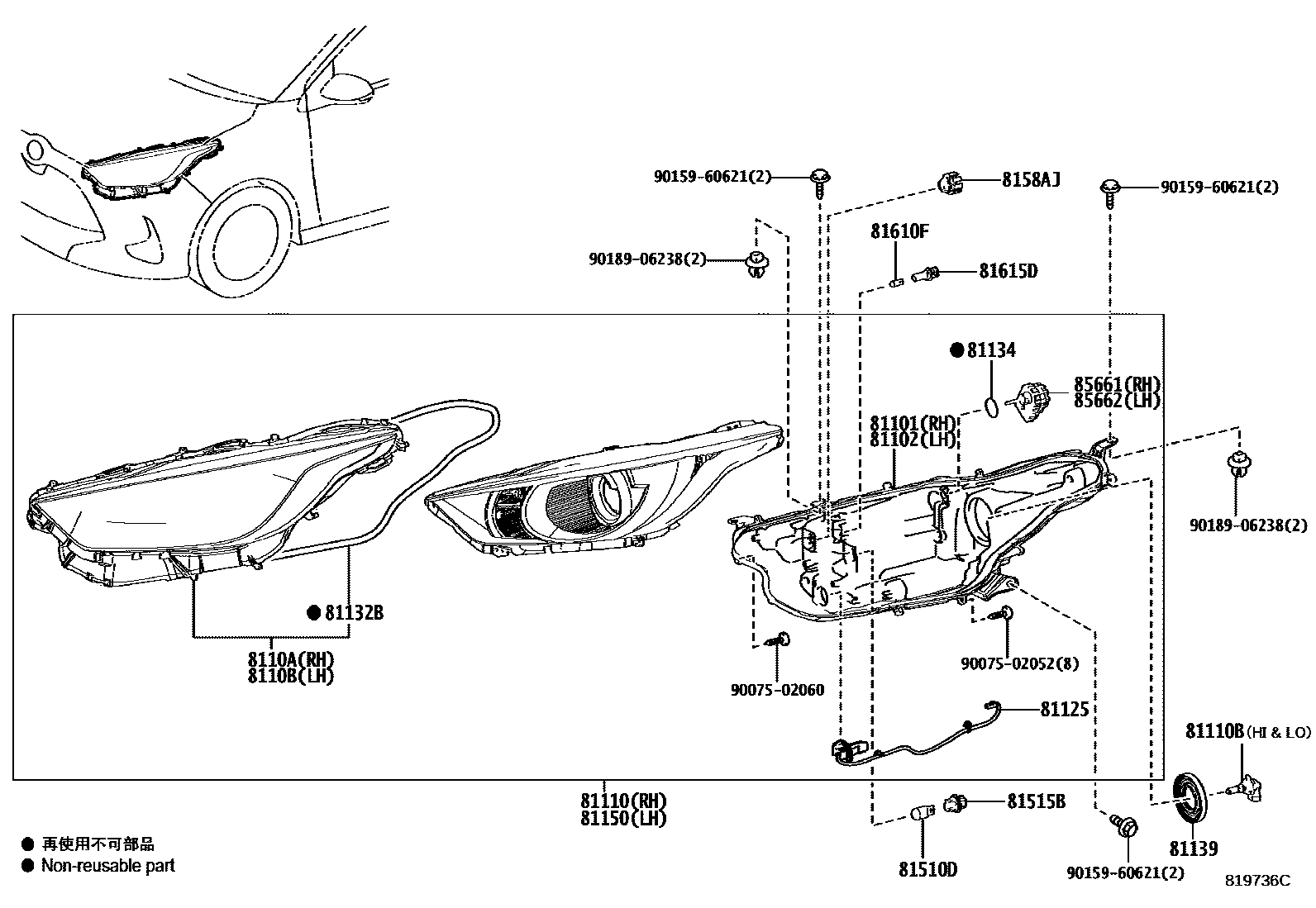

HEADLAMP
81101HOUSING SUB-ASSY, HEADLAMP, RH
81102HOUSING SUB-ASSY, HEADLAMP, LH
8110ALENS SUB-ASSY, HEADLAMP, RH
8110BLENS SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
12V 55W,HALOGEN
81125CORD, HEADLAMP
81132BGASKET, HEADLAMP LENS
81134GASKET, HEADLAMP
81139COVER, HEADLAMP SOCKET
81150HEADLAMP ASSY, LH
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
8158AJLED, DAYTIME RUNNING LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
9007502052
main90075-02052
9007502060
main90075-02060
9015960621
main90159-60621
9018906238
main90189-06238
22 parts on this diagram · 3 diagrams in section
