ALTERNATOR

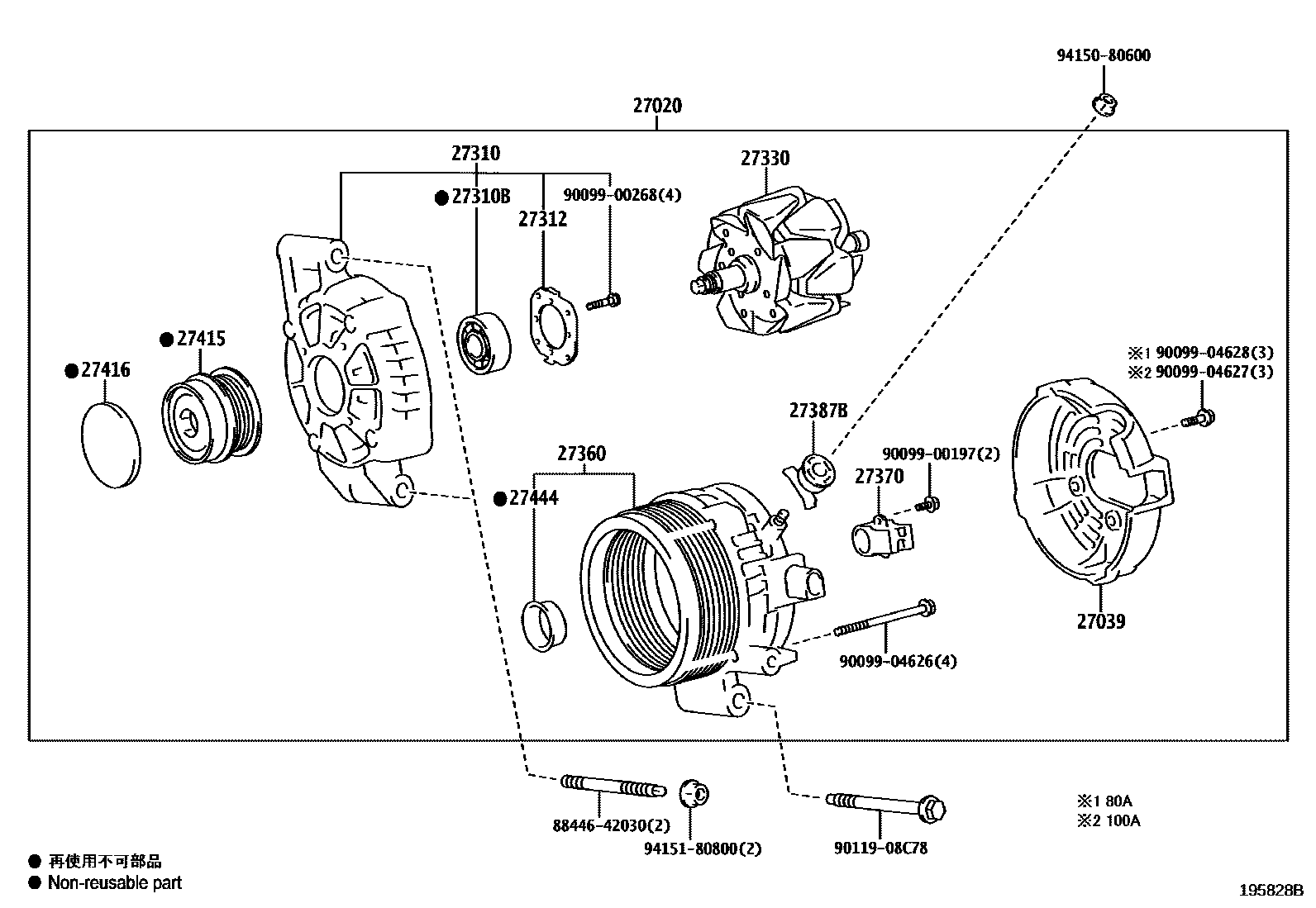

Parts diagram

27020ALTERNATOR ASSY

main27060-K0010i202005-202207

12V 80A

main27060-K0040i202005-202307

12V 80A

main27060-K0041i202308-202401

12V 80A

main27060-K0050i202401-202501

12V 100A

27039COVER, ALTERNATOR REAR END

main27039-21211i202308-202401

main27039-37220i202401-202501

main27039-47310i202005-202308

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-24150i202401-202501

main27310-K0010i202005-202308

main27310-K0011i202308-202401

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i202401-202501

main90099-10227i202005-202401

27312PLATE, RETAINER

main27312-72100i202005-202501

27330ROTOR ASSY, ALTERNATOR

main27330-21211i202308-202401

main27330-47310i202005-202308

main27330-47330i202401-202501

27360COIL ASSY, ALTERNATOR

main27360-24150i202401-202501

main27360-K0010i202005-202308

main27360-K0011i202308-202401

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i202005-202501

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i202401-202501

main27387-47310i202005-202401

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W200i202005-202207

main27415-15010i202005-202401

main27415-15020i202401-202501

27416CAP, ALTERNATOR PULLEY

main27416-0W050i202005-202207

main27416-47010i202005-202501

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190i202005-202501

8844642030BOLT, IDLE PULLEY

main88446-42030

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

9009904628

main90099-04628

9011908C78

main90119-08C78

9415080600

main94150-80600

9415180800

main94151-80800

21 parts on this diagram · 1 diagram in section
