V-BELT

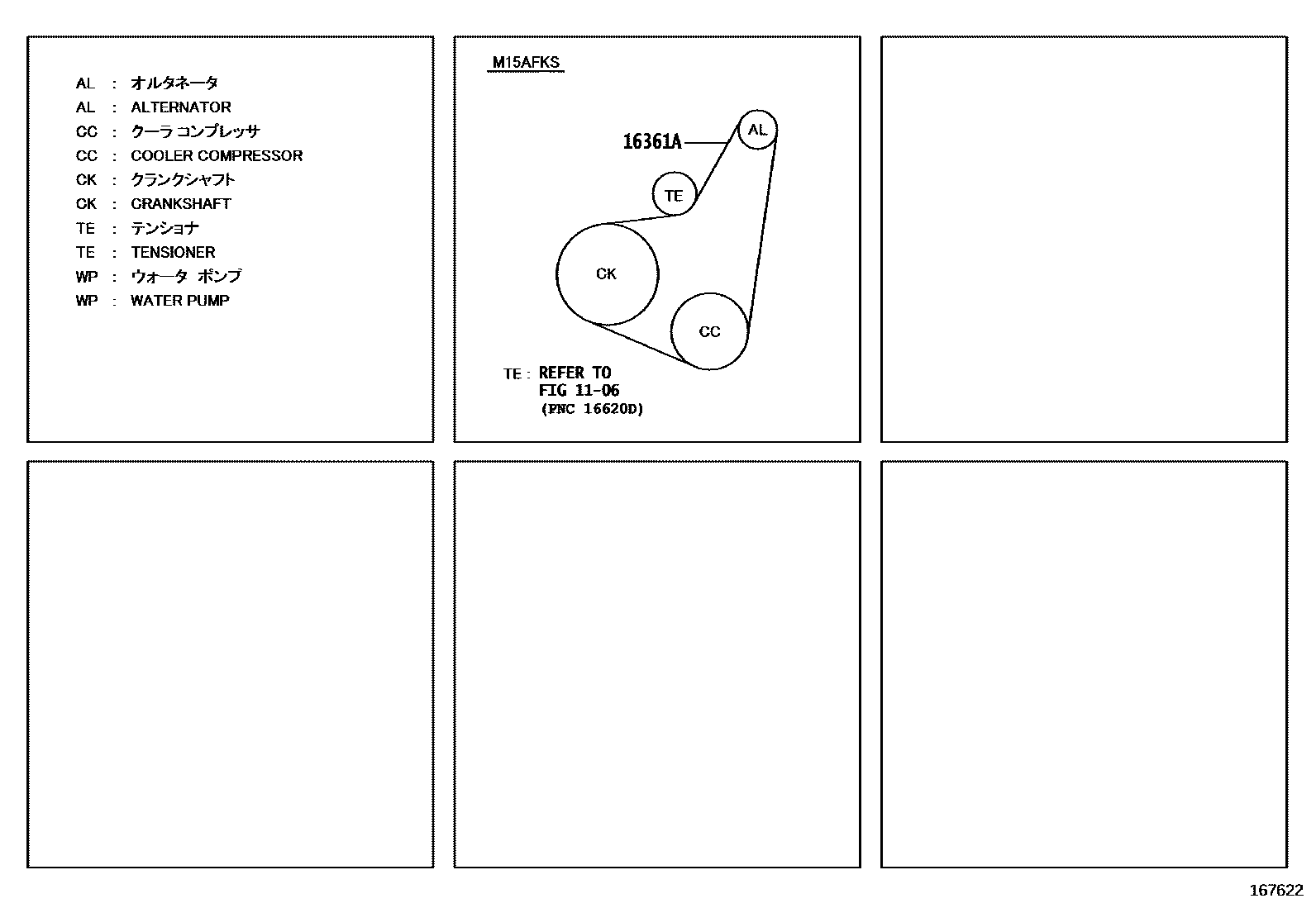

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02764i202005-202207

2 parts on this diagram · 1 diagram in section
