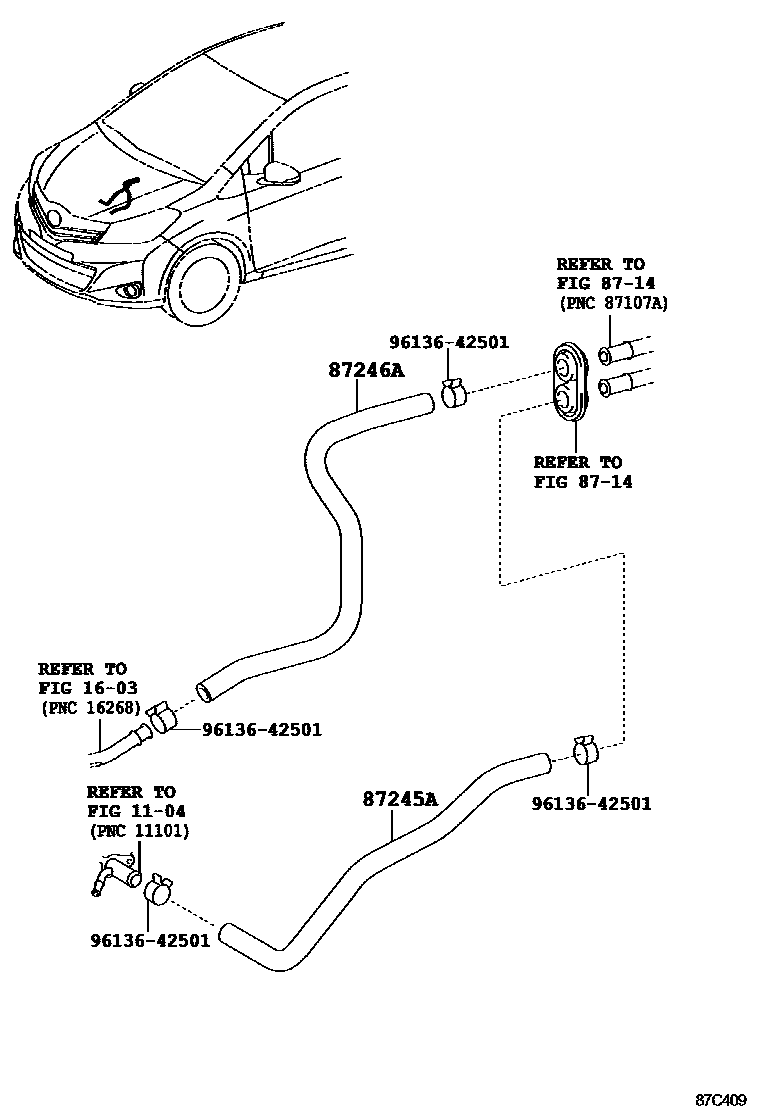

HEATING & AIR CONDITIONING - WATER PIPING

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-52080iNCP131;NCP130..ARL,GEN201108-201407

FRONT AIR CONDITIONER-MANUAL

main87245-52080iNCP130201407-201701

main87245-52120iNCP131201407-201701

87246AHOSE, HEATER WATER, OUTLET A

main87245-52100iNCP131;NCP130..ARL,GEN201108-201407

FRONT AIR CONDITIONER-MANUAL

main87245-52100iNCP130201407-201701

main87245-52110iNCP131201407-201701

9613642501

main96136-42501

6 parts on this diagram · 1 diagram in section
