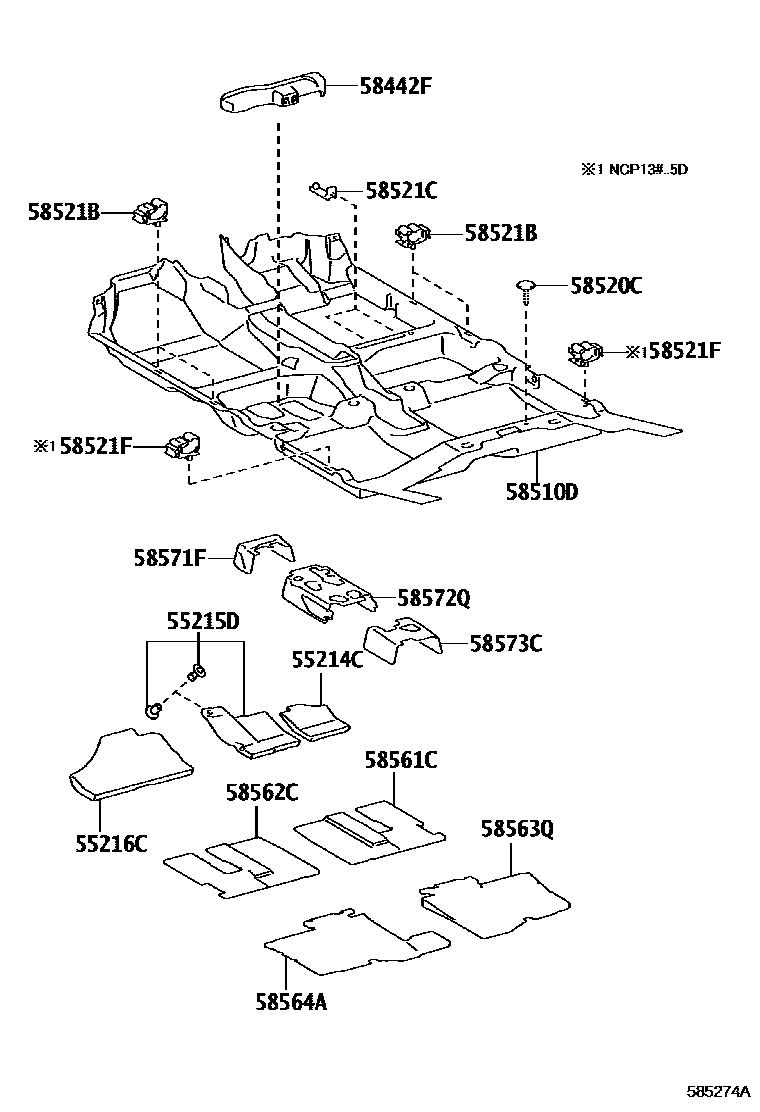

MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
55216CPAD, DASH PANEL INSULATOR, NO.4
58442FCOVER, JACK
58510DCARPET ASSY, FLOOR, FRONT
DK. GRAY,TRIM1#
DK. GRAY,TRIM1#
DK. GRAY,TRIM1#
DK. GRAY,TRIM1#
DK.GREY,TRIM2#,4#
DK. GREY,TRIM2#
58520CCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM2#
BLACK,TRIM1#
58521CHOOK, FLOOR CARPET NO.2
58521FHOOK, FLOOR CARPET
58561CSILENCER, FRONT FLOOR, NO.1
58562CSILENCER, FRONT FLOOR, NO.2
58563QSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58571FPAD, FRONT FLOOR, FRONT
58572QPAD, FRONT FLOOR, FRONT NO.2
16 parts on this diagram · 2 diagrams in section
