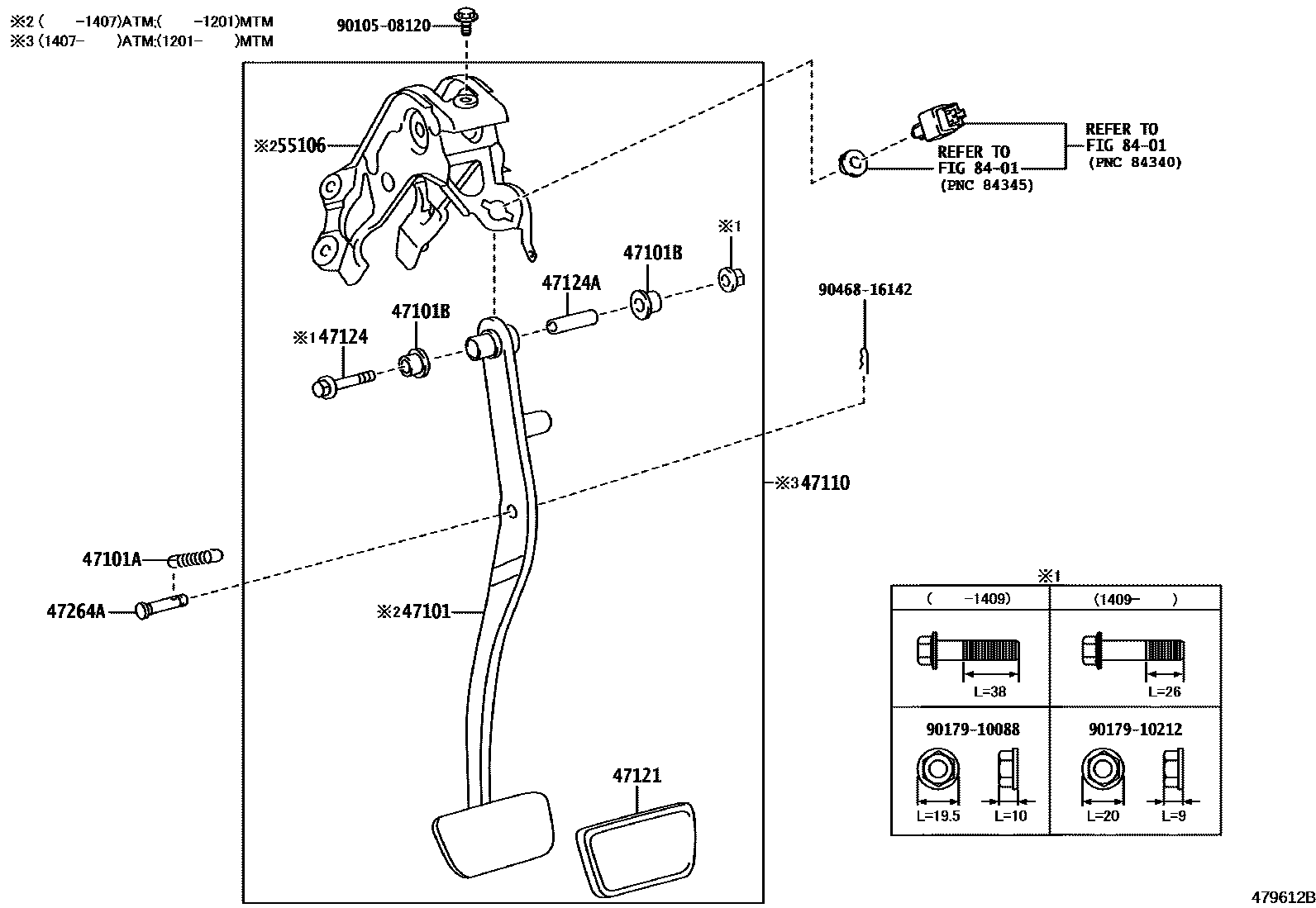

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-52230iNCP13#..RHD..5F201108-201112

main47101-52240iNCP13#..RHD..4FC201108-201112

main47101-52241iNCP13#..RHD..4FC201201-201407

main47101-52251iNCP13#..LHD..5F201108-201407

main47101-52261iNCP13#..LHD..4FC201108-201407

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNCP13#201108-201205

main90506-14088iNCP13#201205-201701

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNCP13#201108-202001

47110SUPPORT ASSY, BRAKE PEDAL

main47110-52261iNCP13#..RHD..5F201201-201407

main47110-52400iNCP13#..5F201407-202001

main47110-52410iNCP13#..4FC201407-202001

47121PAD, BRAKE PEDAL

main31321-52010iNCP13#..5F201108-201501

main31321-52020iNCP13#..5F201502-202001

main47121-52010iNCP13#..4FC201108-201408

main47121-52020iNCP13#..4FC201409-202001

47124SHAFT, BRAKE PEDAL

main90105-10444iNCP13#201108-201409

main91552-81055iNCP13#201409-202001

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iNCP13#201108-202001

47264APIN(FOR PUSH ROD)

main90249-08051iNCP13#201108-201701

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52131iNCP13#..RHD201108-201407

main55106-52161iNCP13#..LHD201108-201407

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508120

main90105-08120

9017910088

main90179-10088

9017910212

main90179-10212

9046816142

main90468-16142

14 parts on this diagram · 2 diagrams in section
