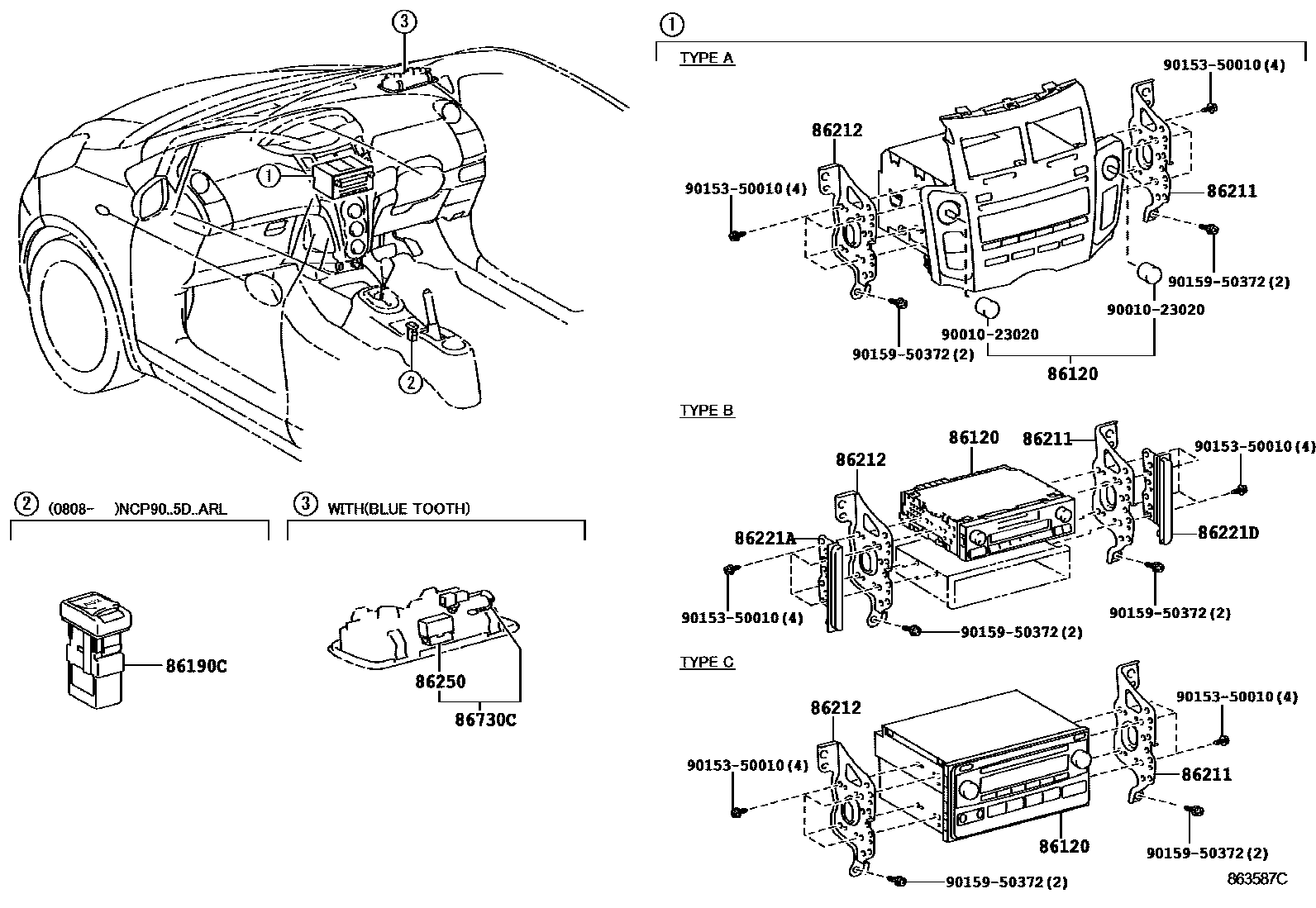

RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
AUDIO-RADIOLESS 2SPEAKER MULTI,NOT APPLICABLE; AUDIO-RADIOLESS 4SPEAKER MULTI,NOT APPLICABLE; NOT APPLICABLE
FUJITSU TEN,ID=17421; FUJITSU TEN,ID=17421,AUDIO-AM/FM CASSETTE 4SPEAKER 9KHZ MULTI
FUJITSU TEN,ID=13801,AUDIO-LW/MW/FM CD 4SPEAKER EXTRA 2DIN
FUJITSU TEN,ID=13802,AUDIO-LW/MW/FM CD 4SPEAKER EXTRA 2DIN
FUJITSU TEN,ID=13828,AUDIO-AM/FM CD 4SPEAKER EXTRA
PIONEER,ID=P2822,AUDIO-AM/FM CD 4SPEAKER 9KHZ 200*100
FUJITSU TEN,ID=13813,AUDIO-AM/FM CD 6SPEAKER EXTRA W(BLUE TOOTH)
86190CADAPTER ASSY, STEREO JACK, NO.1
AUDIO-AM/FM CD 4SPEAKER EXTRA; AUDIO-AM/FM CD 6SPEAKER EXTRA W(BLUE TOOTH)
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86221APANEL, RADIO RECEIVER
AUDIO-AM/FM CASSETTE 4SPEAKER 9KHZ MULTI
86221DPANEL, RADIO RECEIVER
AUDIO-AM/FM CASSETTE 4SPEAKER 9KHZ MULTI
86250MICROPHONE ASSY, AMPLIFIER
AUDIO-AM/FM CD 6SPEAKER EXTRA W(BLUE TOOTH)
86730CMICROPHONE ASSY, TELEPHONE
AUDIO-AM/FM CD 6SPEAKER EXTRA W(BLUE TOOTH)
9001023020
main90010-23020
9015350010
main90153-50010
9015950372
main90159-50372
11 parts on this diagram · 2 diagrams in section
