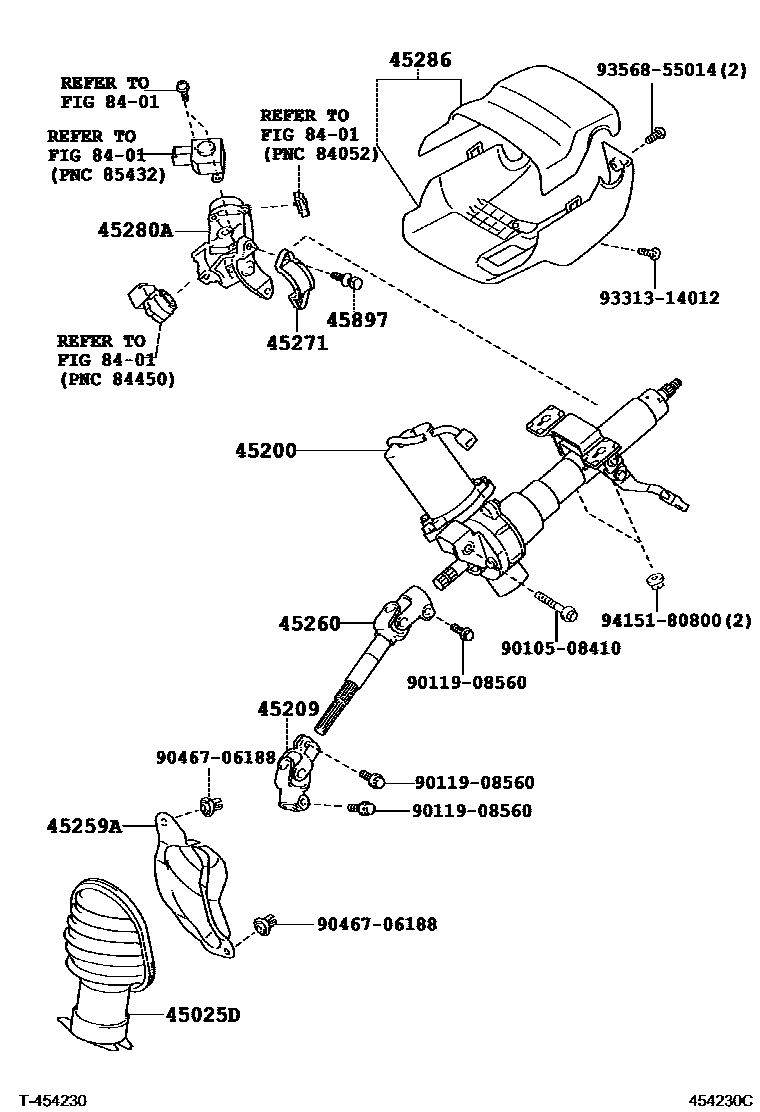

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52140iNCP9#200508-200808

45200POST ASSY, STEERING

main45200-52280supersedes 45200-52261iNCP9#..RHD200508-200712

STEERING COLUMN-TILT & TELESCO(EPS)

main45200-52281supersedes 45200-52261iNCP9#..RHD200808-201107

STEERING COLUMN-TILT & TELESCO(EPS)

main45200-52320supersedes 45200-52311iNCP90..LHD200508-200712

STEERING COLUMN-TILT & TELESCO(EPS)

main45200-52321supersedes 45200-52311iNCP90..LHD200801-200808

STEERING COLUMN-TILT & TELESCO(EPS)

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52040iNCP9#200808-201107

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-52010iNCP9#..RHD..4FC200508-200808

main45259-52020iNCP90..LHD200508-200808

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52170iNCP9#..RHD200508-200808

main45260-52210iNCP90..LHD200508-200808

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iNCP9#200508-200808

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-22510iNCP9#..4FC200808-201108

main45280-52090iNCP9#..5F200508-200808

45286COVER, STEERING COLUMN

main45286-52929-B0iNCP9#200508-200808

DK.GRAY,TRIM1#

main45286-52934-B0iNCP9#200812-201107

DK.GRAY,TRIM1#

45897BOLT, STEERING LOCK SET

main45897-12020×2iNCP9#200508-200808

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508410

main90105-08410

9011908560

main90119-08560

9046706188

main90467-06188

9331314012

main93313-14012

9356855014

main93568-55014

9415180800

main94151-80800

16 parts on this diagram · 2 diagrams in section
