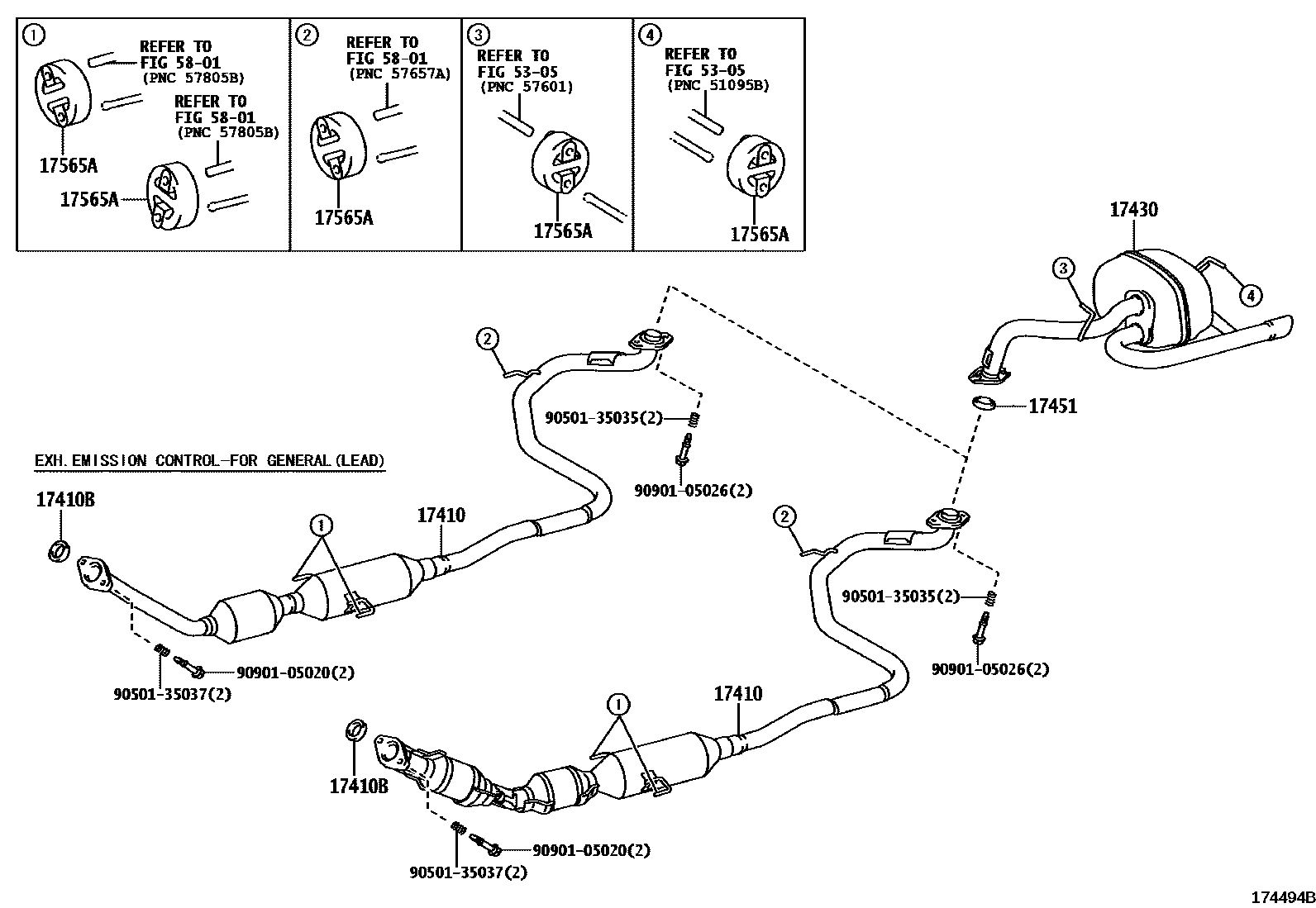

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-21520200508-200912

main17410-21521201001-201108

main17410-21540200508-200912

main17410-21541201001-201108

main17410-21630200508-200912

main17410-21631201001-201108

17410BGASKET, EXHAUST PIPE

main17451-21070200508-201107

17430PIPE ASSY, EXHAUST, TAIL

main17430-21500200508-200611

main17430-21501200612-201105

main17430-21502201106-201107

17451GASKET, EXHAUST PIPE

main17451-23040200508-200707

main17451-23041200708-201009

main17451-23042201010-201107

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-40010200508-201011

main17565-47010201012-201107

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

11 parts on this diagram · 1 diagram in section
