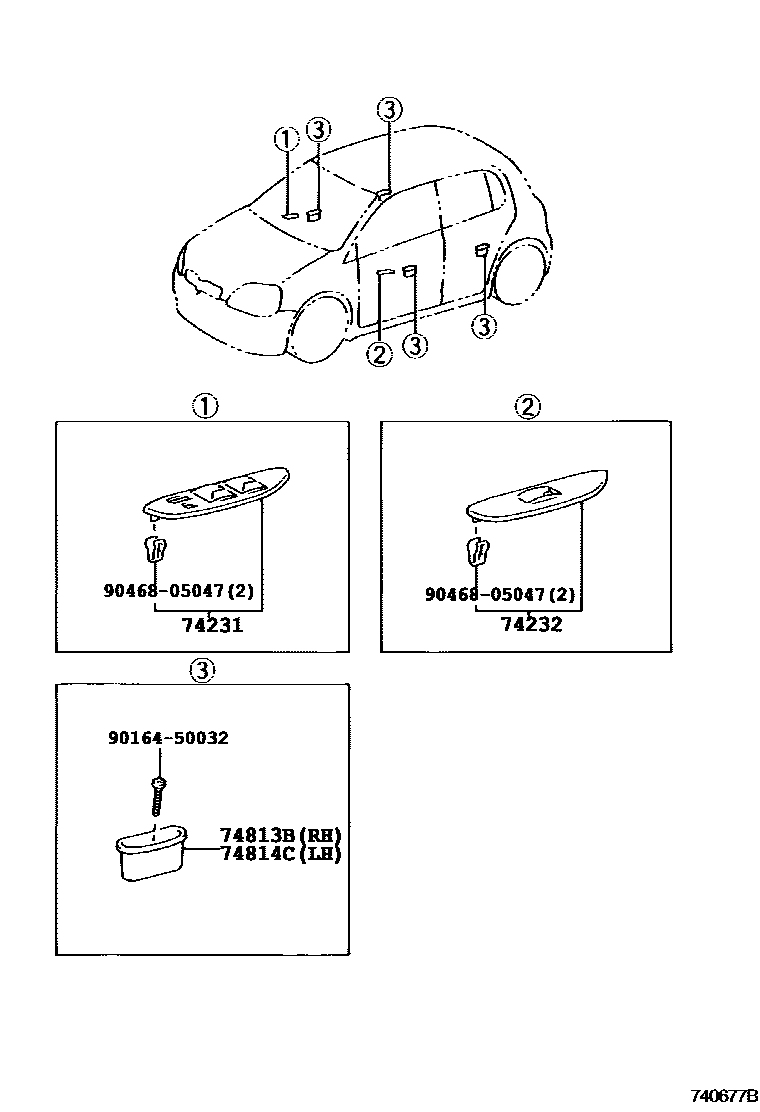

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74230-52030iNCP13..5D200101-200212

W(POWER WINDOW = FRONT & REAR)

main74230-52040iNCP13200101-200212

W(POWER WINDOW = FRONT ONLY)

main74230-52070iNCP13200212-200508

W(POWER WINDOW = FRONT ONLY)

main74230-52110iNCP13..5D200212-200508

W(POWER WINDOW = FRONT & REAR)

main74231-52010-B0iNCP10,SCP10..RHD..5D199903-200212

W(POWER WINDOW = FRONT & REAR),DK.GRAY

main74231-52020-B0iNCP10..RHD..3D;NCP10..5D..ARL200212-200508

W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM9#

main74231-52030iNCP10..LHD199908-200212

main74231-52030-B0iNCP10..LHD200212-200508

DK.GRAY,TRIM9#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52010iNCP10..LHD..5D199908-200212

main74232-52010-B2iNCP10..LHD..5D200212-200508

DK.GRAY,TRIM9#

main74232-52020iNCP10..LHD..3D199908-200212

main74232-52020-B2iNCP10..LHD..3D200212-200508

DK.GRAY,TRIM9#

main74232-52030iNCP10,SCP10..RHD199903-200212

main74232-52030-B0iNCP10,SCP10..RHD200212-200508

DK.GRAY,TRIM9#

main74240-52020iNCP13200101-200212

main74240-52060iNCP13200212-200508

74813BHANDLE, FRONT DOOR PULL, RH

main74813-52010iNCP13..3D; NCP13..5D200101-200105

main74813-52010-B0iNCP10..3D199908-200101

SHADOW GRAY,TRIM1#

main74813-52010-B2iNCP10,SCP10..5D; NCP10..3D; NCP13..3D; NCP13..5D200105-200212

DK.GRAY,TRIM1#; DK.GRAY,TRIM9#

main74813-52010-H0iNCP10..3D199908-200212

FRENCH TURQUOISE,TRIM7#

74814CHANDLE, FRONT DOOR PULL, LH

main74814-52010-B0iNCP10,SCP10..5D..GEN; NCP10..3D..GEN; NCP13..3D; NCP13..5D200101-200105

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM9#

main74814-52010-B2×2iNCP10,SCP10..5D; NCP10..3D200105-200208

DK.GRAY,TRIM1#

main74814-52010-H0iNCP10..3D199908-200212

FRENCH TURQUOISE,TRIM7#

9016450032

main90164-50032

9046805047

main90468-05047

6 parts on this diagram · 2 diagrams in section
