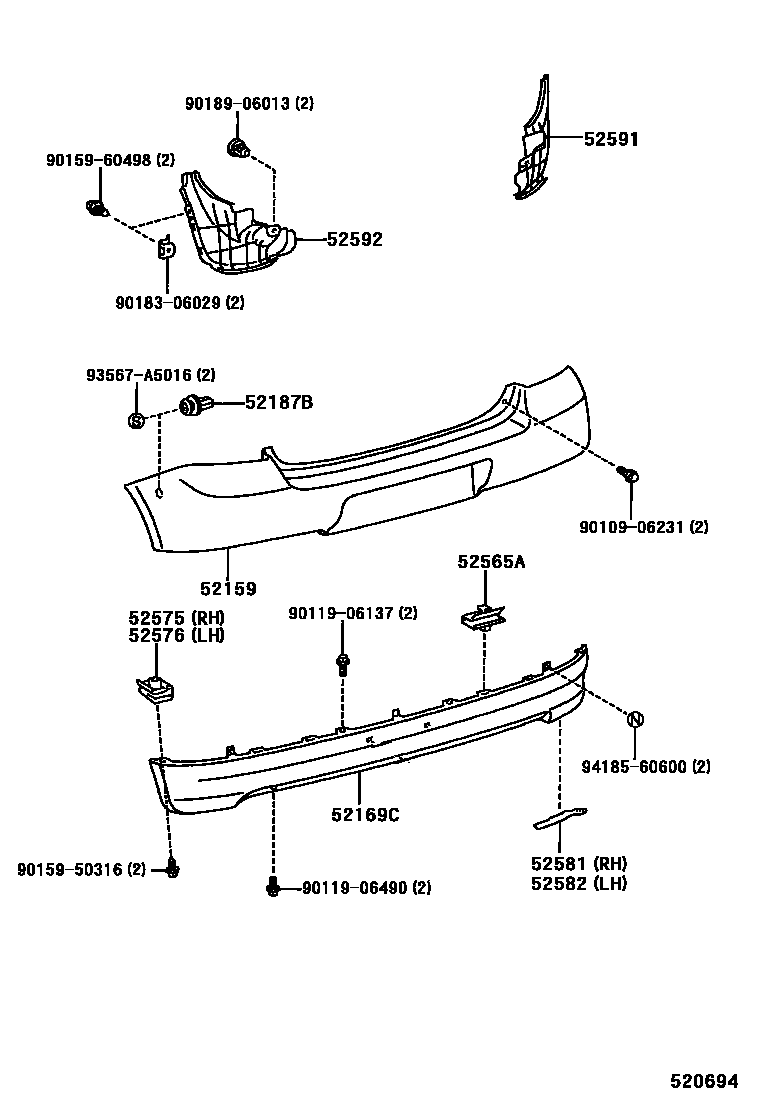

REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
WHITE,068
WHITE PM.,057
GRAY ME.,1D2
SILVER M.M.,1E7
BLACK MC.,209
PALE ROSE ME.OP.,3N7
SUPER RED 5,3P0
YELLOW PM.,595
DARK GREEN MC.,6R4
DK.BLUE M.M.,8P4
BLUE ME.,8P1
PALE BLUE M.M.,8R0
WHITE,068
GRAY ME.,1D2
BLACK MC.,209
SUPER RED 5,3P0
BLUE ME.,8P1
52169CCOVER, REAR BUMPER, LOWER
52187BGUIDE, REAR BUMPER LOCATION
52565ARETAINER, REAR BUMPER, LOWER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
9010906231
main90109-06231
9011906137
main90119-06137
9011906490
main90119-06490
9015950316
main90159-50316
9015960498
main90159-60498
9018306029
main90183-06029
9018906013
main90189-06013
93567A5016
main93567-A5016
9418560600
main94185-60600
19 parts on this diagram · 4 diagrams in section
