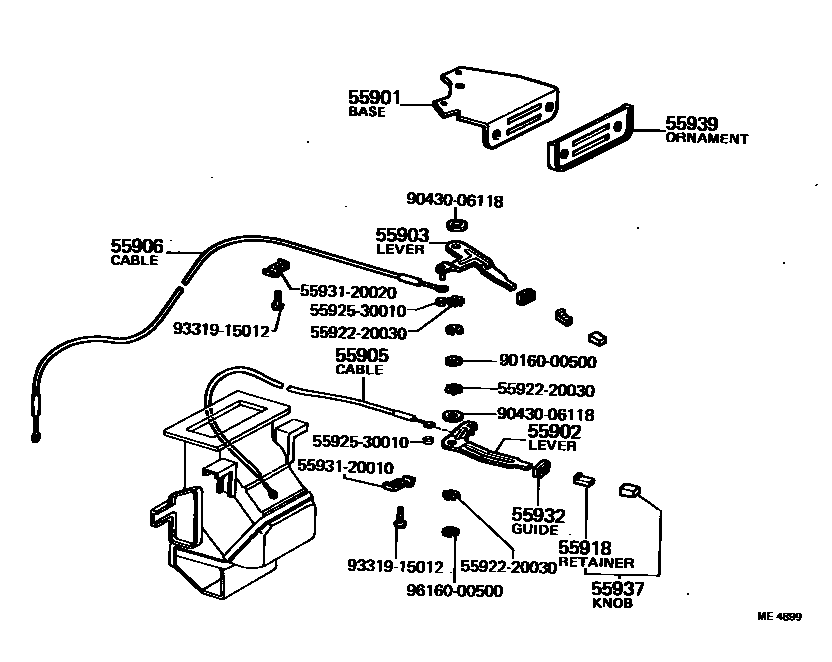

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1

55901BASE SUB-ASSY, HEATER CONTROL

main55901-10020iKP3#..LHD196904-197010

main55901-10021iKP3#..LHD197010-197310

main55901-10022iKP30,36..LHD197310-198808

main55901-10030iKP3#..RHD196904-197010

main55901-10031iKP3#..RHD197010-197310

main55901-10060iKP30,36..RHD197310-198808

55902LEVER SUB-ASSY, DEFROSTER CONTROL

main55902-10010iKP3#..RHD196904-197010

main55902-10011iKP3#197010-197310

main55902-10020iKP3#..LHD196904-197010

main55914-10040iKP3#197310-197403

main55914-10041iKP30,36197403-198808

55903LEVER SUB-ASSY, HEATER CONTROL

main55903-10010iKP3#..RHD196904-197010

main55903-10011iKP30,36197010-198808

main55903-10020iKP3#..LHD196904-197010

55905CABLE SUB-ASSY, DEFROST CONTROL

main55905-10030iKP3#..RHD196904-197010

main55905-10031iKP3#197010-197310

main55905-10050iKP3#..LHD196904-197010

main55905-10060iKP3#..RHD196904-197010

HEAVY DUTY HEATER

main55905-10070iKP3#..LHD196904-197010

HEAVY DUTY HEATER

main55905-10090iKP30,36197310-198808

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-10030iKP3#..RHD196904-197010

main55906-10031iKP3#197010-197511

main55906-10032iKP30,36197511-198808

main55906-10050iKP3#..LHD196904-197010

main55906-10060iKP3#..RHD196904-197010

HEAVY DUTY HEATER

main55906-10070iKP3#..LHD196904-197010

HEAVY DUTY HEATER

55918RETAINER, HEATER CONTROL LEVER

main55918-22010×3iKP3#196904-197112

55932GUIDE, LEVER, NO.1

main55932-20020×2iKP3#196904-197010

main55932-20040×3iKP30,36197010-198808

55937KNOB, HEATER CONTROL LEVER

main55937-22901×3iKP30,36196904-198808

55939ORNAMENT, HEATER CONTROL

main55939-10010iKP3#..RHD196904-197010

main55939-10020iKP3#..LHD196904-197010

5592220030BRACKET, HEATER CONTROL BASE

main55922-20030

5592530010KNOB, HEATER CONTROL LEVER

main55925-30010

5593120010CLAMP, HEATER CONTROL WIRE

main55931-20010

5593120020CLAMP, HEATER CONTROL WIRE

main55931-20020

9016000500

main90160-00500

9043006118

main90430-06118

9331915012

main93319-15012

9616000500

main96160-00500

17 parts on this diagram · 3 diagrams in section
