REAR COMBINATION LAMP

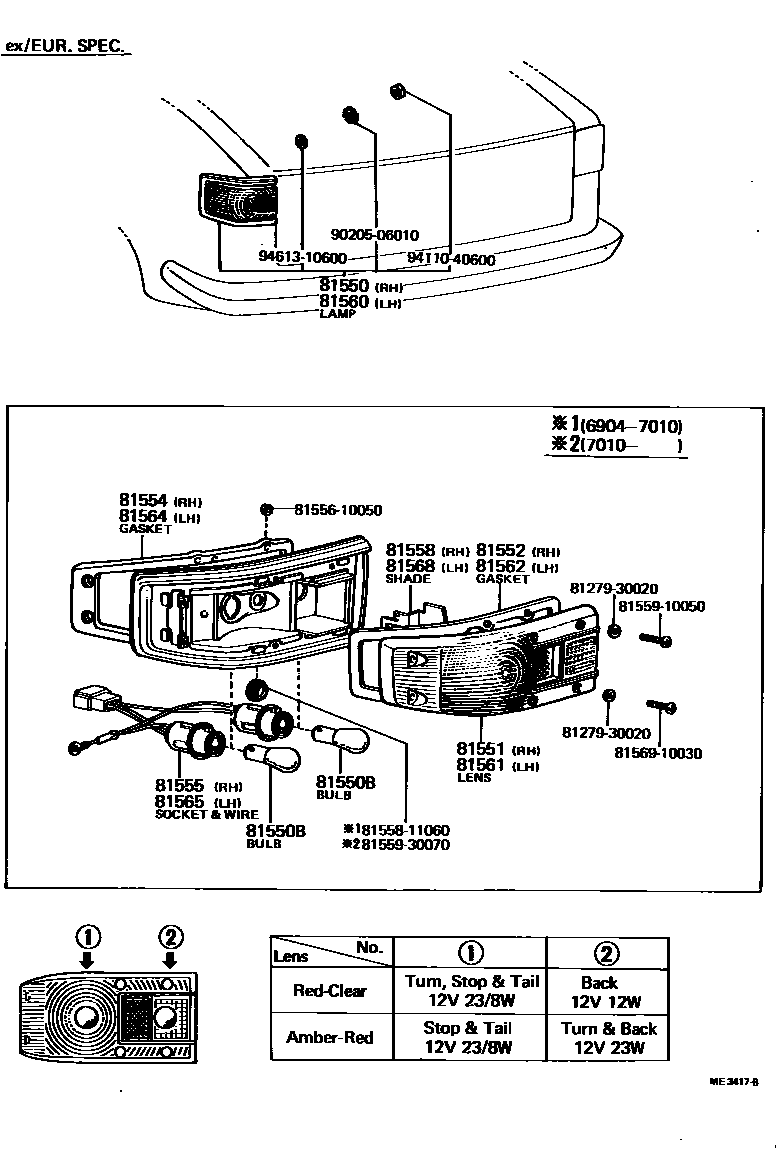

Parts diagram
81550LAMP ASSY, REAR COMBINATION, RH
main81550-10062i197201-197310
AMBER-RED-CLEAR
main81550-10063i197310-197511
AMBER-RED-CLEAR
main81550-10064i197511-197802
AMBER-RED-CLEAR
main81550-10130i197310-197404
AMBER-RED-CLEAR,EUROPE SPEC
main81550-11062i197310-197809
AMBER-RED
main81550-19135i196904-197010
RED-CLEAR
main81550-19136i197010-197112
RED-CLEAR
main81550-19145i196904-197010
RED-AMBER
main81550-19146i197010-197112
RED-AMBER
main81550-19165i196904-197112
RED
main81550-19176i197511-198808
AMBER-RED-CLEAR
main81550-19185i196911-197310
AMBER-RED-CLEAR
main81550-19186i197310-197511
AMBER-RED-CLEAR
main81550-19545i197010-197112
AMBER-RED,EUROPE SPEC
main81550-19565i197201-197310
AMBER-RED
81550BBULB(FOR REAR COMBINATION LAMP)
main90981-12002×2i196911-197306
12V 12W
main99132-11100×4i196911-198808
12V 10W,12V 10W
main99132-11120×2i197306-197310
12V 12W
main99132-11210×2i197201-197511
12V 21W,12V 21W
main99132-11230×2i197511-198808
12V 23W,12V 23W
main99132-21210×2i197201-198808
12V 21/5W,12V 21/5W
main99132-21230×2i196904-197112
12V 23/8W,12V 23/8W
81551LENS, REAR COMBINATION LAMP, RH
main81551-10050i196904-197010
RED-CLEAR
main81551-10051i197010-197112
RED-CLEAR
main81551-10052i197201-197310
AMBER-RED-CLEAR
main81551-10053i197310-197511
AMBER-RED-CLEAR
main81551-10054i197511-197802
AMBER-RED-CLEAR
main81551-10070i196904-197010
RED-AMBER
main81551-10071i197010-197112
RED-AMBER
main81551-10090i197010-197112
AMBER-RED,EUROPE SPEC
main81551-10130i197310-197404
AMBER-RED-CLEAR,EUROPE SPEC
main81551-11050i196904-197112
RED
main81551-11051i197201-197809
AMBER-RED
main81551-11070i196911-197310
UPR,AMBER-RED
main81551-11071i197310-198808
UPR,AMBER-RED
main81559-11070i196911-198808
LWR,CLEAR
81552GASKET, REAR COMBINATION LAMP LENS, RH
main81552-10050i196904-197112
main81552-10051i197201-197310
main81552-11050i196904-197809
main81554-10051i197310-197802
81554GASKET, REAR COMBINATION LAMP BODY, RH
main81554-10050i196904-197112
main81554-11050i196904-197809
main81554-11070i196911-198808
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
main81555-10060i196904-197112
RED-CLEAR
main81555-10061i197201-197310
main81555-10062i197310-197802
main81555-10070i196904-197112
RED-AMBER
main81555-10090i197010-197112
EUROPE SPEC
main81555-11052i197310-197809
main81555-11061i197201-197310
81558SHADE, REAR COMBINATION LAMP, NO.1 RH
main81557-10050i196904-197010
main81557-10051i197010-197112
main81557-11051i197201-197809
main81557-11070i196911-198808
main81557-87101i197010-197112
EUROPE SPEC
81560LAMP ASSY, REAR COMBINATION, LH
main81560-10042i197201-197310
AMBER-RED-CLEAR
main81560-10043i197310-197511
AMBER-RED-CLEAR
main81560-10044i197511-197802
AMBER-RED-CLEAR
main81560-10110i197310-197404
AMBER-RED-CLEAR,EUROPE SPEC
main81560-11042i197310-197809
AMBER-RED
main81560-19125i196904-197010
RED-CLEAR
main81560-19126i197010-197112
RED-CLEAR
main81560-19135i196904-197010
RED-AMBER
main81560-19136i197010-197112
RED-AMBER
main81560-19155i196904-197112
RED
main81560-19166i197511-198808
AMBER-RED-CLEAR
main81560-19175i196911-197310
AMBER-RED-CLEAR
main81560-19176i197310-197511
AMBER-RED-CLEAR
main81560-19525i197010-197112
AMBER-RED,EUROPE SPEC
main81560-19545i197201-197310
AMBER-RED
81561LENS, REAR COMBINATION LAMP, LH
main81551-11070i196911-197310
UPR,AMBER-RED
main81551-11071i197310-198808
UPR,AMBER-RED
main81559-11070i197707-198808
LWR,CLEAR
main81561-10030i196904-197010
RED-CLEAR
main81561-10031i197010-197112
RED-CLEAR
main81561-10032i197201-197310
AMBER-RED-CLEAR
main81561-10033i197310-197511
AMBER-RED-CLEAR
main81561-10034i197511-197802
AMBER-RED-CLEAR
main81561-10050i196904-197010
RED-AMBER
main81561-10051i197010-197112
RED-AMBER
main81561-10070i197010-197112
AMBER-RED,EUROPE SPEC
main81561-10110i197310-197404
AMBER-RED-CLEAR,EUROPE SPEC
main81561-11030i196904-197112
RED
main81561-11031i197201-197809
AMBER-RED
81562GASKET, REAR COMBINATION LAMP LENS, LH
main81552-10050i196904-197112
main81552-10051i197201-197310
main81552-11050i196904-197809
main81564-10031i197310-197802
81564GASKET, REAR COMBINATION LAMP BODY, LH
main81554-11050i196904-197809
main81554-11070i196911-198808
main81564-10030i196904-197112
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
main81555-10052i197310-197809
main81555-10060i196904-197112
RED-CLEAR
main81555-10070i196904-197112
RED-AMBER
main81555-10090i197010-197112
EUROPE SPEC
main81555-11061i197201-197310
main81565-10040i197201-197310
main81565-10042i197310-197802
81568SHADE, REAR COMBINATION LAMP, NO.1 LH
main81557-11070i196911-198808
main81567-10030i196904-197010
main81567-10031i197010-197112
main81567-11031i197201-197809
main81567-87101i197010-197112
EUROPE SPEC
8127930020WASHER, SIDE TURN SIGNAL LAMP
main81279-30020
8155610050RIM, REAR COMBINATION LAMP, RH
main81556-10050
8155811060SHADE, REAR COMBINATION LAMP, NO.1 RH
main81558-11060
8155910050MOULDING, REAR COMBINATION LAMP, RH
main81559-10050
8155930070MOULDING, REAR COMBINATION LAMP, RH
main81559-30070
8156910030MOULDING, REAR COMBINATION LAMP, LH
main81569-10030
9020506010
main90205-06010
9411040600
main94110-40600
9461310600
main94613-10600

22 parts on this diagram · 7 diagrams in section
