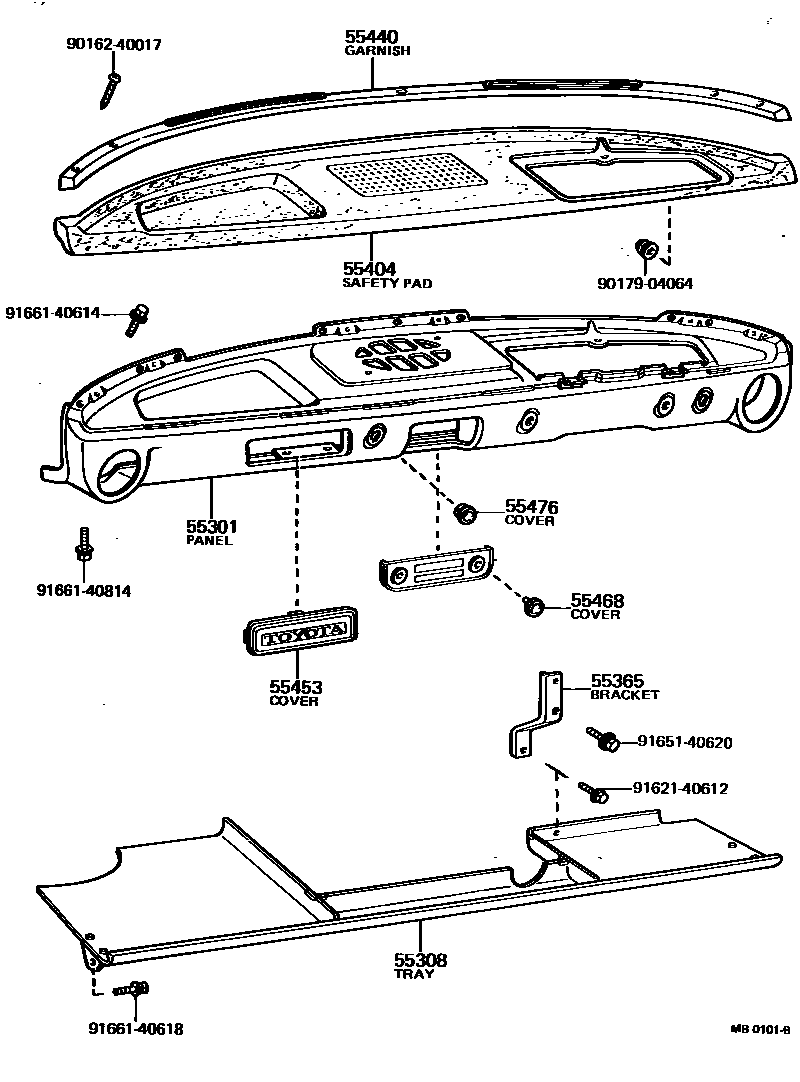

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-10070iKP3#..RHD196904-197010

main55301-10071iKP3#..RHD197010-197112

main55301-10072iKP3#..RHD197201-198808

main55301-10080iKP3#..LHD196904-197010

main55301-10081iKP3#..LHD197010-197112

main55301-10082iKP30,36..LHD197201-198808

main55301-10270iKP30,36..(SED,V)..LHD197603-197809

WEST GERMANY SPEC

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55308-10010iKP3#..RHD196904-197010

main55308-10012iKP3#..RHD197010-197112

main55308-10020iKP3#..LHD196904-197112

55365BRACKET, INSTRUMENT PANEL UNDER TRAY

main55365-10010iKP3#..RHD196904-197010

main55365-10020iKP3#..LHD196904-197010

main55365-10021iKP3#..LHD197010-197112

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55404-10030iKP3#..RHD196904-197010

main55404-10031iKP3#..RHD197010-198808

main55404-10040iKP3#..LHD196904-197010

main55404-10041iKP30,36..LHD197010-198808

55440GARNISH, INSTRUMENT PANEL, CENTER

main55443-10020iKP3#..RHD197010-198808

main55443-10030iKP30,36..LHD197010-198808

main55444-10020iKP3#196904-197010

55453COVER, RADIO TUNER OPENING

main55463-10020iKP3#196904-197010

main55463-10021iKP3#197010-198808

55468COVER, HEATER SWITCH HOLE

main55468-10020iKP3#196904-197010

main55468-10021iKP3#197010-198808

55476COVER, CIGARETTE LIGHTER HOLE

main55476-20021iKP3#196904-197010

main55477-10010iKP3#197010-198808

9016240017

main90162-40017

9017904064

main90179-04064

9162140612

main91621-40612

9165140620

main91651-40620

9166140614

main91661-40614

9166140618

main91661-40618

9166140814

main91661-40814

15 parts on this diagram · 4 diagrams in section
